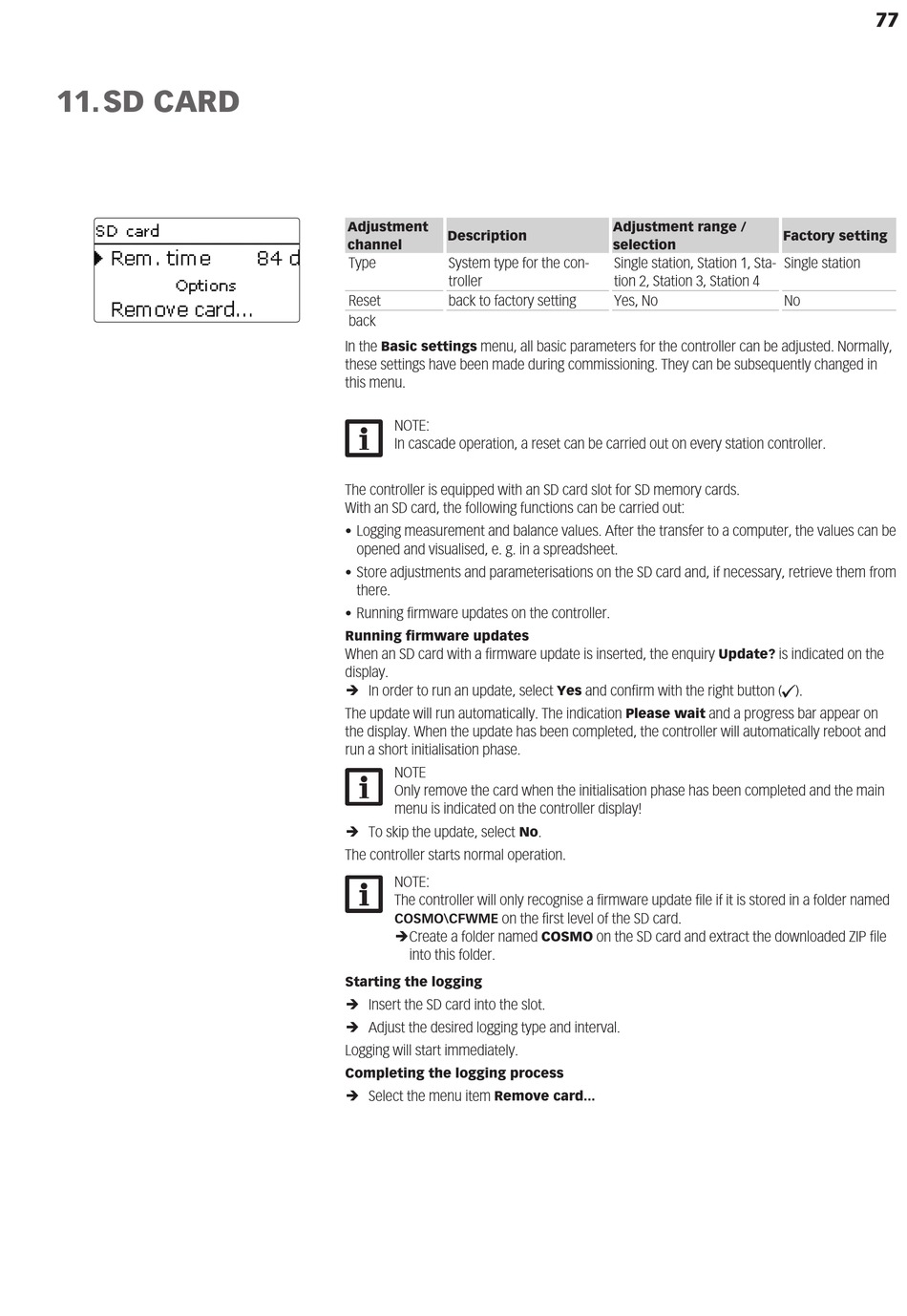

11. SD CARD
Adjustment
Description
channel
Type System type for the con-
troller
Reset back to factory setting
back
In the Basic settings menu, all basic parameters for the controller can be adjusted. Normally,
these settings have been made during commissioning. They can be subsequently changed in
this menu.
NOTE:
In cascade operation, a reset can be carried out on every station controller.
The controller is equipped with an SD card slot for SD memory cards.
With an SD card, the following functions can be carried out:
• Logging measurement and balance values. After the transfer to a computer, the values can be
opened and visualised, e. g. in a spreadsheet.
• Store adjustments and parameterisations on the SD card and, if necessary, retrieve them from
there.
• Running firmware updates on the controller.
Running firmware updates
When an SD card with a firmware update is inserted, the enquiry Update? is indicated on the
display.
Î In order to run an update, select Yes and confirm with the right button (✓).
The update will run automatically. The indication Please wait and a progress bar appear on
the display. When the update has been completed, the controller will automatically reboot and
run a short initialisation phase.
NOTE
Only remove the card when the initialisation phase has been completed and the main
menu is indicated on the controller display!
Î To skip the update, select No.
The controller starts normal operation.
NOTE:
The controller will only recognise a firmware update file if it is stored in a folder named
COSMO\CFWME on the first level of the SD card.
ÎCreate a folder named COSMO on the SD card and extract the downloaded ZIP file
into this folder.
Starting the logging
Î Insert the SD card into the slot.
Î Adjust the desired logging type and interval.
Logging will start immediately.
Completing the logging process
Î Select the menu item Remove card...
Adjustment range /
Factory setting
selection
Single station, Station 1, Sta-
tion 2, Station 3, Station 4
Yes, No
77
Single station
No
