9. OPTIONAL FUNCTIONS
NOTE:
The controller uses the sensor input S4 for measuring the temperature at the store
sensor.
The 3-port valve has to be mounted in a way so that the flow direction is towards the
lower store zone when the valve is without current. In order to protect the stratification
in the upper store zone, the store sensor has to be mounted in the middle store zone.
NOTE:
In cascade operation, the stratified return valve has to be connected to R2 of station 2.
Blocking protection

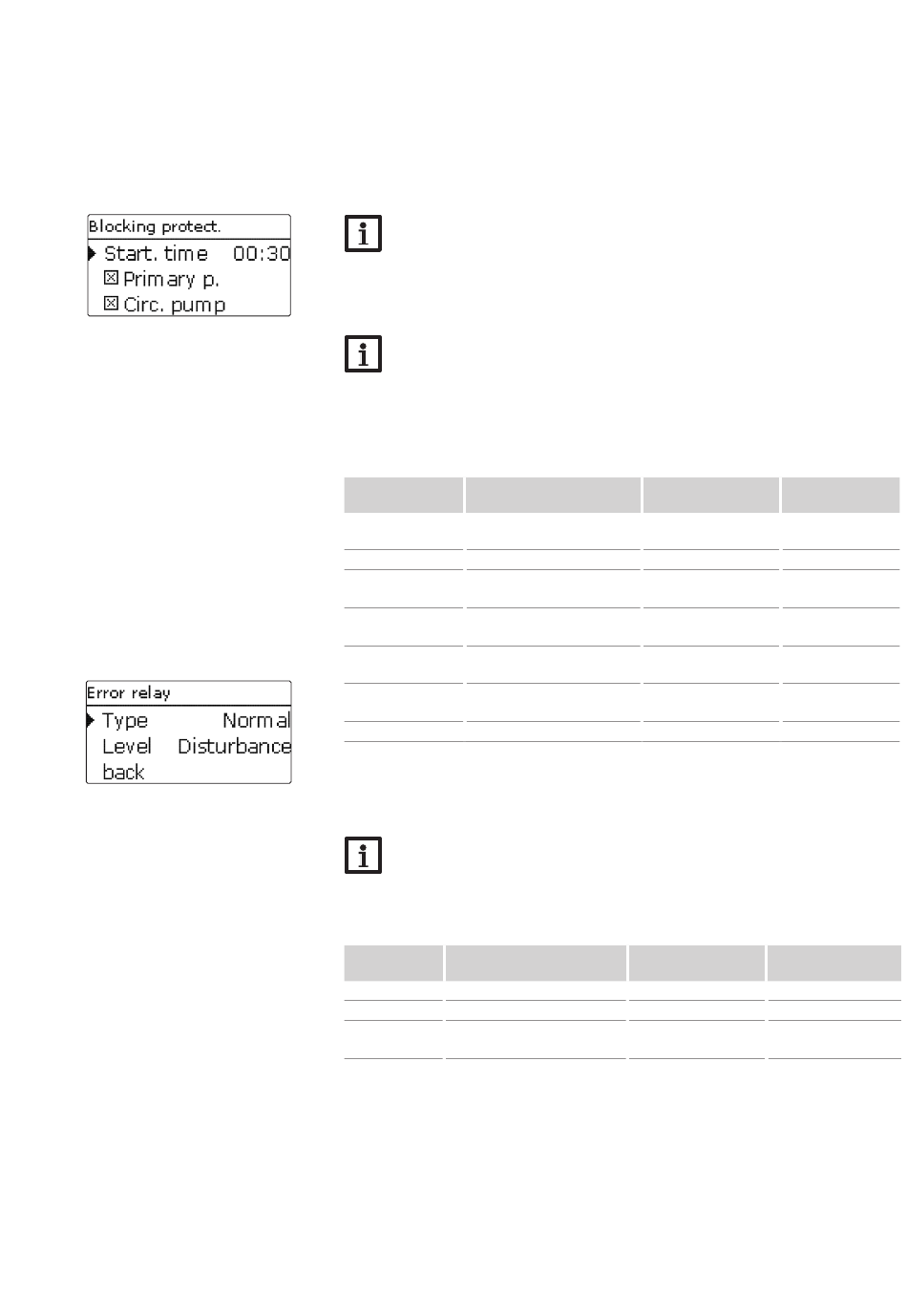

Main menu / Opt. functions / Blocking protect.
Adjustment
Description
channel
Blocking protect. Activation of the function
Start. time Starting time of the function
Blocking protection primary
Primary p.
pump
Blocking protection line
Line valve*
valve
Blocking protection circulati-
Circ. pump
on pump
Blocking protection stratified
Stratified return
return valve
back
* Available for System type Station 1 only
The Blocking protection function can be used for protecting the selected pumps and valves
against blocking after a standstill. The blocking protection will be carried out for the relays selected
one after the other each day at the adjusted Starting time.
NOTE:
In cascade operation, the blocking protection will be carried out for all stations succes-
sively.
Error relay
Hauptmenü / Wahlfunktionen / Fehlerrelais
Adjustment
Description
channel
Error relay Activation of the function
Type Error relay type
Level Error category of the message
back
Adjustment range /
Factory setting
selection
Yes, No No
00:00 ... 23:50 00:30
Yes, No Yes
Yes, No Yes
Yes, No Yes
Yes, No Yes
Adjustment range /
Factory setting
selection
Yes, No No
Inverted, Normal, Off Off
Disturb., Warning,
Disturbance
Note
