1.1 ELECTRICAL INSTALLATION AND
WIRING (Tab. D, E, pag. 11-12)
IMPORTANT!

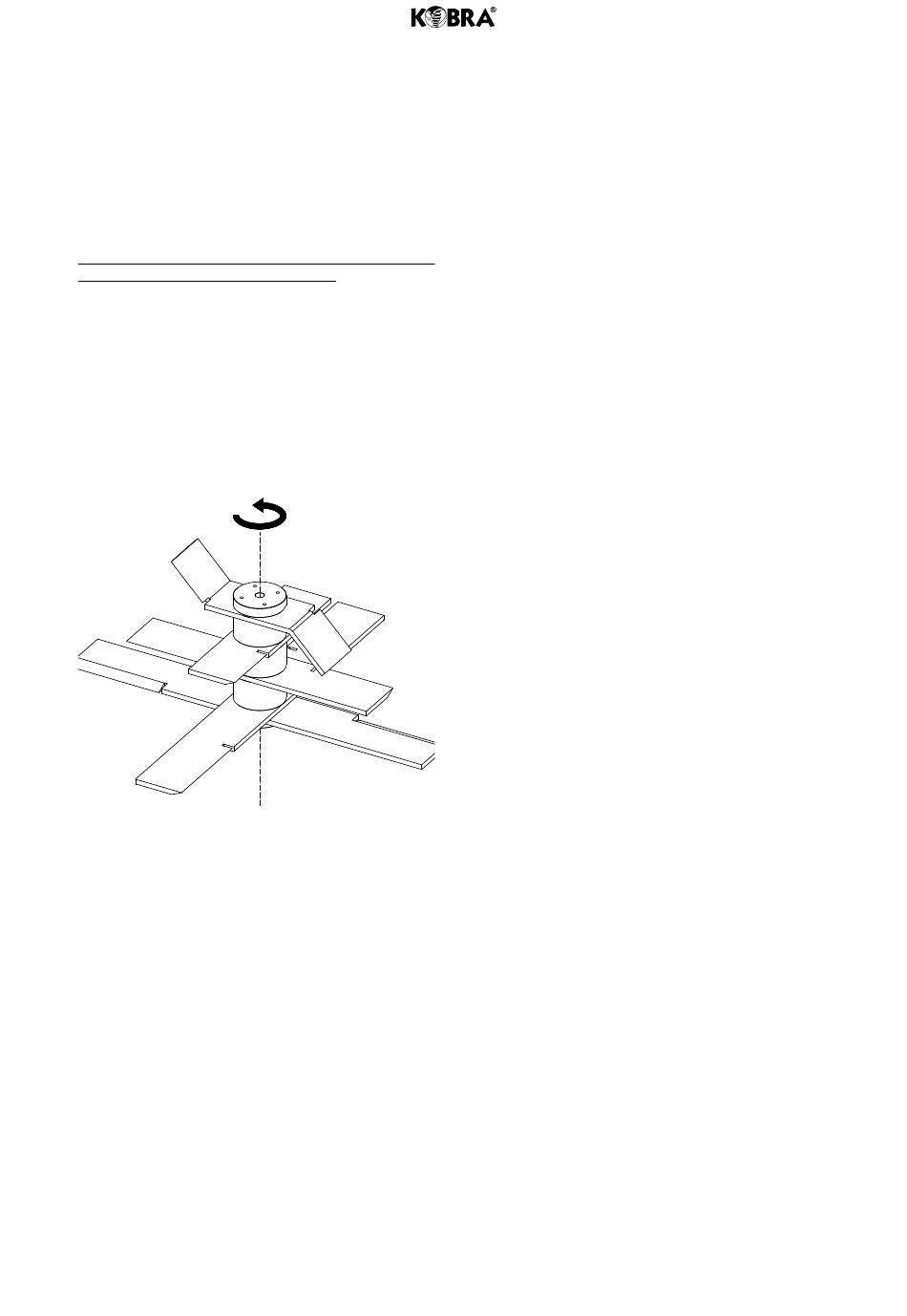

After the machine is connected to the main power
supply it is required to check If blades are moving with
a COUNTER-CLOCK-WISE ROTATION (when looking from
the top of the blades).
WARNING- DANGER! This operation must be performed
by following carefully these procedures:
Turn the main switch (U) [Fig.11] into "I" position
•
Press the START button (D) [Fig.6] and after few
•
seconds press the STOP button (E) [Fig.6]
Press the emergency button (A) [Fig.6] and lock it by
•
taking its key out.
Remove immediately the plastic side cover (M)
•
[Fig.8] by opening its lock with the standard key
delivered with the Cyclone.
Open the shredding chamber and check sense of
•
rotation of the blades.
DO NOT ENTER THE SHREDDING CHAMBER WITH YOUR
HANDS OR ANY PART OF THE BODY.DO NOT TOUCH THE
BLADES !
From outside the shredding chamber it is now possible
to check the rotation of the blades of the Cyclone (which
should still be rotating due to the starting momentum).
If rotation of the blades is clock-wise the electrical
connection to the main power supply must be changed
by switching the position of the three phase wires R-S-T.
The Turbine/Cyclone system cannot operate if rotation is
clock-wise and no material can be shredded.
Make sure that ROTATION OF THE BLADES IS COUNTER-
CLOCK-WISE and make sure that THE MAIN POWER
SUPPLY SWITCH OF THE BUILDING ALLOWS THE SUPPLY
OF THE MAXIMUM ELECTRICAL POWER TO THE TWO
MOTORS OF THE CYCLONE (POWER=6KW or 8HP).
KOBRA Cyclone
1.2 PLASTIC WASTE BAG (Tab. D, pag. 11)
The plastic waste bag is a key component of the Cyclone.
The plastic bag is directly integrated in the Turbine/
Cyclone air closed circuit with the main function to
collect the shredded material.
The plastic bag is manufactured to withstand the air
•
pressure of the turbine.
The Plastic bag is located in the rear side of the
•
machine.
Open rear doors (4) [Fig.9] to access to the plastic bag.
•
The plastic bag is sealed mounted on the terminal
•
of the Cyclone through a metal ring with a hinge (N)
[Fig.9].
The plastic bag can be removed from the machine
•
through the integrated trolley (Q) [Fig.9].
The weight of the plastic bag when full depends on
•
the security level (screen) installed in the machine
and on the type of material which is being shredded.
Plastic waste bag level is monitored by an electronic
•
control system (electronic eyes).
1.3 VACUUM SYSTEM FILTER BAG
(Tab. B, D, F, pag. 9, 11, 13)
The Cyclone is equipped with a dedicated motor which
provides the machine with a vacuum system designed to
mantain clean shredding operations.The vacuum system
collects the dust that may spread out from the shredding
chamber when shredding of paper or carton is performed.
The dust is collected in the bag filter located in a
•
dedicated housing in the rear of the machine;
[Fig.9] To access the filter bag open rear doors (4),
•
remove plastic waste bag (R) through the integrated
trolley (Q), remove blocking pins (7) [Fig.3] before
moving the trolley with the plastic bag on it.
[Fig.14,15] Open lock of the of the filter bag panel
•
(P) with the standard Cyclone key and open filter bag
panel. It is now possible to check if filter bag is full
and needs to be replaced.
To replace filter bag:
Remove filter by pulling the carton fixing flange of
•
the filter off the vacuum tube;
Position the new filter bag into its housing and
•
gently insert and push the carton flange completely
into the vacuum tube.
Close filter bag panel (P) [Fig.15]. Move back plastic
•
bag trolley in its position and fix it with its blocking
pins (7) [Fig.3].
Put plastic waste bag in place around the cyclone.
•
Filter (X) [Fig. 15] should be removed every ten hours
•
of operation.Place filter in a plastic bag.Close the
bag and shake it to remove the paper dust from the
filter.Put back filter in its original position.
Close back doors of the Cyclone.
•
