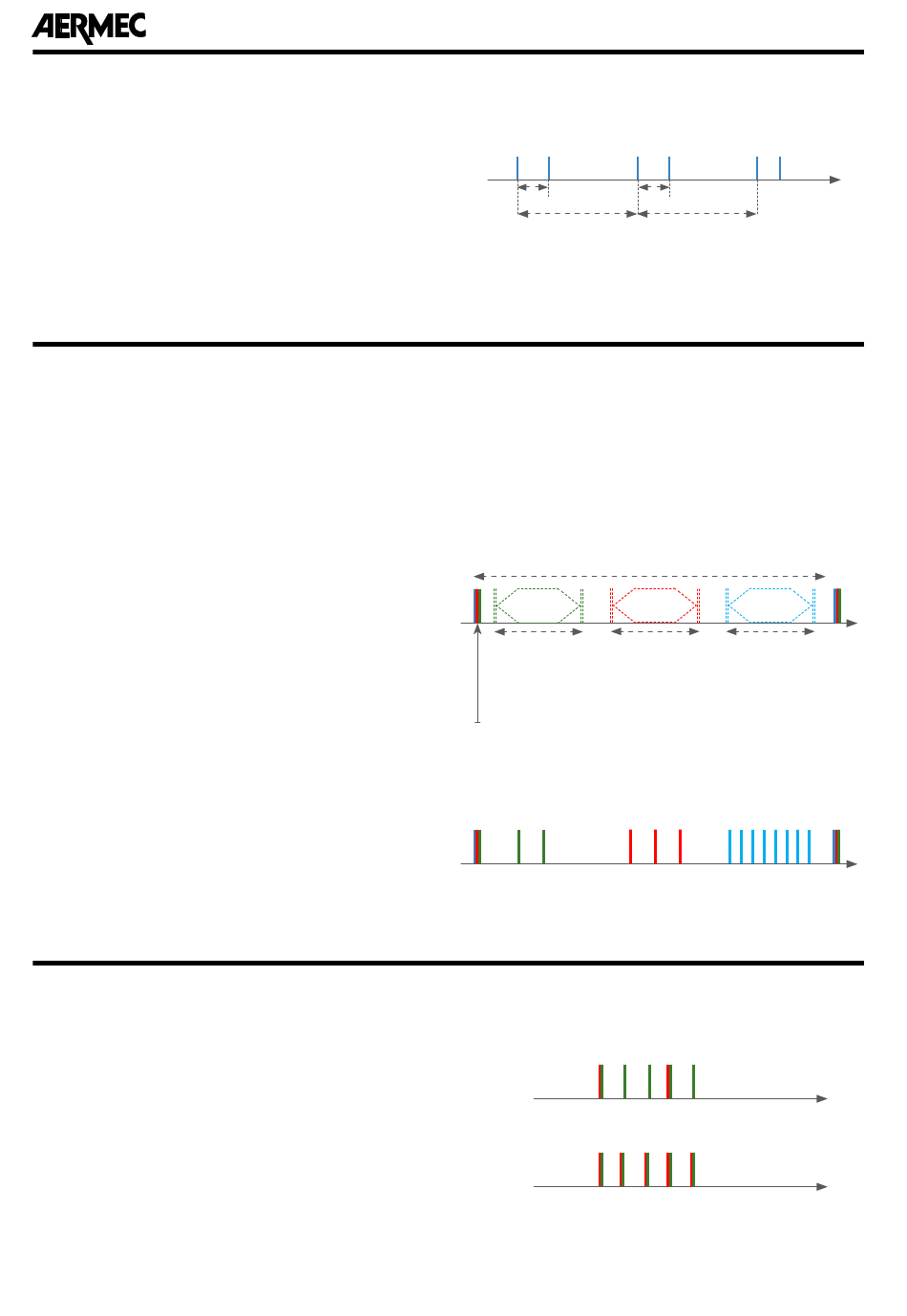

SELF ROUTING FEATURE ON DISPLAY

If paired to thermostats VMF-E19/E19I, T-TOUCH the VMF-RIC receiver
might be involved i the self-routing function. This function can be acti-
vated through specific commands sent through the supervision serial
connection of the thermostats. The routing procedure is displayed by
the VMF-RIC with the blue LED blinking, see Picture here:
In order to pair the serial address to the thermostat and close the rout-
ing procedure, commands for changing the operating mode must be
sent via the VMF-IR (pressing the MODE button). At the end of the rout-
ing procedure, the VMF-RIC starts displaying the paired serial address
as described in the following paragraph

SERIAL ADDRESS DISPLAYS

The VMF-RIC interface allows the thermostat it is connected to display
the Modbus address associated to the controller.
This display may occur in one of the following cases:
• End of the thermostat routing procedure
• Overriding the ModBus address display
For correct interpretation of the thermostat address, one must consider
the meaning of the different LED colours:
Green blinking → number in the hundreds
•
Red blinking → number in the tens
•
Blue blinking → number in the units
•
The address display sequence is as follows:
Example of display sequence for address 239:

ALARM DISPLAYS

If connected to the thermostats designated for controlling the fan coils
or cold beams, the VMF-RIC interface displays the following alarms:
13
A V M F R I C U J 2 3 1 1 5 5 8 0 2 0 0 _ 0 1
0.2 S
1.2 S
MODBUS SERIAL ADDRESS DISPLAY SEQUENCE
Green blinking Red blinking
sequence to indi- sequence to indi-
cate the digit in cate the digit in
the hundreds the tens
Blue-red-green blinking indicating the start of the display sequence.
INVERTER ALARM TRIGGERED
COMMUNICATION ERROR WITH THE THERMOSTAT
TIME
0.2 S
Blue blinking
sequence to indi-
cate the digit in
the units
TIME
TIME
TIME
TIME
