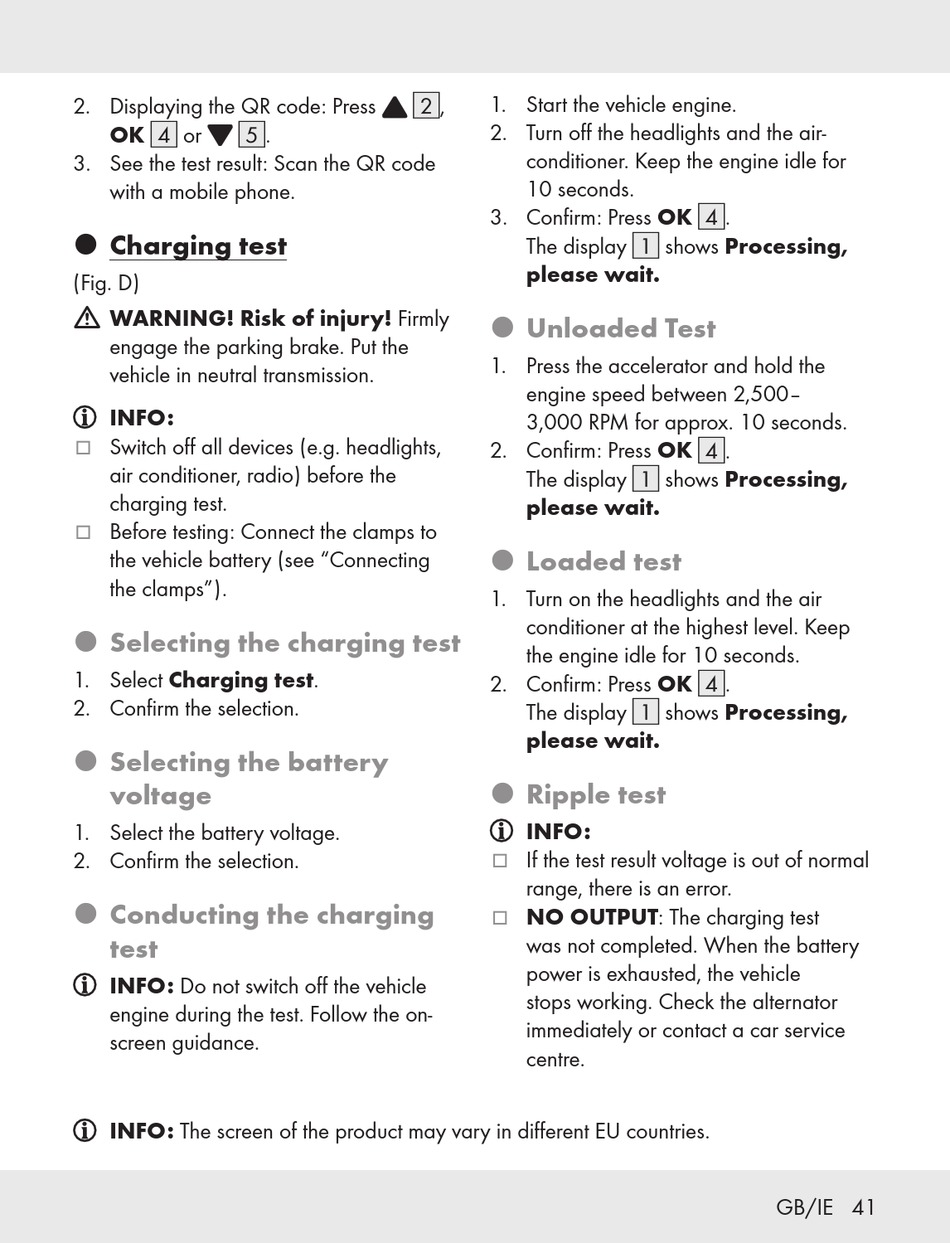

2. Displaying the QR code: Press
OK
or
[ 4 ] 5 ] [
3. See the test result: Scan the QR code
with a mobile phone.
˜ Charging test
(Fig. D)
m WARNING! Risk of injury! Firmly
engage the parking brake. Put the
vehicle in neutral transmission.
INFO:
Switch off all devices (e.g. headlights,
o
air conditioner, radio) before the
charging test.
Before testing: Connect the clamps to
o
the vehicle battery (see "Connecting
the clamps").
˜ Selecting the charging test
1. Select Charging test.
2. Confirm the selection.
˜ Selecting the battery
voltage
1. Select the battery voltage.
2. Confirm the selection.
˜ Conducting the charging
test
INFO: Do not switch off the vehicle
engine during the test. Follow the on-
screen guidance.
INFO: The screen of the product may vary in different EU countries.
,
[ 2 ]
.
1. Start the vehicle engine.
2. Turn off the headlights and the air-
conditioner. Keep the engine idle for
10 seconds.
3. Confirm: Press OK
shows Processing,
The display
1 ] [
please wait.
˜ Unloaded Test
1. Press the accelerator and hold the
engine speed between 2,500–
3,000 RPM for approx. 10 seconds.
2. Confirm: Press OK
shows Processing,
The display
[ 1 ]
please wait.
˜ Loaded test
1. Turn on the headlights and the air
conditioner at the highest level. Keep
the engine idle for 10 seconds.
2. Confirm: Press OK
shows Processing,
The display
[ 1 ]
please wait.
˜ Ripple test
INFO:
If the test result voltage is out of normal
o
range, there is an error.
NO OUTPUT: The charging test
o
was not completed. When the battery
power is exhausted, the vehicle
stops working. Check the alternator
immediately or contact a car service
centre.
.
4 ] [
.
4 ] [
.
4 ] [
GB/IE 41
