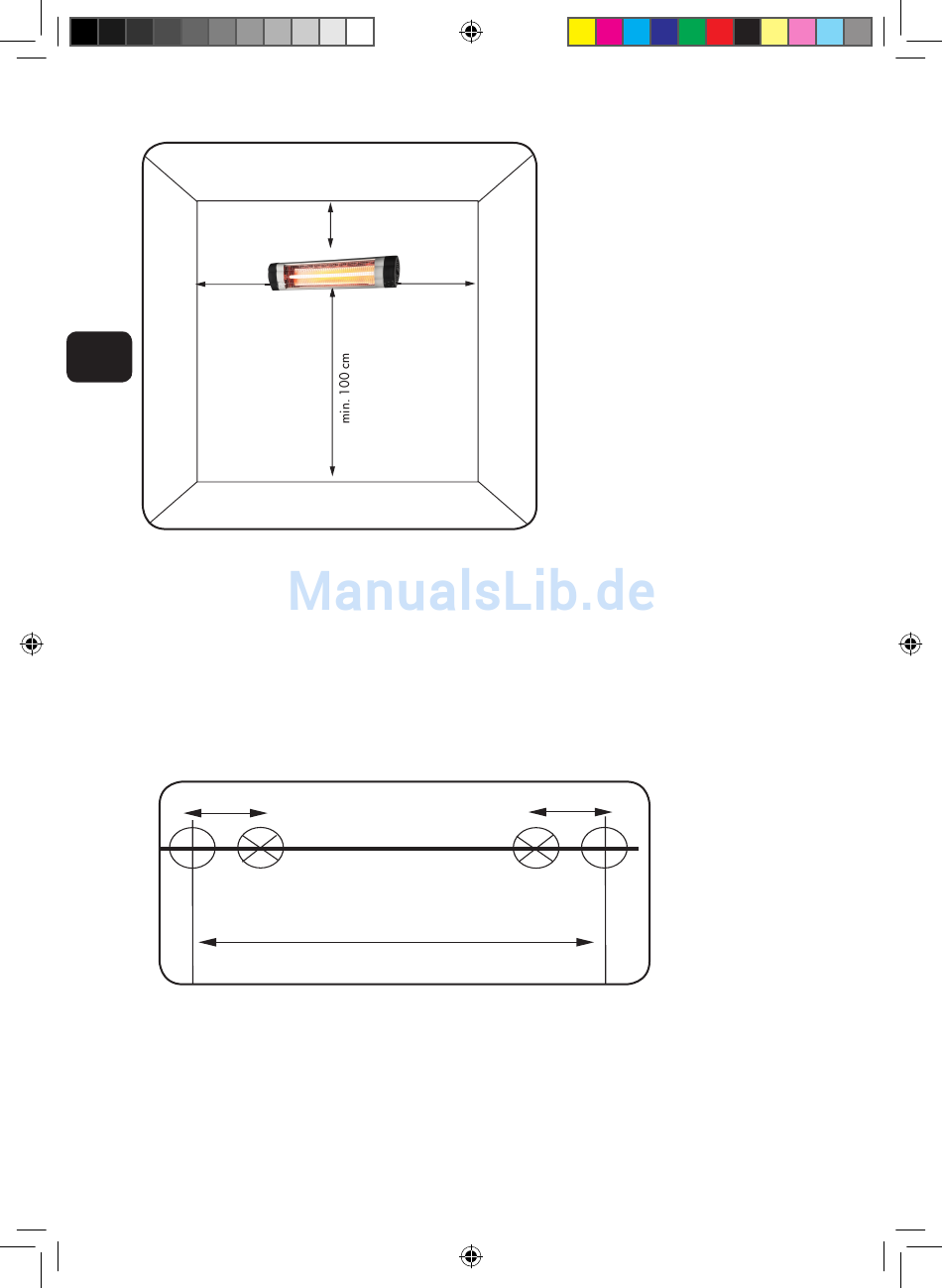

Fig. 4: Correct positioning of the radiating element

Mounting on the wall

1. Take out the accessories kit for the wall mounting (included in the scope of supply).
2. Mark the 4 holes of the fastening brackets (2 each per bracket) on the wall. Observe
the spacings in the drawing drawing for this (see Fig. 5)
3. Drill the holes (drill: Ø 8 mm) in the wall and fasten the brackets with the enclosed
screws and dowels.
35 mm
Fig. 5: Correct positioning of the radiating element
