Latch lock 807-10

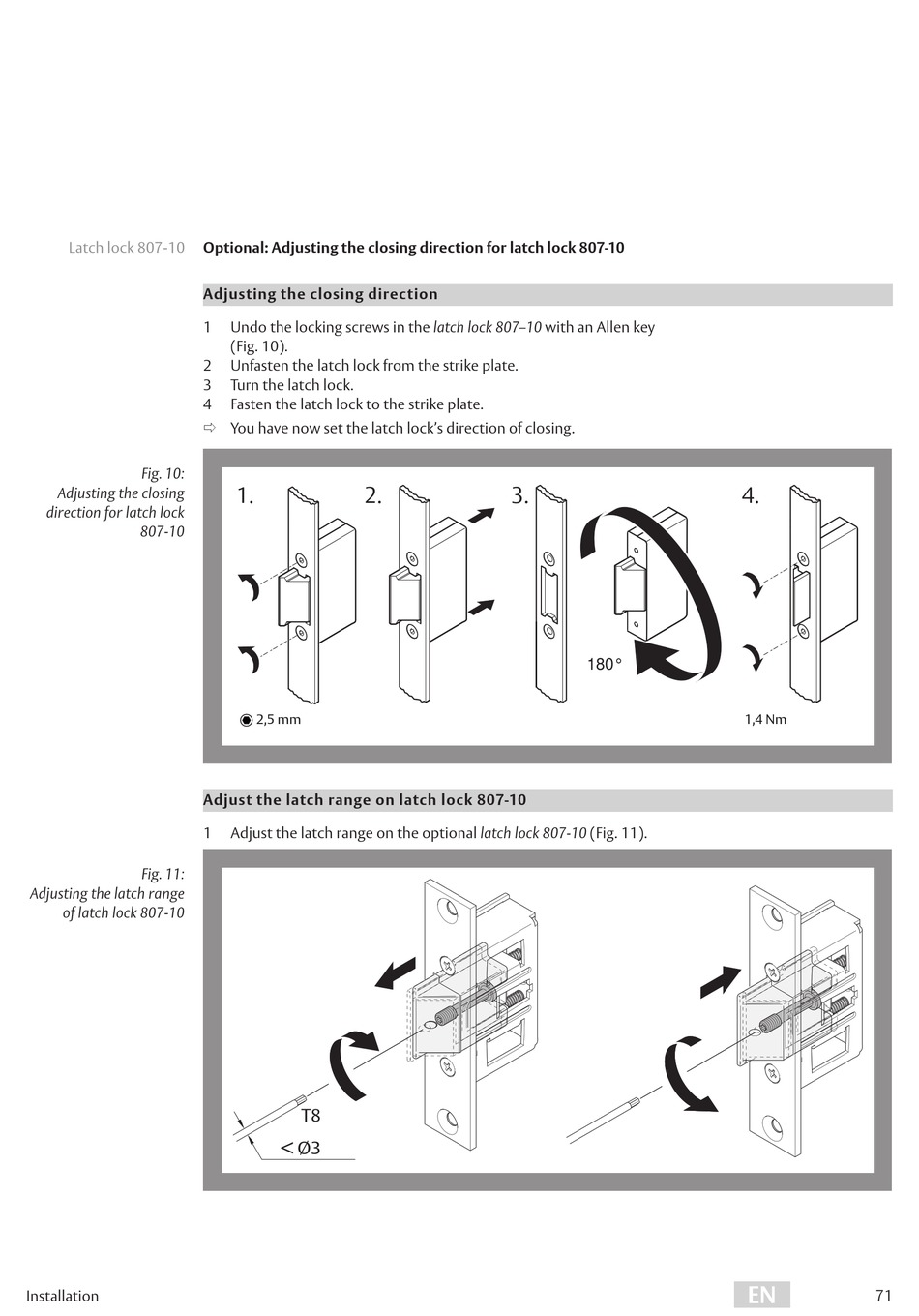

Fig. 10:
Adjusting the closing
direction for latch lock
807-10
Fig. 11:
Adjusting the latch range
of latch lock 807-10
Installation
Optional: Adjusting the closing direction for latch lock 807-10
Adjusting the closing direction
1 Undo the locking screws in the latch lock 807–10 with an Allen key
(Fig. 10).
2 Unfasten the latch lock from the strike plate.
3 Turn the latch lock.
4 Fasten the latch lock to the strike plate.
Ö You have now set the latch lock's direction of closing.
1. 2.
2,5 mm
Adjust the latch range on latch lock 807-10
1 Adjust the latch range on the optional latch lock 807-10 (Fig. 11).
T8
< Ø3
3.
180°
4.
1,4 Nm
