BWT Perla Duplex Produktdatenblatt Seite 16

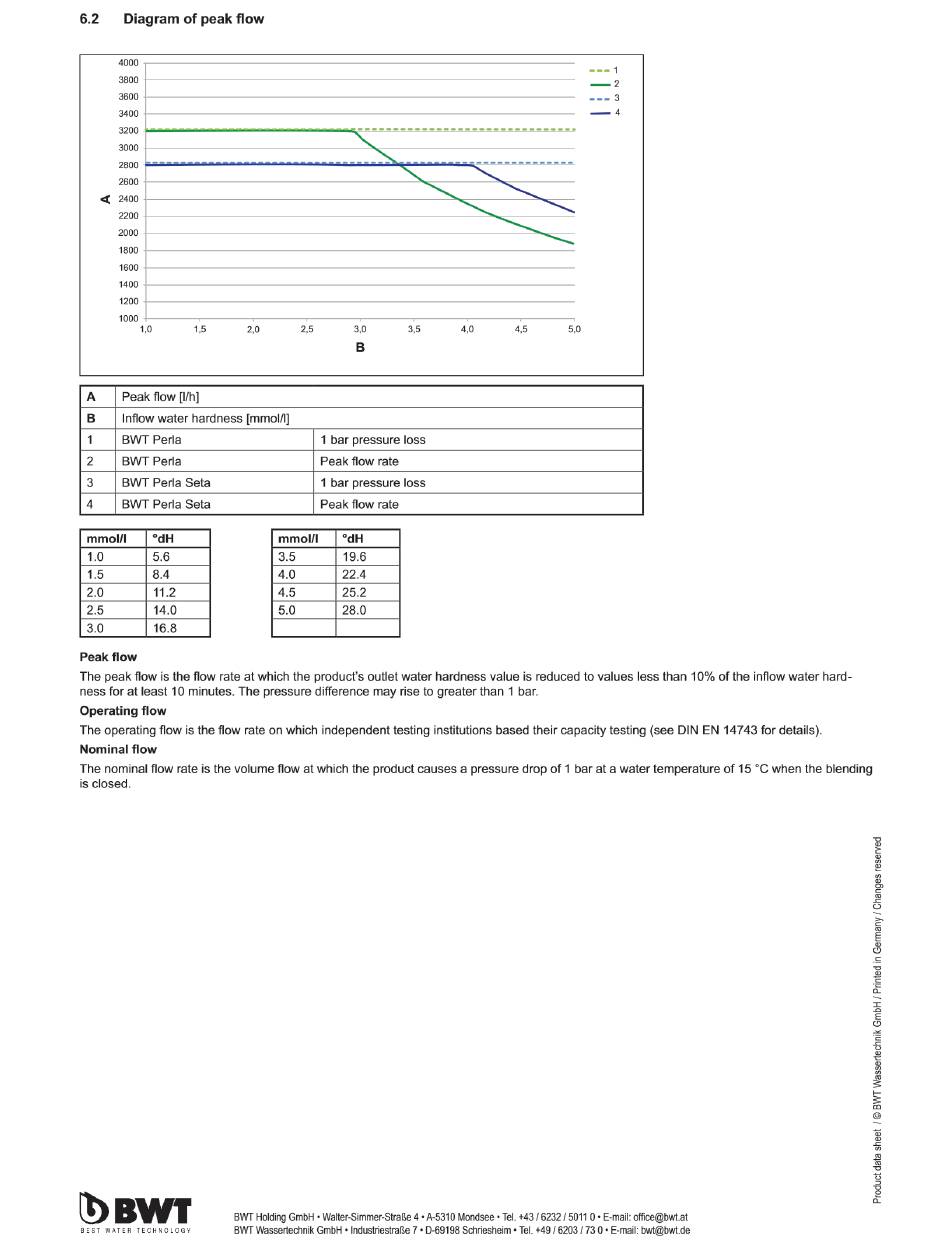

Diagram of peak flow
6.2
< 2400
1800
1600
1400
1200
1000
20
A Peak flow [l/h]
B Inflow water hardness [mmol/l]
1 BWT Perla
2 BWT Perla
3 BWT Perla Seta
4 BWT Perla Seta
mmol/l OdH
1.0 5.6
1.5 8.4
2.0 11.2
2.5 14.0
3.0 16.8
Peak flow
The peak flow is the flow rate at which the product's outlet water hardness value is reduced to values less than 10% of the inflow water hard-
ness for at least 10 minutes. The pressure difference may rise to greater than 1 bar.
Operating flow
The operating flow is the flow rate on which independent testing institutions based their capacity testing (see DIN EN 14743 for details).
Nominal flow
The nominal flow rate is the volume flow at which the product causes a pressure drop of 1 bar at a water temperature of 15 oc when the blending
is closed.
b BWT
BWTHoldingGmbH• Walter-Simmer-Straße 4 • A-5310Mondsee • Tel.+431623215011 0 • E-mail:office@bwtat
BWTWassertechnik G mbH• Industriestraße 7 • D-69198 Schriesheim • Tel.+4916203173 0 • E-mail:bwt@bwt.de
BEST WATER TECHNOLOGY
1 bar pressure loss
Peak flow rate
I bar pressure loss
Peak flow rate
mmol/l OdH
3.5 19.6
4.0 22.4
4.5 25.2
5.0 28.0
2
4
