1.0

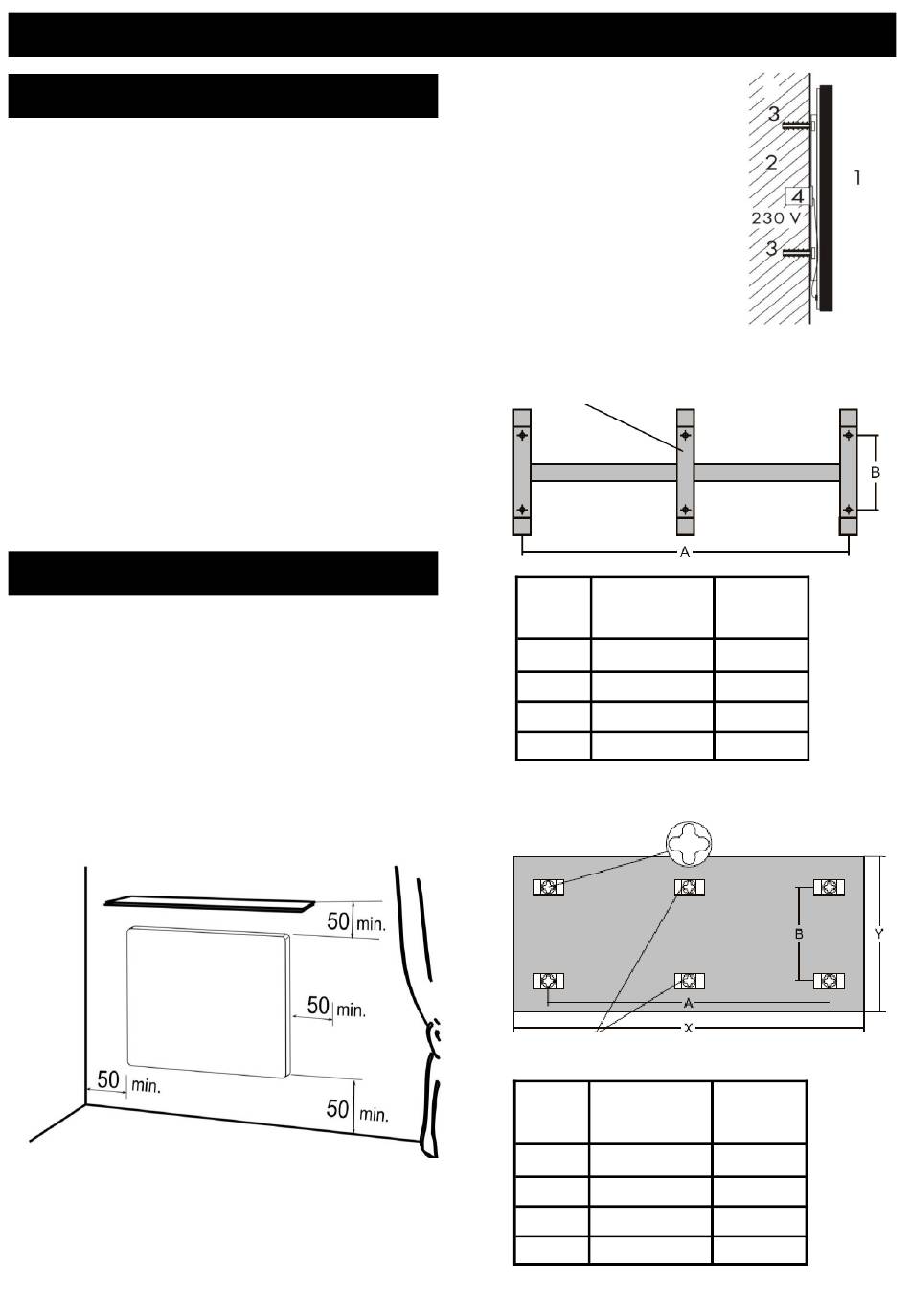

INSTALLATION INSTRUCTIONS
1.1
METHOD OF INSTALLATION
The panels are intended for fixed installation on the wall
or ceiling. Consult the manufacturer for another method
of use. Electrical installation and commissioning must be
carried out by a suitably qualified person.
Wall / ceiling mounting
▪
Place the enclosed frame on the wall/ceiling,
mark and drill the holes for the fixings
▪
Insert the fixings and fix the frame with the
appropriate number of flat head screws
▪
Slide the panel onto the frame and unscrew
the plastic rollers on the rear side of the panel
so that it is firmly backed up against the wall/
.
ceiling
▪
If the panel has to be connected to the electri-
cal wiring with IPx4 protection, this operation
must be carried out by a qualified person by
removing the plug and using a suitable electri-
cal outlet.
1.2
SPACING DISTANCES
▪
Distance of the bottom edge of the panel from the floor
must not be less than 50 mm, recommended spacing is
150 mm. Side distances, e.g. to furniture, must be at
least 50 mm. There must be a minimum of 50mm clear
space above the tip of the panel (see Fig. 4)
The space in front of the panel must be min. 500 mm
Fig. 4
Dimensions are in mm
.
.
CEILING MOUNTING FRAME
Only Ecosun 850 GS / GS Wifi
.
Only Ecosun 850 GS / GS Wifi
19
Fig. 5
1. Radiant panel
2. Wall
3. Wall plugs with screws
4. Socket
P
A
[W]
[mm]
340
300
885
500
660
600
383 / 766
850
P
X
[W]
[mm]
300
340
500
885
600
660
850
383 / 766
B
[mm]
280
115
280
280
Y
[mm]
360
190
360
360
