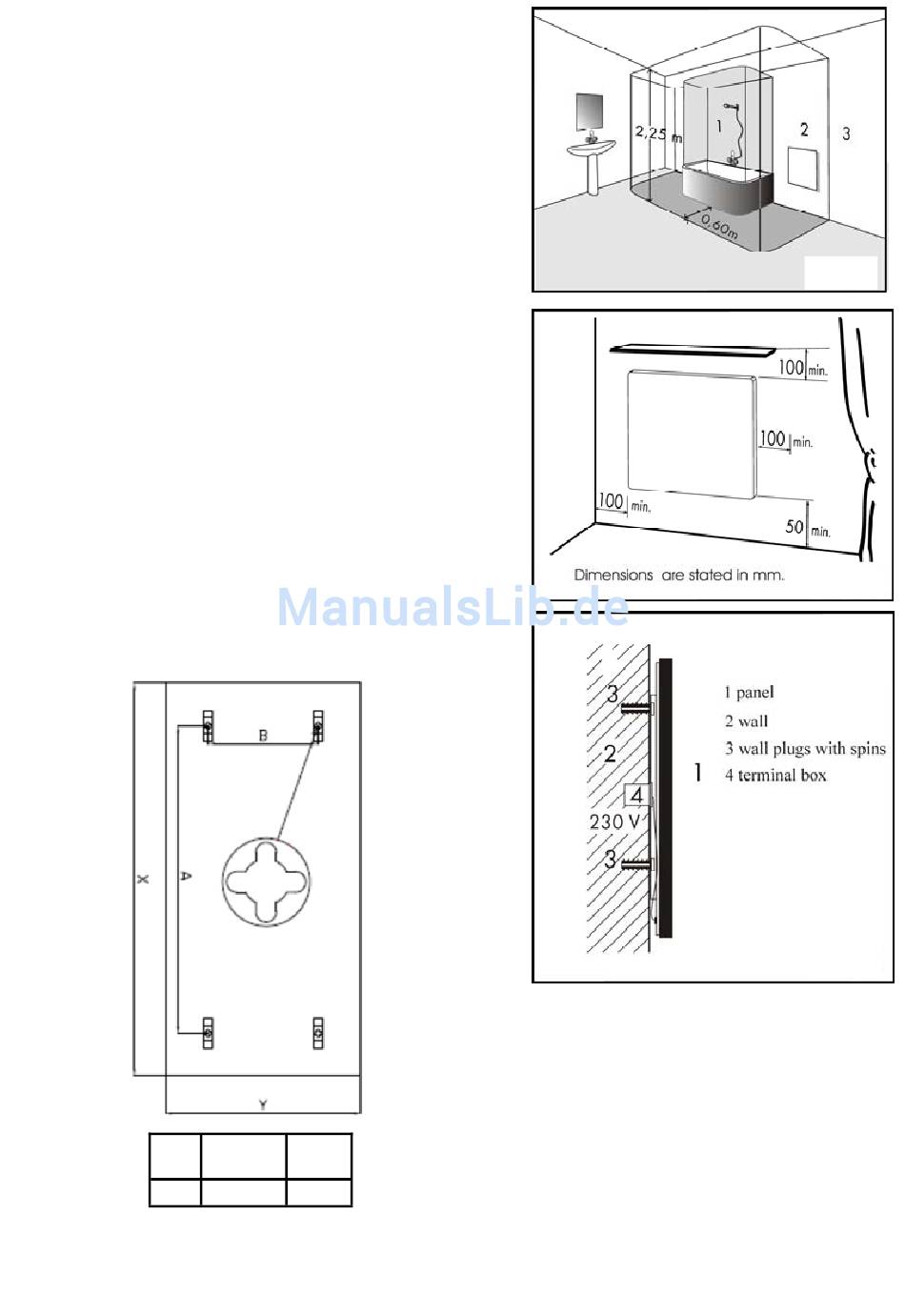

Installation instructions
Installation, electrical connection and the first commissioning is permitted to
be performed by a worker with relevant qualifications. The panels are intended
for mounting on a wall. The producer must be consulted before any other form
of installation is attempted.
Installation on the wall
•
Mark the holes according to the table, drill out the holes, insert the dowels
and drive the screw in to protrude approx. 5 mm. (Fig. 6)
•
Always hang the panel by all mounting slots!
•
Put the panel on the screws.
Clearance distances
The distance between the bottom edge of the appliance and the floor mustn't
be less than 50 mm; 150 mm is recommended. The clearance distance on the
side (e.g. from furniture) must be at least 50 mm, and 50 mm is the minimum
in the upward direction (see Fig. 3). There must be at least 50 cm of free
space in front of the panel.
In bathrooms, the panel must be installed in accordance with the HD 60364-7-
701:2007 standard and is permitted to be located in accordance with Fig. 2.
The panel is a class II appliance, with IP 44 coverage. The panel must not be
placed directly under an electric socket.
W
400
8
A
B
(mm)
(mm)
643
190
Fig. 2
Fig. 3
Fig. 4
