ELECTRICAL WIRING

The panel is supplied with a three core cable and mould-
ed plug for connection to a single phase, 230V/50Hz wall
socket. Removing the plug and shortening the supply wire
does not void the warranty
Colour marking of wires:
▪ Brown - Phase
▪ Blue - Central (working) conductor
▪ Yellow-green - Protective (earthing) conductor
When the plug is removed, the power cable is plugged
into a standardized electrical installation box (recessed
or wall-mounted), see Fig. 5. The panel may not be placed
directly under the socket
The power supply must be equipped with a device for
disconnecting from the network, where the distance of
disconnected contacts equals to min. 3 mm for all poles.
In bathrooms, the panel must be installed to conform
with local wiring regulations (section 701). The panel is a
class I appliance, IP 44 protection (does not apply to the
2.0

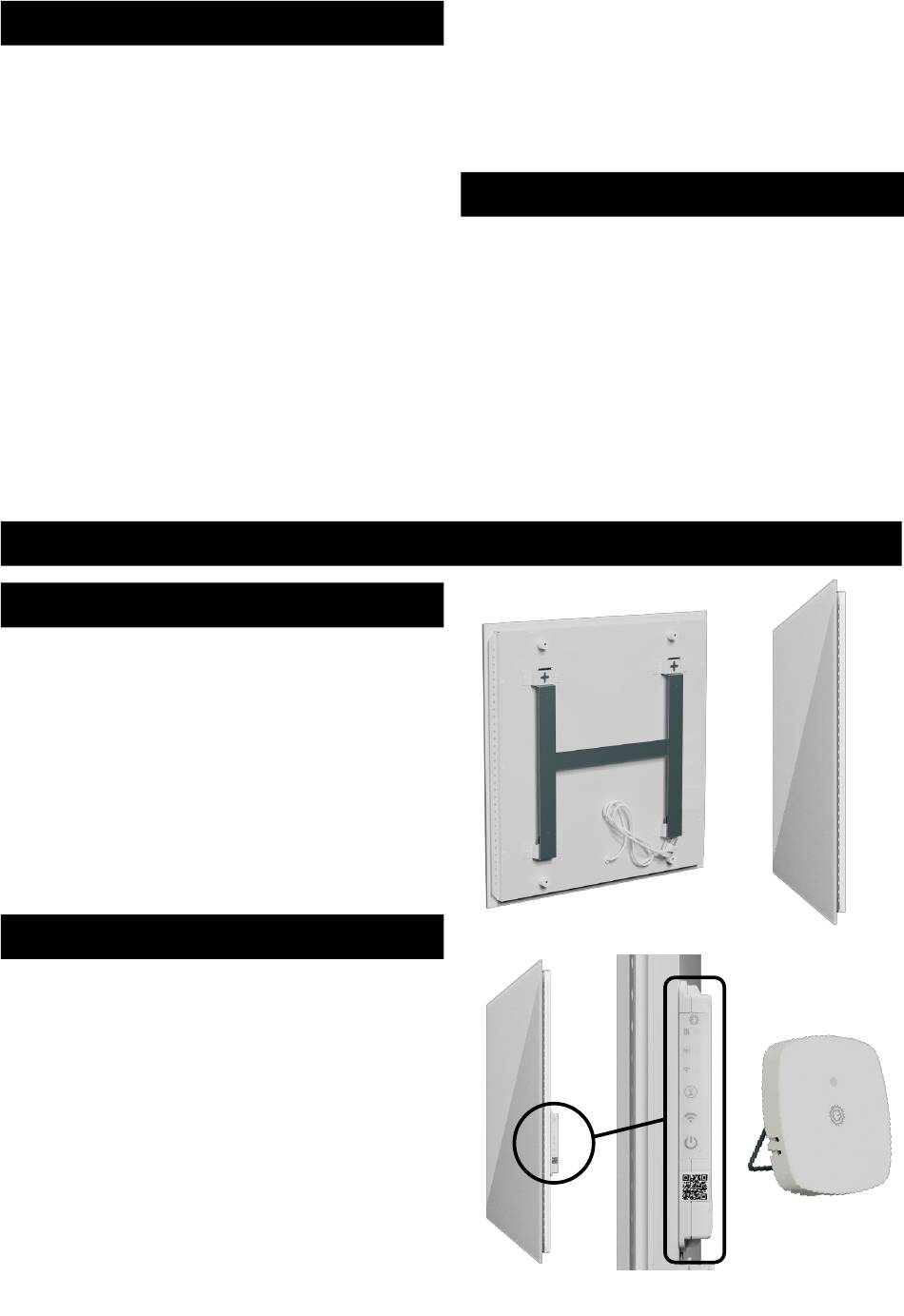

DESCRIPTION OF RADIANT PANELS

2.1

RADIANT PANEL GS

The GS radiant panel falls into the category of
controlled heaters. According to Commission
Regulation (EU) 2015/1188,
heaters must be controlled by external elec-
tronic temperature regulation in the room with
a weekly programme, which additionally con-
tains at least one of the following functions
Temperature regulation with open window detection
Remote control
Adaptively controlled switching
The panel is also equipped with a limiting ther-
mostat, ensuring its safe operation
2.2

RADIANT PANEL GS WIFI

The GS Wifi radiant panels are supplemented with a Wifi
box, enabling connection of the panel to Internet, and a
wireless temperature sensor (RF sensor) for room tem-
.
perature measurement
The Wifi box and the RF sensor are already paired from
the factory, just insert a CR 2032 battery (included in the
package) into the RF sensor for connection
The Fenix TFT Wifi mobile application, connected directly
(local mode) or via Internet, is necessary for full control of
the panel. Without the mobile application, only the Timer
mode can be started on the panel, either with the button
on the Wifi box or via the RF sensor (see sec. 3.3).
.
.
the controlled
.
).
supply cord with a plug - see sec. 1.1)
In areas with increased risk (bathrooms, wet areas), the
panel must be provided with additional protective bond-
ing. For this purpose, a screw is prepared on the back of
.
the panel
1.6
PANEL DISMANTLING/REMOVAL
Prior to dismantling, disconnect the panel from the mains
using a two-pole switch. Loosen (screw) the plastic roll-
ers pushing the panel away from the wall/ceiling. Press
the panel against the wall/ceiling and slide the panel out
of the frame - upwards for wall installation, to the side
(where open ends of the frame are facing) for ceiling
installation. When dismantling, it is necessary to discon-
nect the power cable from the socket or installation box,
and from the protective bonding (if installed)
:
