b)
According to the selected measuring range, the
device asks for programming of a) or b).

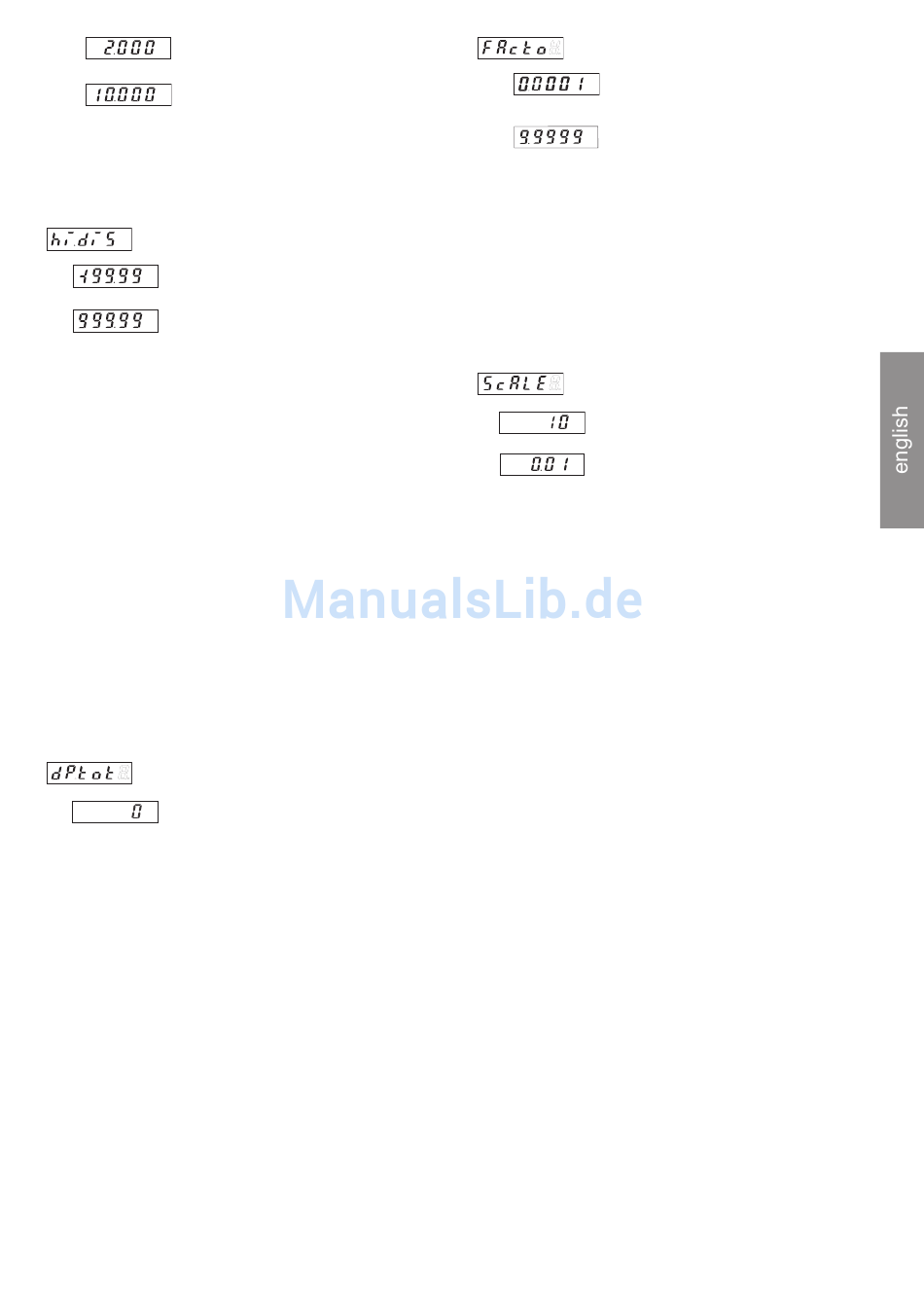

4.6 Value displayed for the maximum input signal
A display value between -19999 and 99999 can
be allocated to the highest input value. With the
left key select the decade, then use the right key
to determine the value. The decimal point adjust-
ment is taken into consideration.
4.7 Decimal point setting (adding counter)
The adding counter adds the values measured
with a reading frequency of 1 second.
As for the momentary values, the number of deci-
mals to be used to display the added value can be
defined. The number of decimals does not affect
the accuracy of the display. However, the maxi-
mum expected added value to be displayed must
be taken into account. If, as in Example 9.1, the
planned sum is 1000, one decimal can be select -
ed at the maximum.
Attention: in all cases, sufficient digits must be
reserved to allow displaying the expected added
value, in order to avoid the device acting like a
tachometer and going from "99999" to "0", loosing
the result of the measurement. If the 5-digit dis-
play proves to be insufficient, the display range
can be extended using the "Factor" (4.8) and the
"Scale" (4.9).
4.8 Factor
For an optimum matching of the measuring sig-
nal, the displayed values can be weighted by a
factor. If, for example, the momentary value is to
be displayed in a small unit like grams, but the
added total must be displayed in kilograms or
tons, define the corresponding factor (multiplier):
Minimum setting
Factory setting
Factory setting
Maximum setting
Factory setting
Select the decade with the left
key, then use the the right key
to define a factor between
0.0001 and 9.9999.
Note: the factor and the scale only affect the
adding counter. Total scale = Factor x Scale!
4.9 Scale
The scale allows extending the display range of
the adding counter (or reducing it for a very fine
adjustment).
Select the required scale
using the right key: 10, 1, 0.1
or 0.01
In Example 8.2 on page10, the tank has a capac-
ity exceeding 100000 l. Using a scale of 0.01 al-
lows displaying the sum in hectoliters. Since the
scale (multiplier) only affects the sum, the mo-
mentary throughput remains displayed in
liters/second.
Note: the factor and the scale only affect the
adding counter. Total scale = Factor x Scale!
