to switch to the next menu title.
After programming the last menu item, the pro-
gramming routine will be left and the new val-
ues will be stored by switching the menu item to
„YES". If you chose „NO", the programming
routine will be passed through once again.

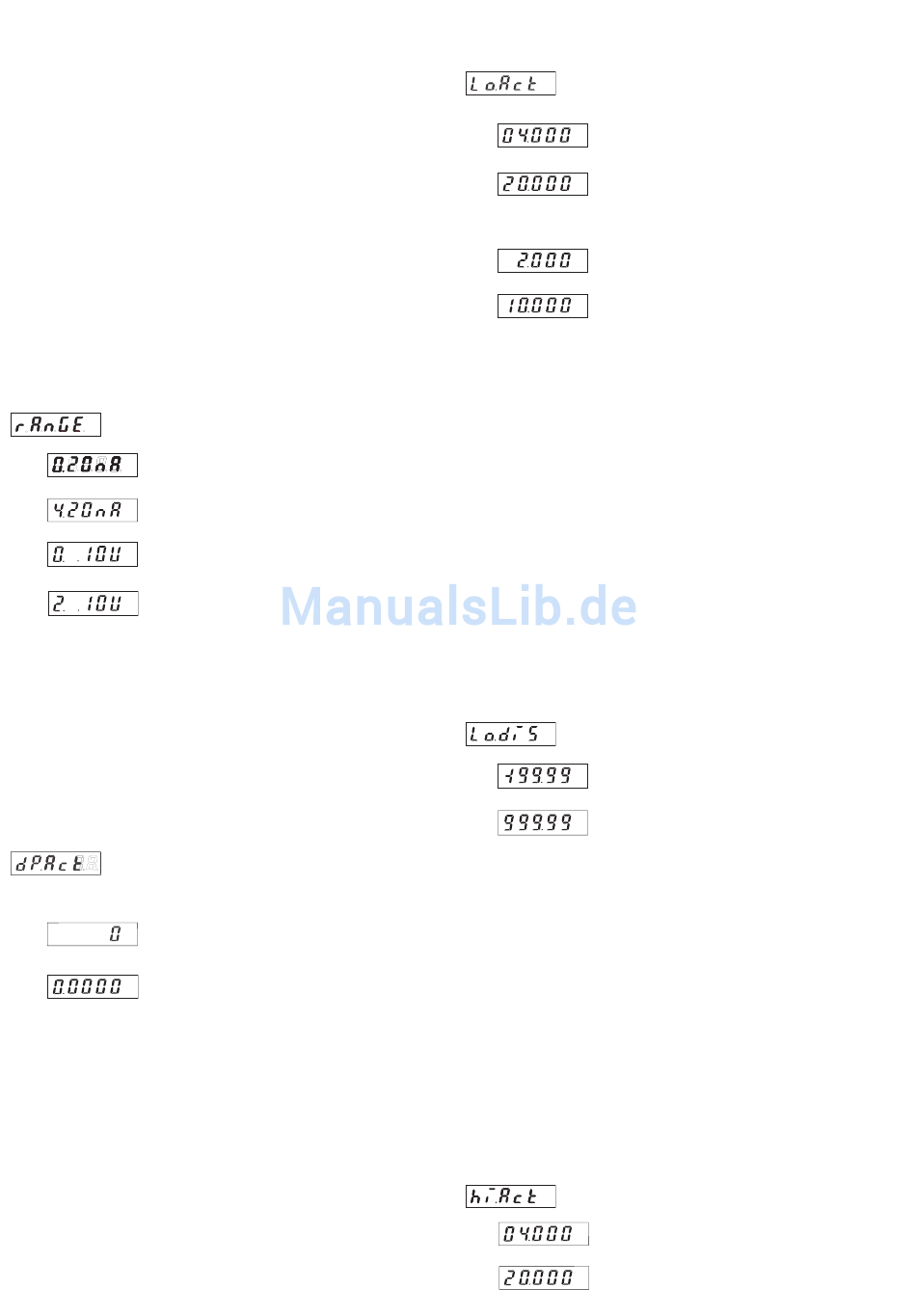

4. Programming routine
The adjustable parameters of the device are ex-
plained in the order of their appearance on the
display. Therefore the device is completely pro-
grammed after one passage of the programming
cycle. The upper display representation shows al-
ways the factory setting.
4.1 Input signal range
Press the right key to replace the factory setting
with one of the other input signal ranges.
4.2 Decimal point adjustment (current value)
This setting determines the decimal point for the
related display values (4.4 and 4.6). This setting
only determines the number of decimal digits, the
display value is not affected (no scaling).
no decimal place
0.0
0.00
0.000
0.0000
Press the right key to replace the factory setting
with one of the other possibilities.
4.3 Minimum input signal
Only for the 4..20 mA or 2..10 V measuring
ranges (this menu item is skipped with the other
ranges).
This function allows monitoring the sensor. If the
measured value falls below the minimum value
defined here, the message "lo" is displayed. The
2
0..20 mA
4..20 mA
0..10 V
2 ..10 V
one decimal place
two decimal places
three decimal places
four decimal places
sensor used is faulty. The values displayed are not
added.
a)
b)
According to the selected measuring range (4..20
mA or 2..10 V), the device asks for programming
of a) or b). With the left key select the decade,
then use the right key to determine the measure-
ment value that is to correspond to the minimum
value.
4.4 Value displayed for the minimum input signal
A display value between -19999 and 99999 can be
allocated to the lowest input value. When the dis-
play values for the lowest and the highest input
signal are defined, the system displays a display
value corresponding to the analogue measure-
ment value, as shown in Example 9.1 on page 4,
with a momentary throughput in kg/second.
With the left key select the decade, then use the
right key to determine the value, for example"0".
The decimal point adjustment is taken into consid -
eration.
4.5 Maximum input signal
Only for the 4..20 mA or 2..10 V measuring
ranges.
This function allows monitoring the sensor. If the
measured value exceeds the maximum value de-
fined here, the message "hi" is displayed. The
sensor used is faulty. The values displayed are not
added.
a
Factory setting
Maximum setting
Factory setting
Maximum setting
Factory setting
Maximum setting
Minimum setting
Factory setting
