REQUIRES
To operate your new Roadfi ghter ST you will need the following:
• 8 alkaline AA batteries e.g. No. 3426, or 12 AA battery cells e.g. No. 3621 for transmitter and a suitable charger like
the Graupner Ultramat series
• NiMH battery e.g. No. 98900 GM Power-Pack 7.2V/3600 mAh and a suitable charger like No. 6464 Minilader 3 or
Ultramat 8, No. 6411

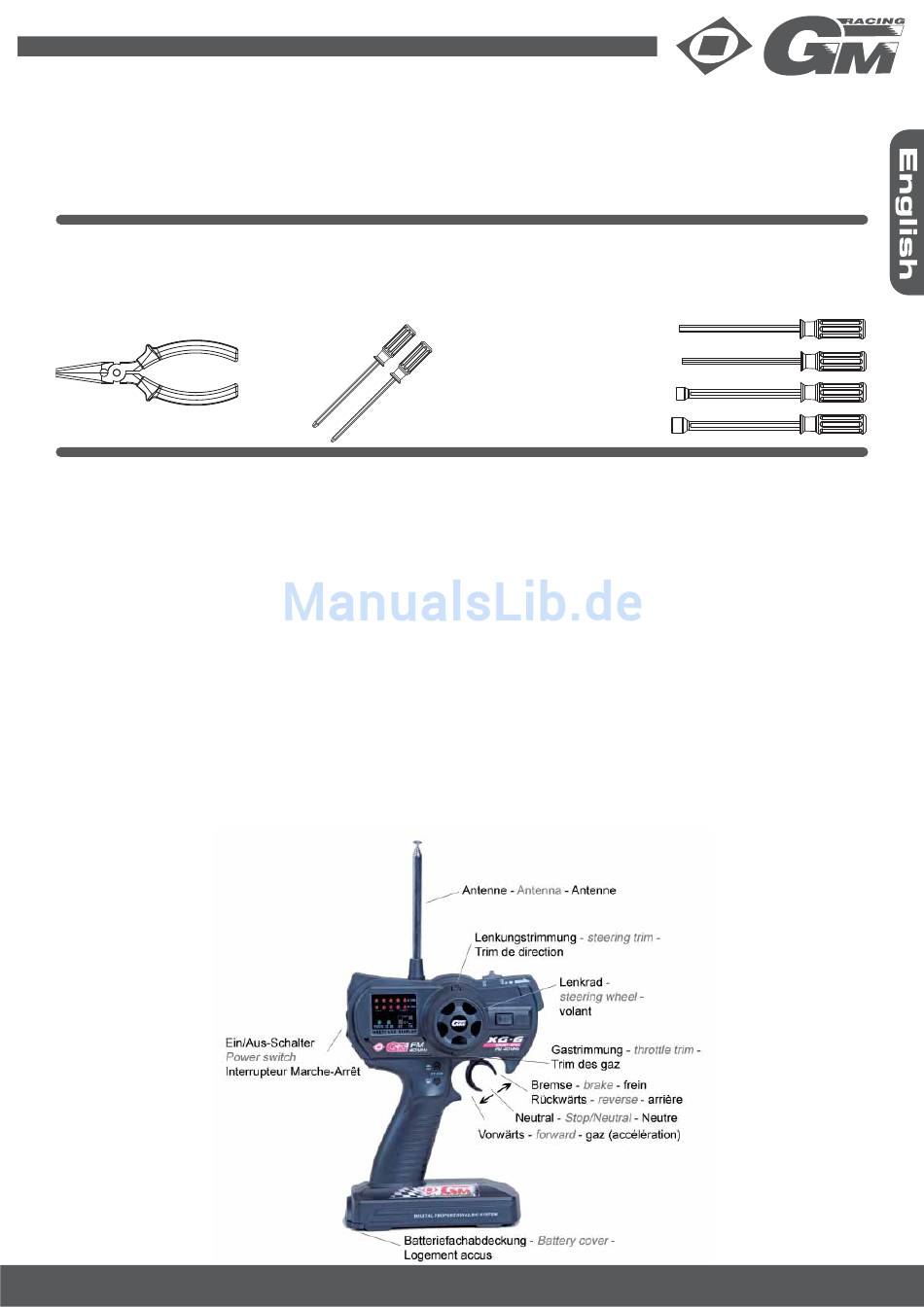

TOOLS REQUIRED

• Hex wrench with 1.5 mm, 2 mm (order No. 5775.1,5 and 5775.2), Nut driver 5.5mm and 7mm (5783.5,5 and
5783.7)
• Phillips screwdriver PH1, PH2 (5779.1 and 5779.2)
• small needle-nose pliers
Needle-nosed pliers

THE REMOTE CONTROL SYSTEM

Here you get an overview of the remote control system of the Roadfi ghter ST and its various functions and settings.
Before the fi rst trip you should be sure all of these functions and settings have read and understood.
First screw the enclosed transmitter antenna into the mounting plate at the top of the transmitter. Place 8 AA batteries in
the battery compartment of the transmitter. Pay attention to the polarity! Now push the antenna wire through the antenna
pipe and then put this into the mount at the chassis (see also page 40).
REMOTE CONTROL (TRANSMITTER)
1. On / off switch: Turns the power on/off
2. Steering wheel: Controls direction (left/right) of the model
3. Steering trim: Adjusts the "hands off" direction of the model
4. Throttle Trigger: Controls speed (forward/brake/reverse) of the model
5. Throttle Trim: Adjusts the motor speed to stop at neutral
6. Control light: indicates adequate battery power
7. Antenna: Transmits signal to the model
The remote control system of the Roadfi ghter ST is optimally adjusted by the factory. Nevertheless you should read the
following chapter, maybe slight adjustments on the remote control should be necessary. For further information to the
remote control system please refer to the enclosed XG-6 manual.
GM-Racing 90166.RTR Roadfi ghter ST Stadium Truck
Phillips-
Srewdriver
Allen key 1.5, 2 mm
PH1, PH2
Wrench 5.5, 7 mm
10
