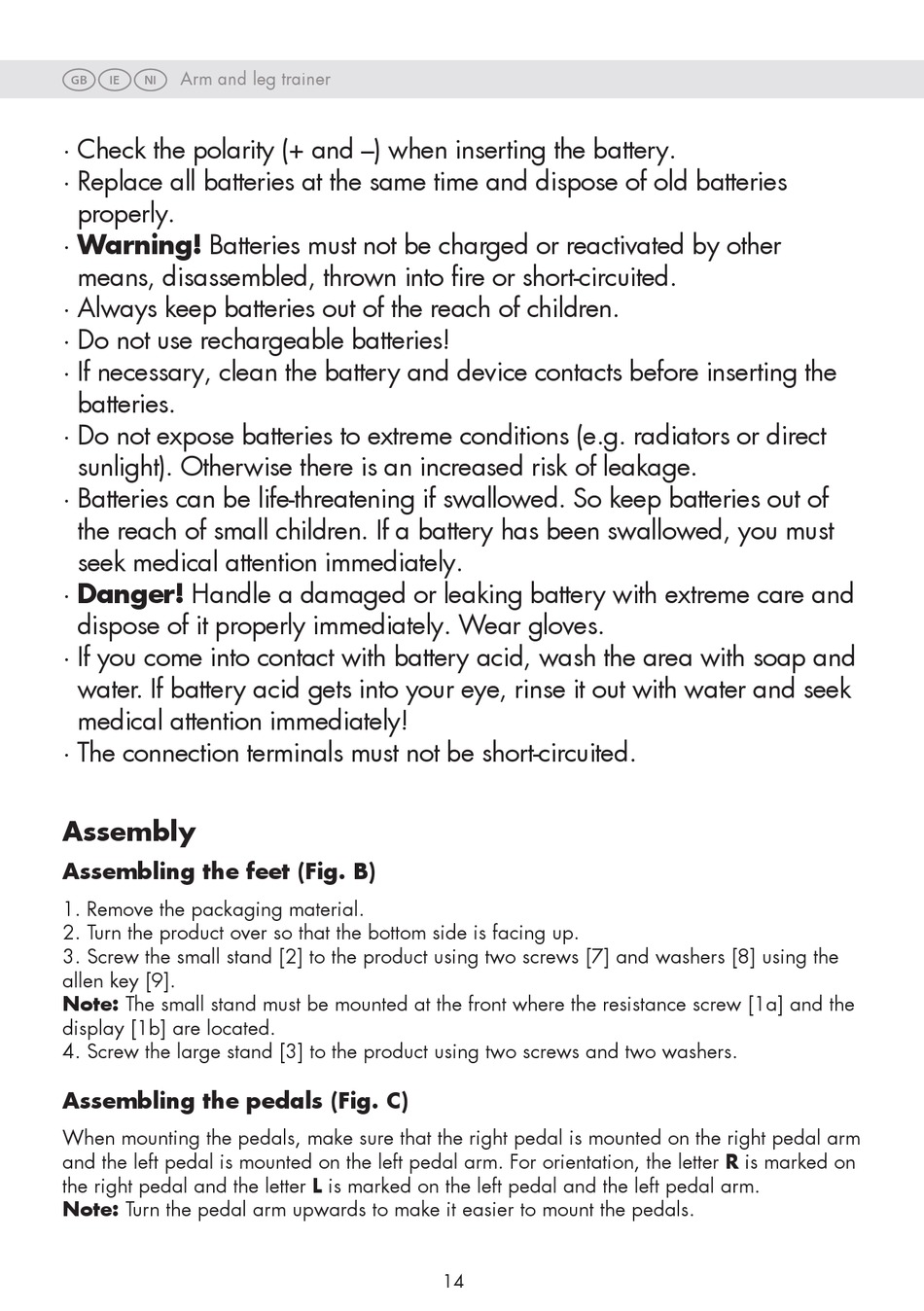

Assembly; Assembling The Feet And Pedals - Crivit Sp-Mb-020 Gebrauchsanleitung

Arm and leg trainer
GB IE
NI
∙ Check the polarity (+ and –) when inserting the battery.
∙ Replace all batteries at the same time and dispose of old batteries
properly.
∙ Warning! Batteries must not be charged or reactivated by other
means, disassembled, thrown into fire or short-circuited.
∙ Always keep batteries out of the reach of children.
∙ Do not use rechargeable batteries!
∙ If necessary, clean the battery and device contacts before inserting the
batteries.
∙ Do not expose batteries to extreme conditions (e.g. radiators or direct
sunlight). Otherwise there is an increased risk of leakage.
∙ Batteries can be life-threatening if swallowed. So keep batteries out of
the reach of small children. If a battery has been swallowed, you must
seek medical attention immediately.
∙ Danger! Handle a damaged or leaking battery with extreme care and
dispose of it properly immediately. Wear gloves.
∙ If you come into contact with battery acid, wash the area with soap and
water. If battery acid gets into your eye, rinse it out with water and seek
medical attention immediately!
∙ The connection terminals must not be short-circuited.

Assembly

Assembling the feet (Fig. B)
1. Remove the packaging material.
2. Turn the product over so that the bottom side is facing up.
3. Screw the small stand [2] to the product using two screws [7] and washers [8] using the
allen key [9].
Note: The small stand must be mounted at the front where the resistance screw [1a] and the
display [1b] are located.
4. Screw the large stand [3] to the product using two screws and two washers.
Assembling the pedals (Fig. C)
When mounting the pedals, make sure that the right pedal is mounted on the right pedal arm
and the left pedal is mounted on the left pedal arm. For orientation, the letter R is marked on
the right pedal and the letter L is marked on the left pedal and the left pedal arm.
Note: Turn the pedal arm upwards to make it easier to mount the pedals.
14
