SmartRelay 2
Screw terminals
Backup battery
Ambient conditions
Temperature range
Humidity
Interfaces
B-field
EN
V : 9 V – 24 V

IN DC
Power consumption: ~ 0.9 W (idle)

Power consumption: ~ 2.7 W (peak)

Reverse voltage protection: yes

The max. current depends on the supply voltage and the activity
of the SmartRelay.
1× CR1220 3 V , positive terminal top
DC
-22 °C to +55 °C (operation)

0 °C to +40 °C (storage)

Max. 95%, non-condensing
Interface to SimonsVoss transponders (range max. 1.5 m)
(Power supply must be limited to 15 W)
DC

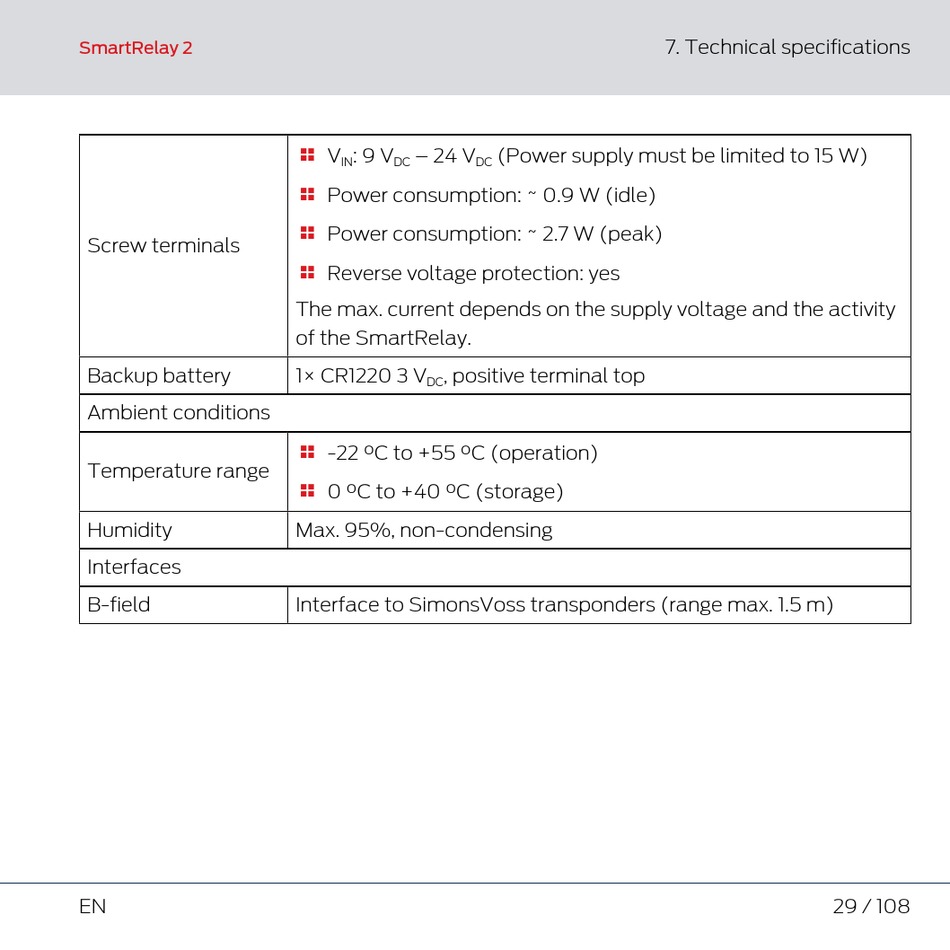

7. Technical specifications
