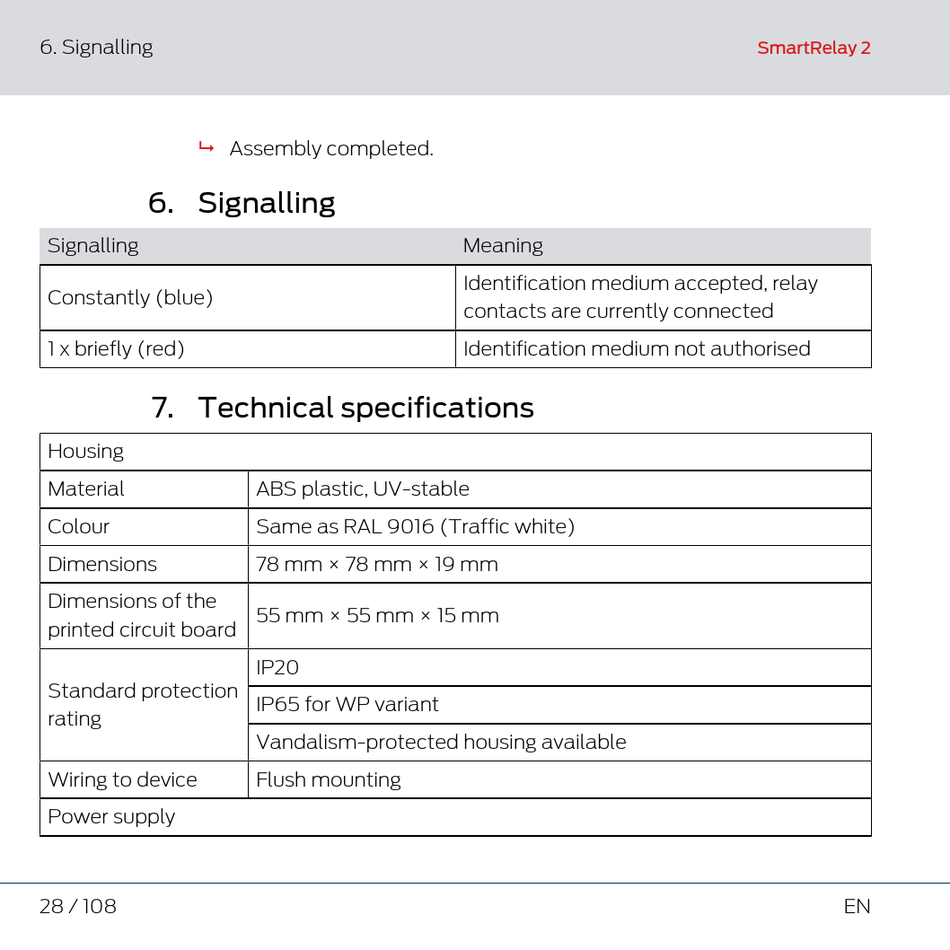

6. Signalling
9
6. Signalling
Signalling
Constantly (blue)
1 x briefly (red)
7. Technical specifications
Housing
Material
Colour
Dimensions
Dimensions of the
printed circuit board
Standard protection
rating
Wiring to device
Power supply
28 / 108
Assembly completed.
ABS plastic, UV-stable
Same as RAL 9016 (Traffic white)
78 mm × 78 mm × 19 mm
55 mm × 55 mm × 15 mm
IP20
IP65 for WP variant
Vandalism-protected housing available
Flush mounting
Meaning
Identification medium accepted, relay
contacts are currently connected
Identification medium not authorised
SmartRelay 2
