SmartRelay 2
Code
Relay

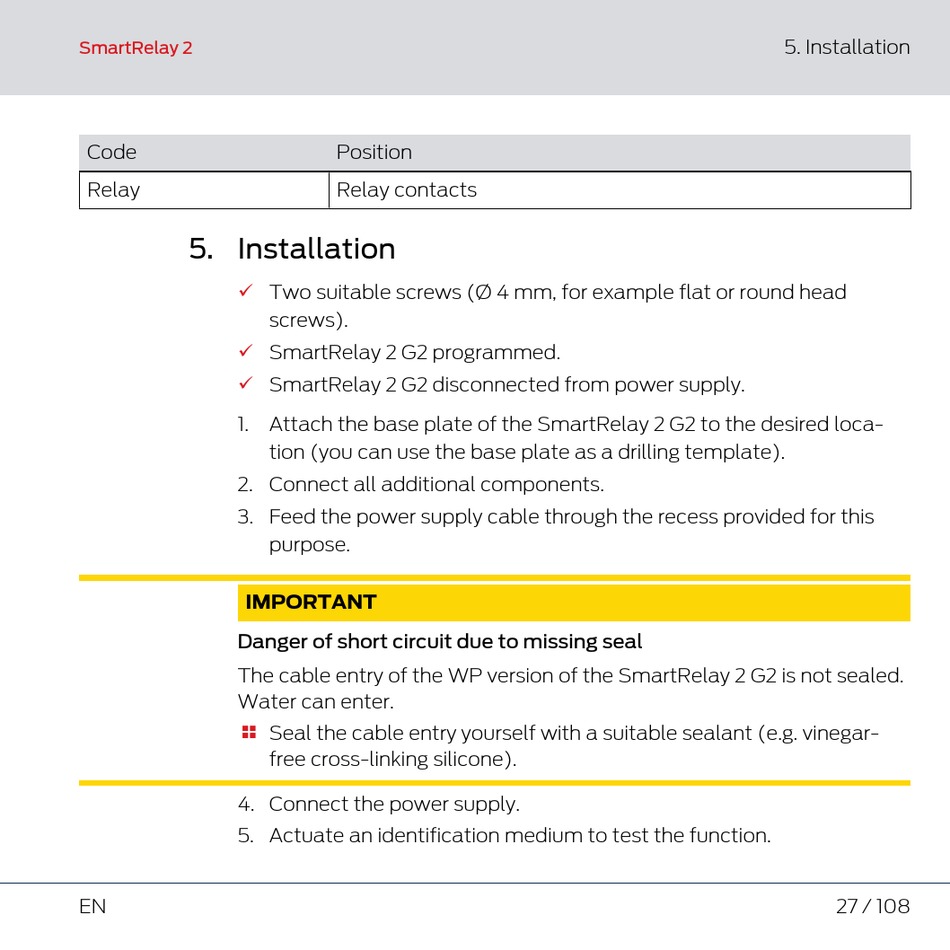

5. Installation
ü
ü
ü
1. Attach the base plate of the SmartRelay 2 G2 to the desired loca-
2. Connect all additional components.
3. Feed the power supply cable through the recess provided for this
IMPORTANT
Danger of short circuit due to missing seal
The cable entry of the WP version of the SmartRelay 2 G2 is not sealed.
Water can enter.

4. Connect the power supply.
5. Actuate an identification medium to test the function.
EN
Position
Relay contacts
Two suitable screws (Ø 4 mm, for example flat or round head
screws).
SmartRelay 2 G2 programmed.
SmartRelay 2 G2 disconnected from power supply.
tion (you can use the base plate as a drilling template).
purpose.
Seal the cable entry yourself with a suitable sealant (e.g. vinegar-
free cross-linking silicone).
5. Installation
