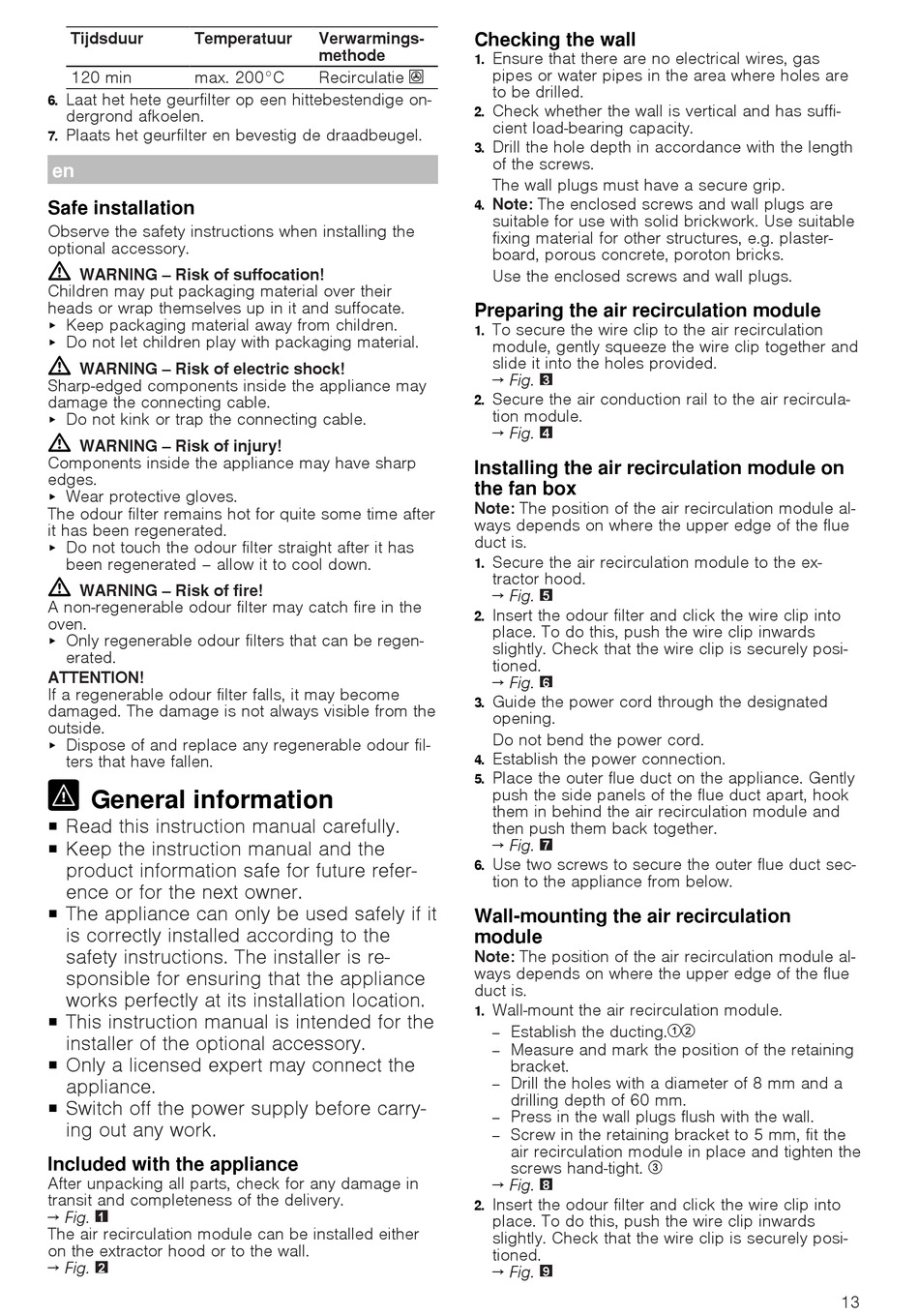

Bosch DWZ0XX0J0 Montageanleitung Seite 13

Tijdsduur Temperatuur
120 min max. 200°C
Laat het hete geurfilter op een hittebestendige on-
6.
dergrond afkoelen.
Plaats het geurfilter en bevestig de draadbeugel.
7.
en
Safe installation
Observe the safety instructions when installing the
optional accessory.
WARNING ‒ Risk of suffocation!
Children may put packaging material over their
heads or wrap themselves up in it and suffocate.
Keep packaging material away from children.
▶
Do not let children play with packaging material.
▶
WARNING ‒ Risk of electric shock!
Sharp-edged components inside the appliance may
damage the connecting cable.
Do not kink or trap the connecting cable.
▶
WARNING ‒ Risk of injury!
Components inside the appliance may have sharp
edges.
Wear protective gloves.
▶
The odour filter remains hot for quite some time after
it has been regenerated.
Do not touch the odour filter straight after it has
▶
been regenerated – allow it to cool down.
WARNING ‒ Risk of fire!
A non-regenerable odour filter may catch fire in the
oven.
Only regenerable odour filters that can be regen-
▶
erated.
ATTENTION!
If a regenerable odour filter falls, it may become
damaged. The damage is not always visible from the
outside.
Dispose of and replace any regenerable odour fil-
▶
ters that have fallen.
General information
Read this instruction manual carefully.
¡
Keep the instruction manual and the
¡
product information safe for future refer-
ence or for the next owner.
The appliance can only be used safely if it
¡
is correctly installed according to the
safety instructions. The installer is re-
sponsible for ensuring that the appliance
works perfectly at its installation location.
This instruction manual is intended for the
¡
installer of the optional accessory.
Only a licensed expert may connect the
¡
appliance.
Switch off the power supply before carry-
¡
ing out any work.
Included with the appliance
After unpacking all parts, check for any damage in
transit and completeness of the delivery.
→ Fig.
1
The air recirculation module can be installed either
on the extractor hood or to the wall.
→ Fig.
2
Verwarmings- Checking the wall
methode
1.
Recirculatie
2.
3.
4.
Preparing the air recirculation module
1.
2.
Installing the air recirculation module on
the fan box
Note: The position of the air recirculation module al-
ways depends on where the upper edge of the flue
duct is.
1.
2.
3.
4.
5.
6.
Wall-mounting the air recirculation
module
Note: The position of the air recirculation module al-
ways depends on where the upper edge of the flue
duct is.
1.
2.
Ensure that there are no electrical wires, gas
pipes or water pipes in the area where holes are
to be drilled.
Check whether the wall is vertical and has suffi-
cient load-bearing capacity.
Drill the hole depth in accordance with the length
of the screws.
The wall plugs must have a secure grip.
Note: The enclosed screws and wall plugs are
suitable for use with solid brickwork. Use suitable
fixing material for other structures, e.g. plaster-
board, porous concrete, poroton bricks.
Use the enclosed screws and wall plugs.
To secure the wire clip to the air recirculation
module, gently squeeze the wire clip together and
slide it into the holes provided.
→ Fig.
3
Secure the air conduction rail to the air recircula-
tion module.
→ Fig.
4
Secure the air recirculation module to the ex-
tractor hood.
→ Fig.
5
Insert the odour filter and click the wire clip into
place. To do this, push the wire clip inwards
slightly. Check that the wire clip is securely posi-
tioned.
→ Fig.
6
Guide the power cord through the designated
opening.
Do not bend the power cord.
Establish the power connection.
Place the outer flue duct on the appliance. Gently
push the side panels of the flue duct apart, hook
them in behind the air recirculation module and
then push them back together.
→ Fig.
7
Use two screws to secure the outer flue duct sec-
tion to the appliance from below.
Wall-mount the air recirculation module.
Establish the ducting.
‒
Measure and mark the position of the retaining
‒
bracket.
Drill the holes with a diameter of 8 mm and a
‒
drilling depth of 60 mm.
Press in the wall plugs flush with the wall.
‒
Screw in the retaining bracket to 5 mm, fit the
‒
air recirculation module in place and tighten the
screws hand-tight.
→ Fig.
8
Insert the odour filter and click the wire clip into
place. To do this, push the wire clip inwards
slightly. Check that the wire clip is securely posi-
tioned.
→ Fig.
9
