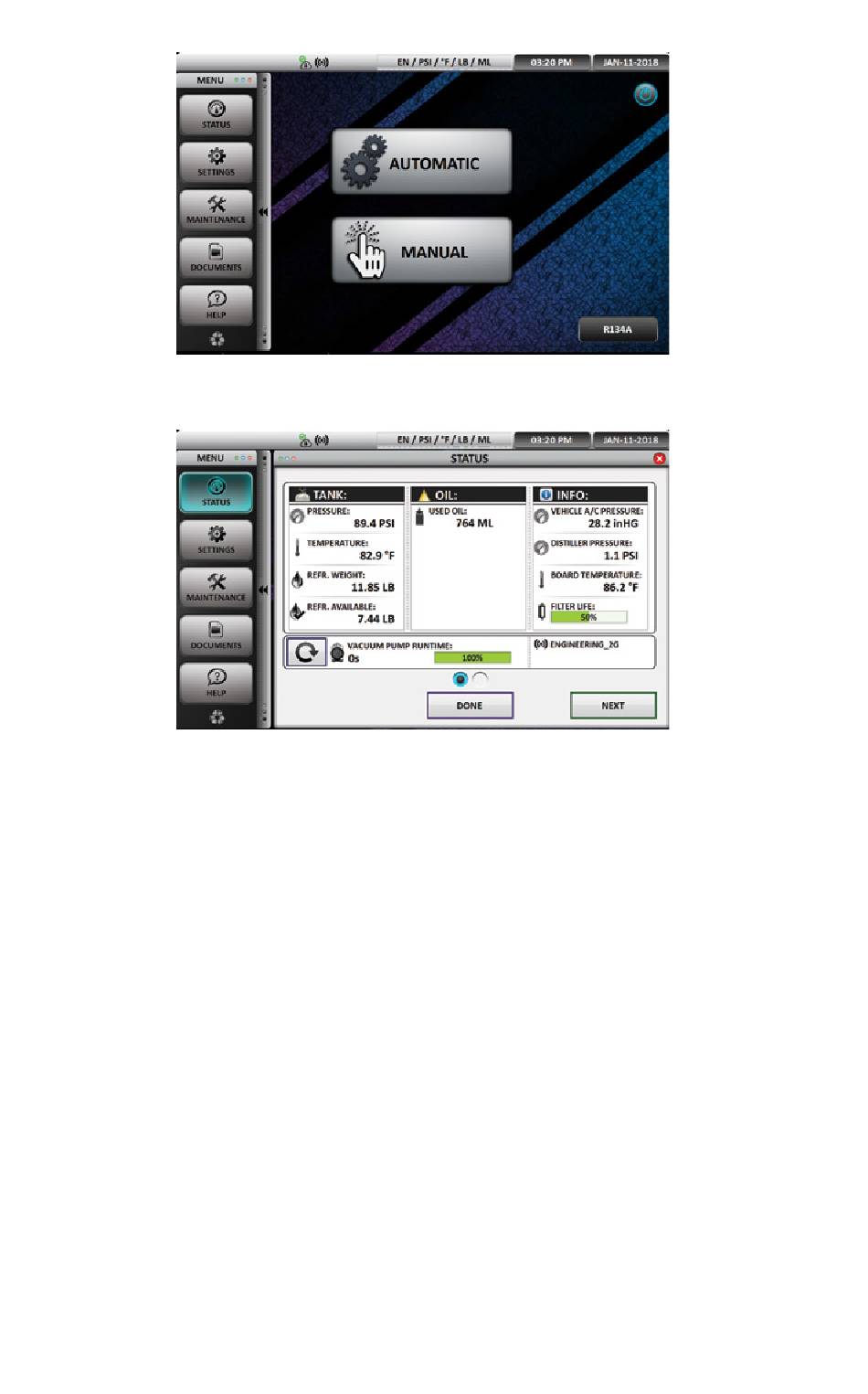

consists of the following options: status, settings, maintenance, documents and help.
STATUS: This will display all the current information about the machine. Tank, oil, info and vacuum
•
pump runtime graphics will be seen at the top of the screen.
o
TANK: Displays internal pressure, tank temperature, total amount of refrigerant (refrigerant
weight) and total amount of refrigerant available for charging
NOTE: Per SAE regulations a minimum of 2 kg (4.4 lbs) of refrigerant must be in the internal
tank at all times. This is the difference between the displayed refrigerant weight and refrigerant
available. Refer to refrigerant available when setting the vehicle refrigerant charge amount.
o
OIL: Displays the volume of the used oil in the used oil bottle, the volume of the injection oil in
bottle #1 (COMMANDER2100 (-E), COMMANDER3100-E only) and the volume of the injection oil
in bottle #2 (COMMANDER2100 (-E), COMMANDER3100-E only)
o
INFO: Displays vehicle A/C pressure (when the hoses and couplers are connected to the vehicle,
valves on the machine are open and couplers are turned completely clockwise), distiller pressure
(pressure/vacuum reading for the distiller), board temperature (the temperature of the circuit
board) and filter life (percentage of remaining filter life.)
NOTE: Check periodically for the remaining filter life. Purchase a replacement filter before 0% is
reached, or you will not be able to use the machine.
o
VACUUM PUMP RUN TIME: Displays the total lifetime runtime for the vacuum pump. It is
recommended that you change the vacuum pump oil every 20 hours of run time.
NOTE: Failure to change the vacuum pump oil can cause damage to the vacuum pump which
may void warranty.
