PANEL (LCD and Button)

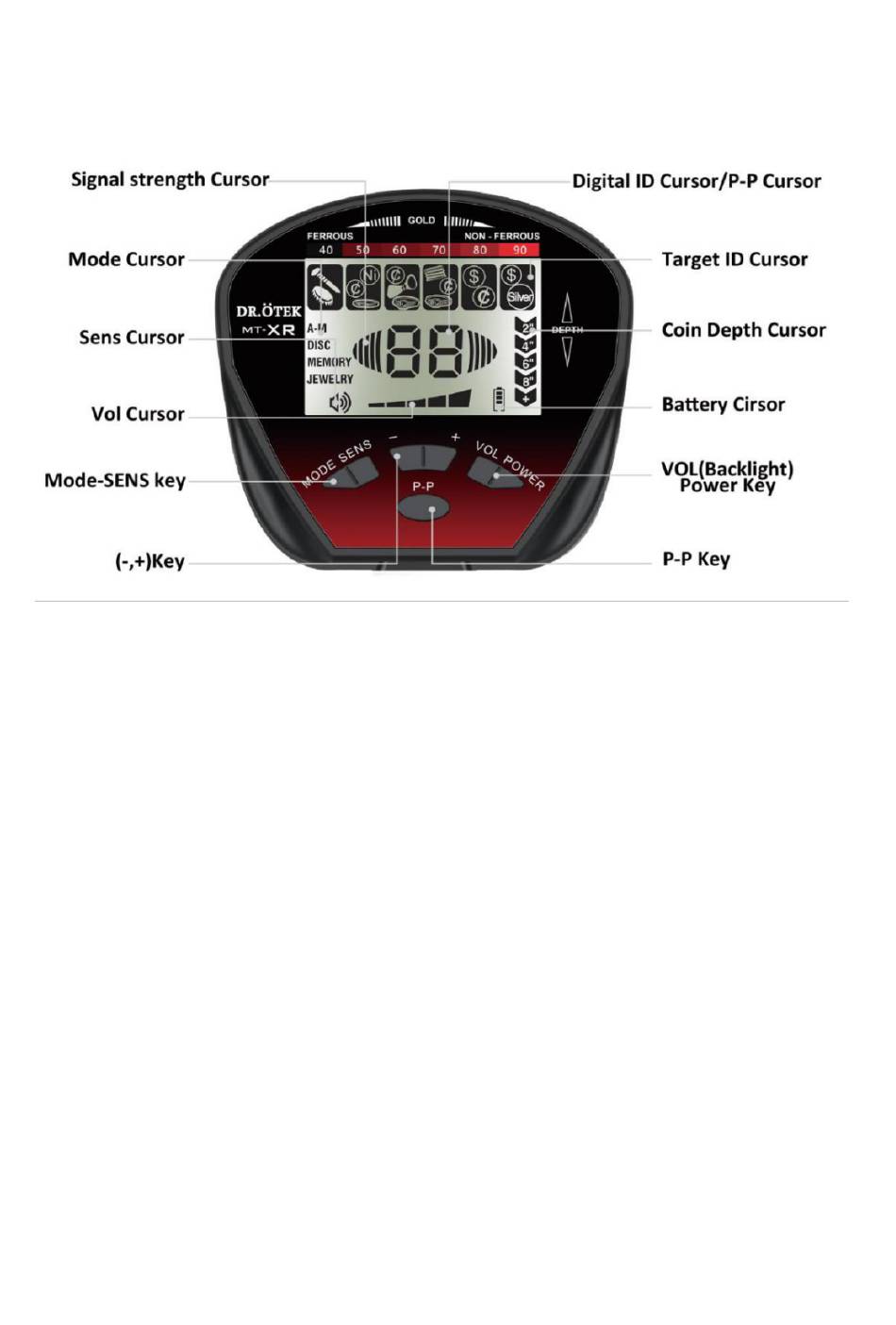

Fig.8
LCD
● Mode Cursor: indicates the operation mode, divided into four
different settings.
● Target ID Cursor: divided into 6 categories. It is used to indicate the
target metals.
● Digital ID Cursor/Pinpoint Cursor: two digits from 01 to 99 accurately
indicates the material metal. It also acts as a P-P cursor, when P-P is
displayed, the device is in Pinpoint mode.
● Coin Depth Cursor: divided into five different depths. Indicates the
approximate depth (2,4,6,8, +") of a 25￠silver coin in neutral soil.
● Signal strength cursor: indicates the signal strength when in Pinpoint
mode.
● Volume cursor: indicates the set volume.
