OPERATION

After you connected the spot to the mains, it starts running. The LED display lights up and you can now
choose the desired settings via the buttons MODE, ENTER, UP and DOWN.
The device has two operating modes. It can be operated in stand-alone mode via the control board or in
DMX-controlled mode via any standard DMX controller.

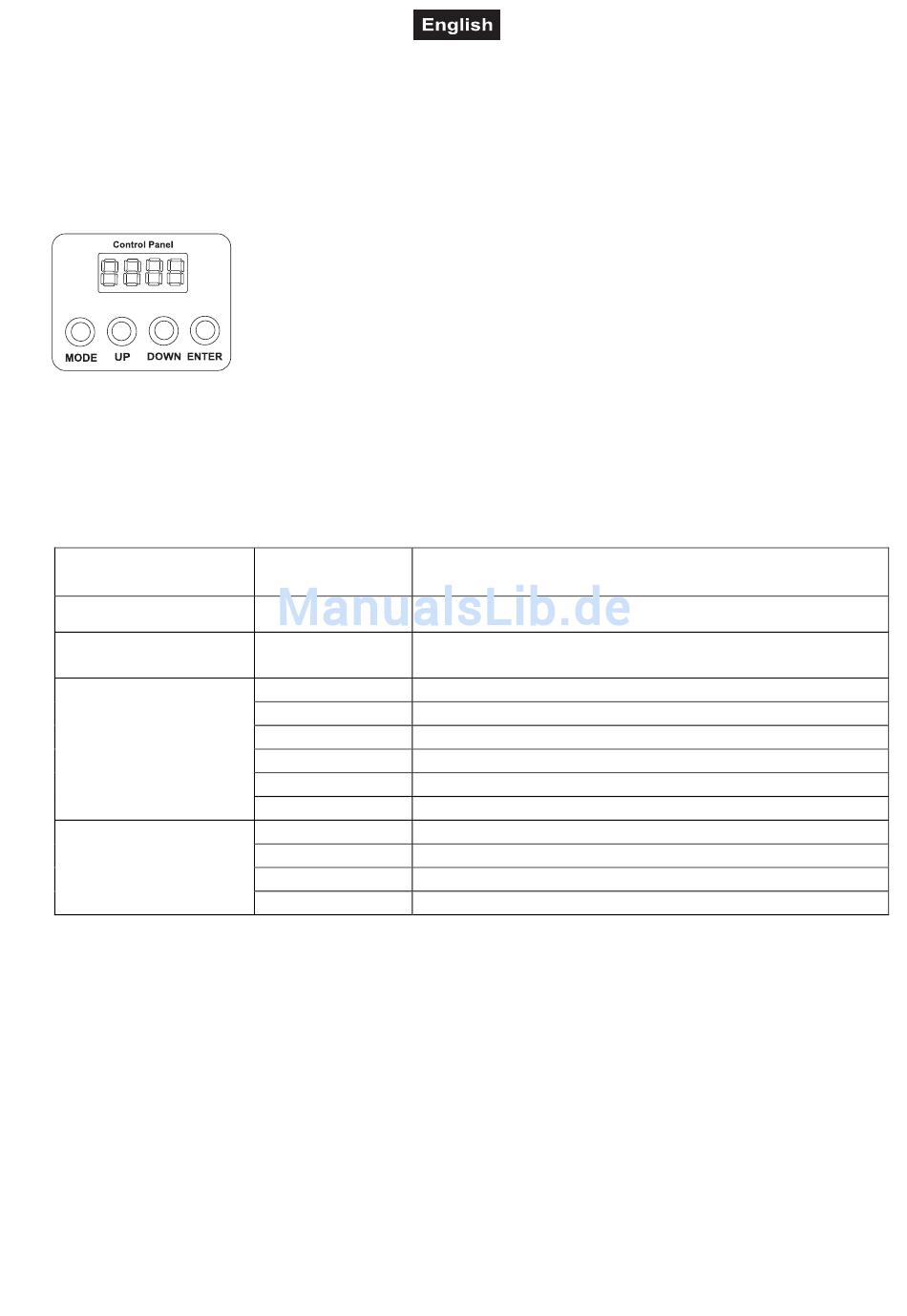

Control board

STAND ALONE MODE
-
Setting Static Colors
-
- Internal programs
- Dimmer
- DMX MODE
- 8CH selection
MODE
DMX
STATIC COLORS
INTERNAL PROGRAMS
DIMMER
Static Colors
Press the MODE button until the display shows A1.01. You can now select the desired static color via the
UP or DOWN buttons. Please press the ENTER button to confirm and then the MODE button to return to the
main menu.
Internal Programs
Switching colors
Press the MODE button until the display shows A2.01. You can now select the desired switching color
program via the UP or DOWN buttons, and press the ENTER button to confirm. Please press the ENTER
button again and then you can select the desired speed (A2.01 – A2.32, increasing) via the UP or DOWN
buttons. Please press the ENTER button to confirm and then the MODE button to return to the main menu.
The control board offers several features, i.e. setting the DMX starting address,
running a preset program or selecting a DMX channel mode.
Browse through the menu by pressing MODE. You can change the selection by
pressing UP or DOWN. Press ENTER in order to confirm. You can leave every
mode by pressing MODE. The functions provided are listed in the following
sections.
DISPLAY
d001 – d512
A1.01 – A1.19
A2.01 – A2.19
A3.01 – A3.19
A4.01 – A4.19
A5.01 – A5.19
A6.01 – A6.19
A7.01 – A7.19
r000 – r255
G000 – G255
b000 – b255
u000 – u255
Setting the DMX starting address
Select static color
Switching colors
Fading colors
Sound control
Strobe effect
Auto run
Blinking
Adjust the brightness of the red LEDs
Adjust the brightness of the green LEDs
Adjust the brightness of the blue LEDs
Adjust the brightness of the white LEDs
