Inserting batteries

Remove the battery compartment cover and insert four Mignon cells, 1.5 V, alkaline
type LR6 into the battery compartment, observing the correct polarity as per the
corresponding diagram. Reclose the battery compartment.

Connecting to a PC

If the station is to be connected to a PC, connect the supplied USB cable featuring
a mini USB socket to the USB interface on the WDC7000. Connect the other end of
the cable to a USB interface on the PC (refer also to Section 10).

Standing up/Mounting the station

The weather station can either be mounted on a vertical surface (wall) using the
attachment eye or stood on an even horizontal surface using the tabletop stand.
The tabletop stand is mounted as follows, with the help of the hexagon socket
screws and hexagon wrench supplied:
48

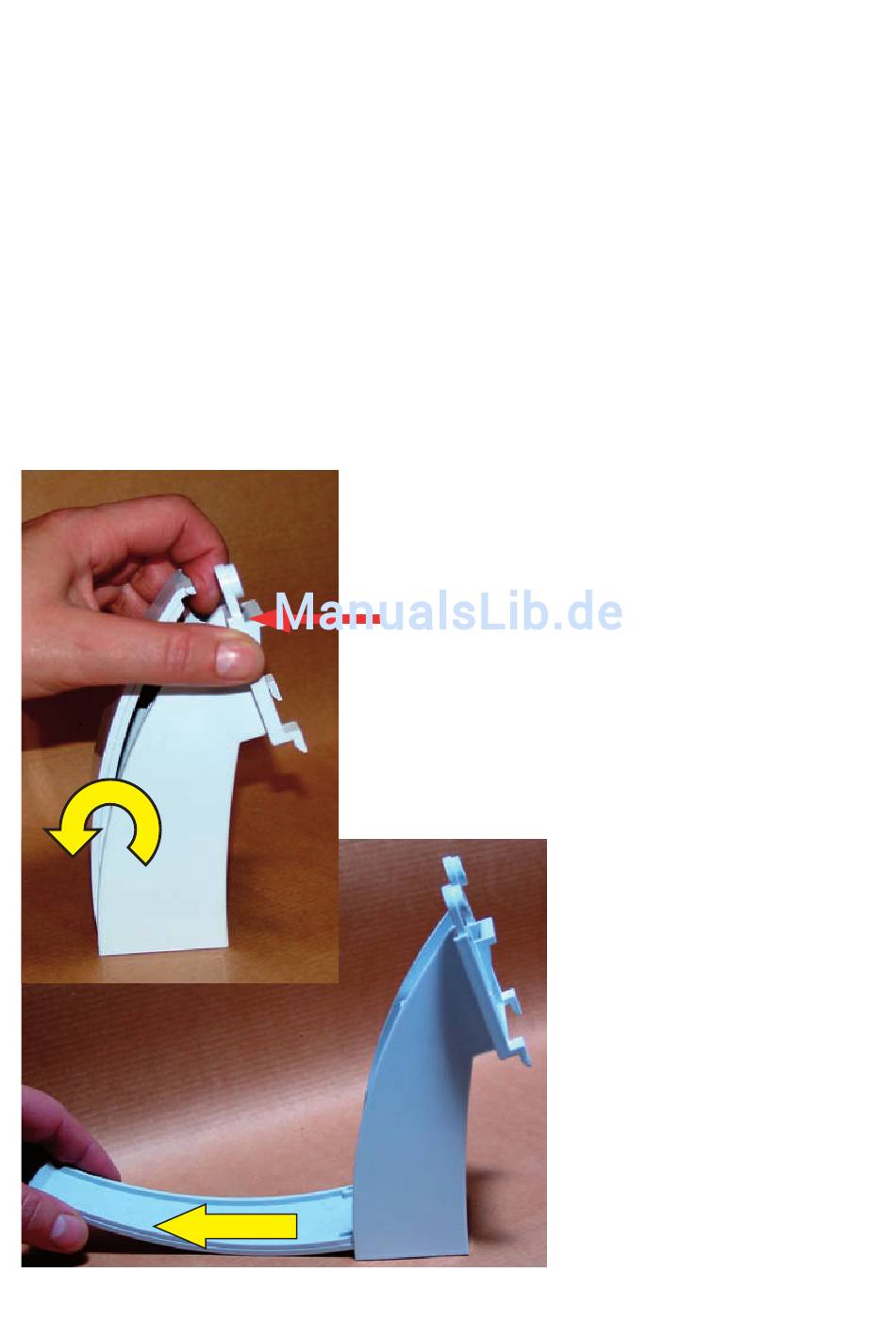

1. Remove the base support cover:
First unclip it at the top, ease it all the way down
and then remove it.
