M.2 drive access
The m.2 solid state drive is easily removable when you need to transport the instrument from a secured facility.
The m.2 drive:
■
Contains the system OS
■
Contains all user-related data that was saved to the C: (m.2) drive (waveforms, measurements, settings, and so on)
■
Is easily accessed from the bottom of the instrument with just a Torx screwdriver
NOTE. Licensed functions (installed options) and calibration constants are stored in the instrument, not on the m.2 drive.
NOTE. With the LPD64 6-SEC security option (installed at initial purchase), there is no C: drive on the instrument. User data
such as waveform acquisitions and vertical, horizontal, and trigger settings, are not retained on the m.2 drive after the instrument
is powered off. All acquisition data and setup information must be stored on external memory (USB or network).
To remove an m.2 drive:
CAUTION. Work on the instrument in an anti-static work area and use a wrist strap when removing or installing an m.2 drive.
Failing to do so could damage the m.2 board and the circuit board to which it connects.
1.
Disconnect the power cord or unplug the instrument from the power source.
2.
Turn the instrument bottom-up.
3.
Locate the m.2 drive cover near the corner of the instrument.
4.

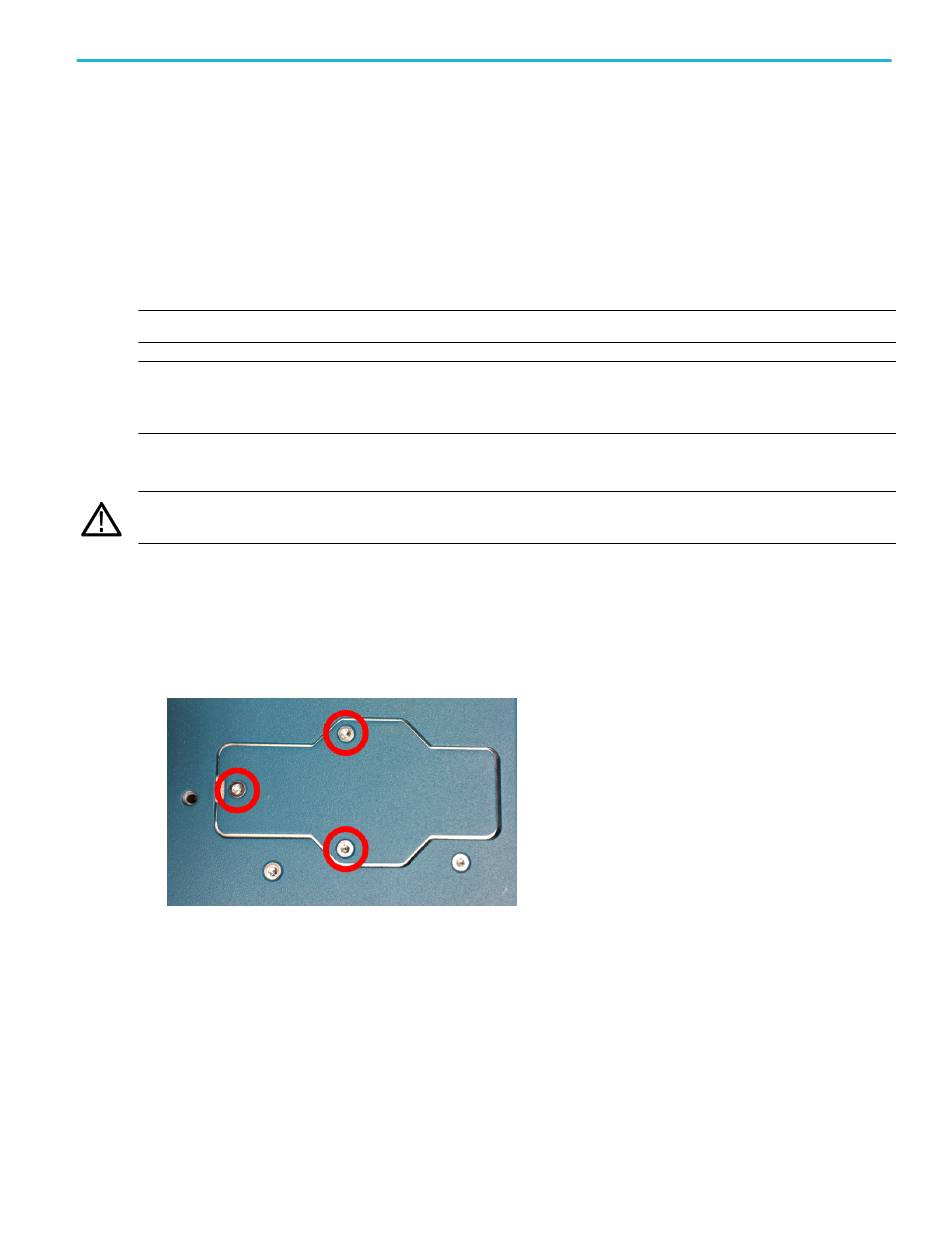

Use a T-10 Torx screw driver to remove the three screws on the Sold State Drive cover, and remove the cover.
5.
Use a T-10 Torx screwdriver to remove the screw from the end of the m.2 drive. The end of the m.2 board lifts upward as
you loosen the screw.
LPD64 Installation and Safety Manual
Getting acquainted with your instrument
9
