Getting acquainted with your instrument
Front panel controls and connections, LPD64
The front panel is where you power on or off the instrument, connect signals with cables, connect an auxiliary trigger input signal,
and insert USB devices.

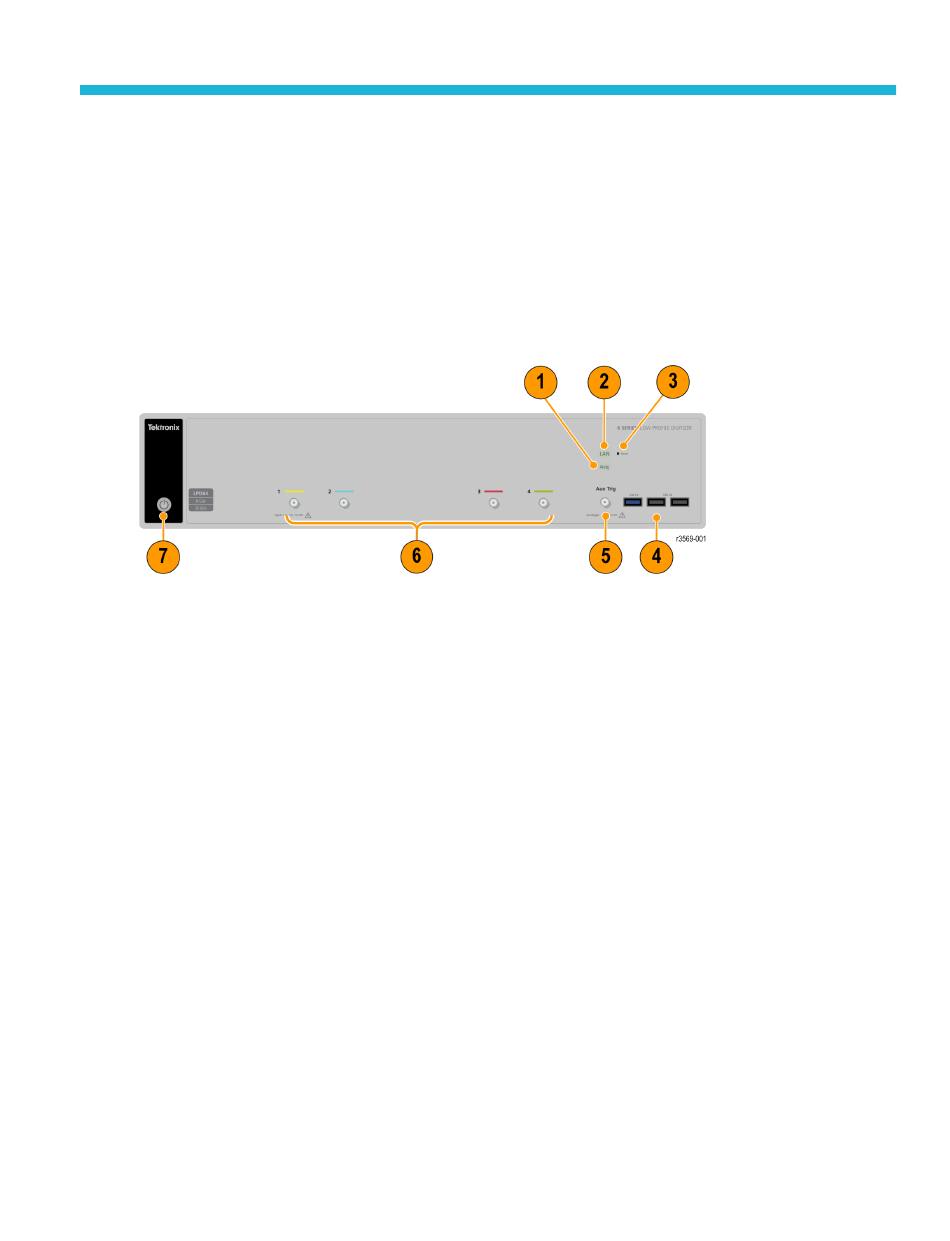

The LPD64 front panel
1.
Acq status LED:
Shows the instrument trigger/acquisition status:
Green - Triggered
■
Yellow - Armed but not yet triggered
■
Red - Acquisition stopped
■
2.
LAN Status LED:
Shows the network connection and activity status:
Off - No power to instrument
■
Green - Network connection is good
■
Red - Network connection has fault or is not connected
■
3.
LAN Reset button (to the right of the LAN status LEDs):
Lets you manually reset the LAN settings.
4.
USB Host ports (One USB 3.0; two USB 2.0):
Lets you save or recall data (such as instrument firmware updates, waveforms, settings, and screen captures) to a USB
memory device, or connect peripheral devices such as a mouse or keyboard.
5.
Aux Trig trigger input connector:
An SMA connector to which you can connect an external trigger input signal. Use the AUX In trigger signal with the Edge
trigger mode.
6.
SMA connectors:
LPD64 Installation and Safety Manual
