Installation/Connection
3. Installation/Connection
Safety instructions
• Risk of injury through an electric shock.
• Terminal connections must be carried out by an authorised electrician.
• If more than one motor is being controlled via the commeo Receive
Warning!
Connect/Receive Connect Awning, the motors must be decoupled by
relay controls. The switched current of the device must be observed at all
times.
Warning!

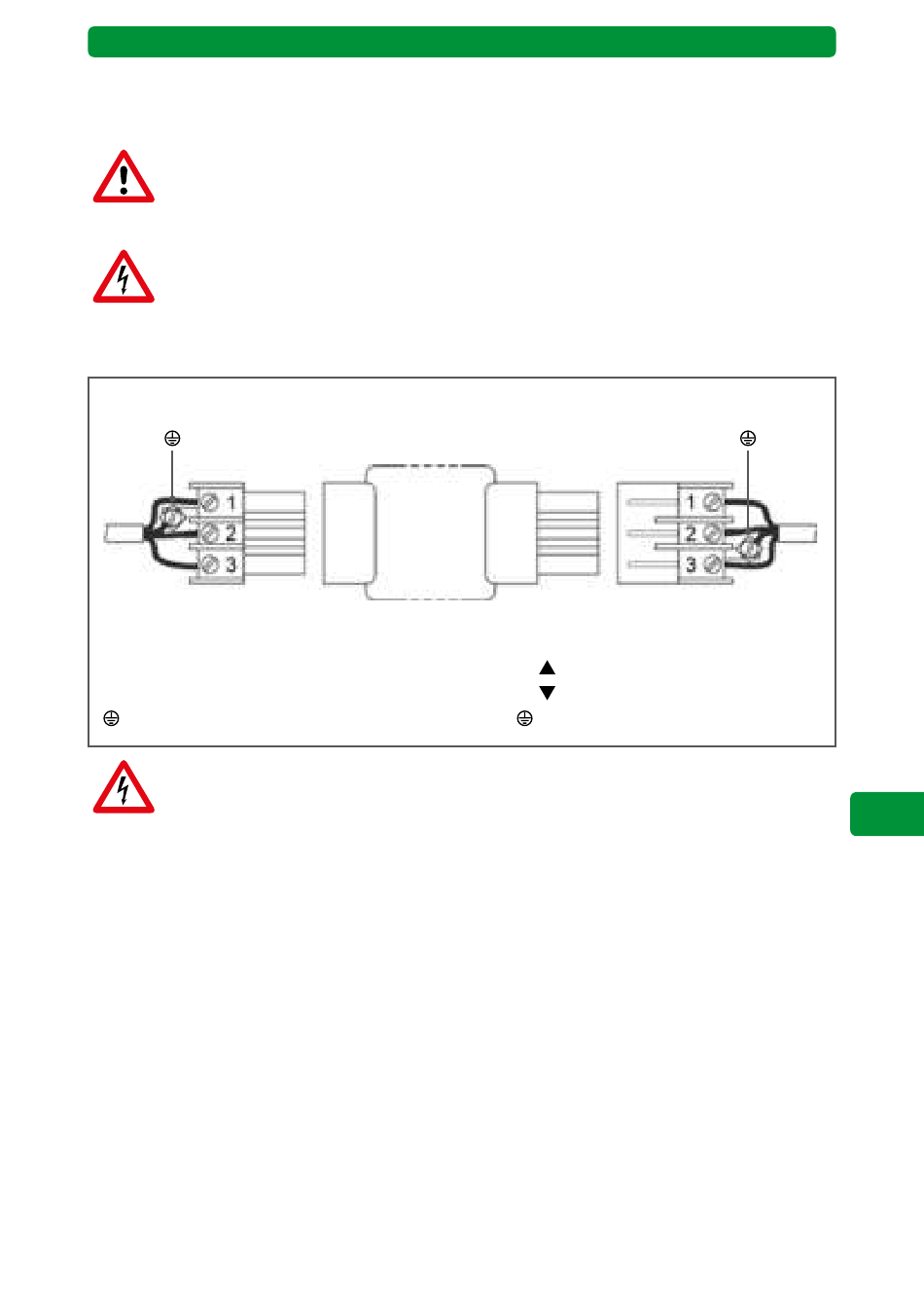

1. Connect the commeo Receive Connect/Receive Connect Awning as follows:
Mains 230 V/50 Hz
STAK3
1: N (blue)
2: L (black)
3: Not used (brown if available)
: Earth conductor (green-yellow)
• The neutral conductor (blue) is always on clamp 1.
• Specific installation instructions for the connectors STAK3 and STAS3
need to be observed, e.g.
Warning!
· Indication of the wiring type,
· Indication of the manufacture of tightness,
· Secure both plug connectors by using the securing clip.
• Install the commeo Receive Connect/Receive Connect Awning protected
against direct rain.
2. Programme a transmitter into the receiver (see section Initial operation).
Note: Ensure that optimum radio reception is achieved.
Motor
STAS3
1: N (blue)
2:
3:
: Earth conductor (green-yellow)
