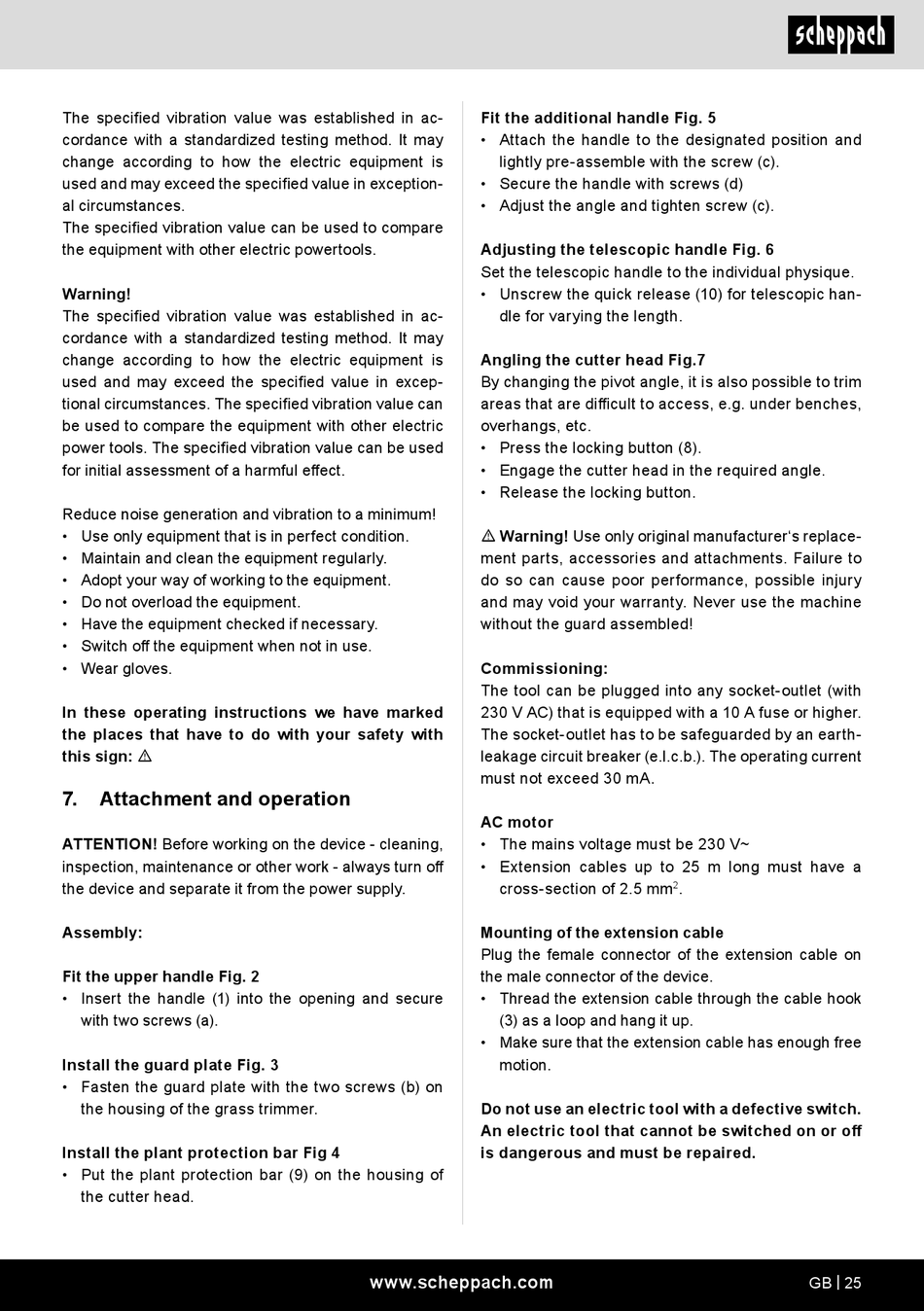

The specified vibration value was established in ac-
cordance with a standardized testing method. It may
change according to how the electric equipment is
used and may exceed the specified value in exception-
al circumstances.
The specified vibration value can be used to compare
the equipment with other electric powertools.
Warning!
The specified vibration value was established in ac-
cordance with a standardized testing method. It may
change according to how the electric equipment is
used and may exceed the specified value in excep-
tional circumstances. The specified vibration value can
be used to compare the equipment with other electric
power tools. The specified vibration value can be used
for initial assessment of a harmful effect.
Reduce noise generation and vibration to a minimum!
• Use only equipment that is in perfect condition.
• Maintain and clean the equipment regularly.
• Adopt your way of working to the equipment.
• Do not overload the equipment.
• Have the equipment checked if necessary.
• Switch off the equipment when not in use.
• Wear gloves.
In these operating instructions we have marked
the places that have to do with your safety with
this sign: m
7.
Attachment and operation
ATTENTION! Before working on the device - cleaning,
inspection, maintenance or other work - always turn off
the device and separate it from the power supply.
Assembly:
Fit the upper handle Fig. 2
• Insert the handle (1) into the opening and secure
with two screws (a).
Install the guard plate Fig. 3
• Fasten the guard plate with the two screws (b) on
the housing of the grass trimmer.
Install the plant protection bar Fig 4
• Put the plant protection bar (9) on the housing of
the cutter head.
Fit the additional handle Fig. 5
• Attach the handle to the designated position and
lightly pre-assemble with the screw (c).
• Secure the handle with screws (d)
• Adjust the angle and tighten screw (c).
Adjusting the telescopic handle Fig. 6
Set the telescopic handle to the individual physique.
• Unscrew the quick release (10) for telescopic han-
dle for varying the length.
Angling the cutter head Fig.7
By changing the pivot angle, it is also possible to trim
areas that are difficult to access, e.g. under benches,
overhangs, etc.
• Press the locking button (8).
• Engage the cutter head in the required angle.
• Release the locking button.
m Warning! Use only original manufacturer's replace-
ment parts, accessories and attachments. Failure to
do so can cause poor performance, possible injury
and may void your warranty. Never use the machine
without the guard assembled!
Commissioning:
The tool can be plugged into any socket-outlet (with
230 V AC) that is equipped with a 10 A fuse or higher.
The socket-outlet has to be safeguarded by an earth-
leakage circuit breaker (e.l.c.b.). The operating current
must not exceed 30 mA.
AC motor
• The mains voltage must be 230 V~
• Extension cables up to 25 m long must have a
cross-section of 2.5 mm
Mounting of the extension cable
Plug the female connector of the extension cable on
the male connector of the device.
• Thread the extension cable through the cable hook
(3) as a loop and hang it up.
• Make sure that the extension cable has enough free
motion.
Do not use an electric tool with a defective switch.
An electric tool that cannot be switched on or off
is dangerous and must be repaired.
