Assembly and adjustments
3.2.2 Adjustment pan profile

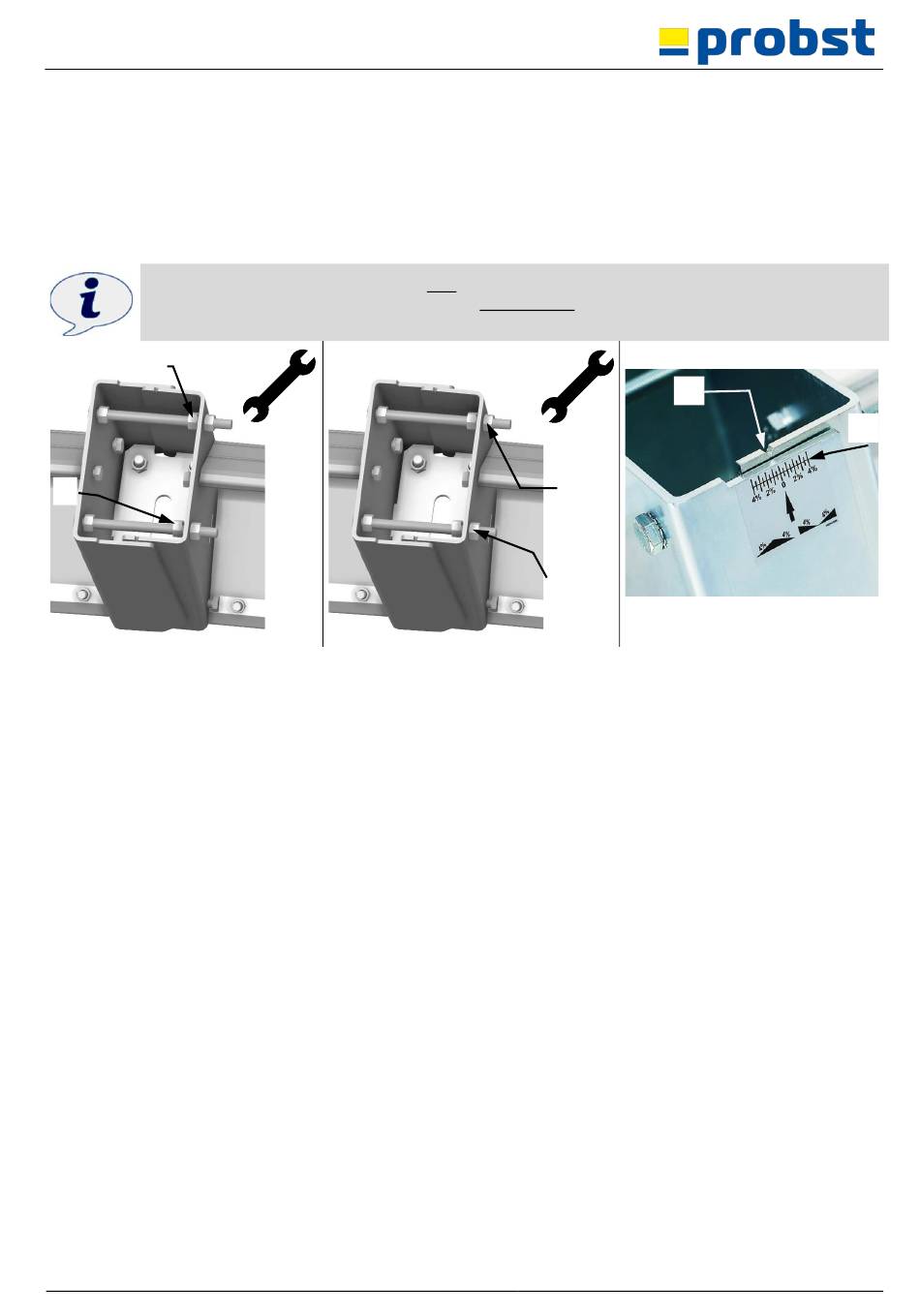

Loosen both nuts (2) on the inner side at the TAS-UNI-DP. → Figure 7
Adjust the slope (e.g. 1%) with the both nuts (3) on the inner side at the TAS-UNI-DP. → Figure 8
Slope (e.g. 1%) is viewable and adjustable on the scale (4) and indicator (5). → Figure 9
1 scale line on the scale (4)
The indicated slope (%) on the scale is only for orientation.
The actual slope (%) must be measured again unconditional on the facing bedding sand!
See Figure B und B1 on the following pages.
Fig. 7
(2)
(2)
51000100 / 51000101
≙
0,5 % slope. → Figure 9
Fig. 8 Fig. 9
(3)
(3)
12 / 19
(5)
(4)
