BVS ID-M1280xF1-xx-xxx
I/O-Link

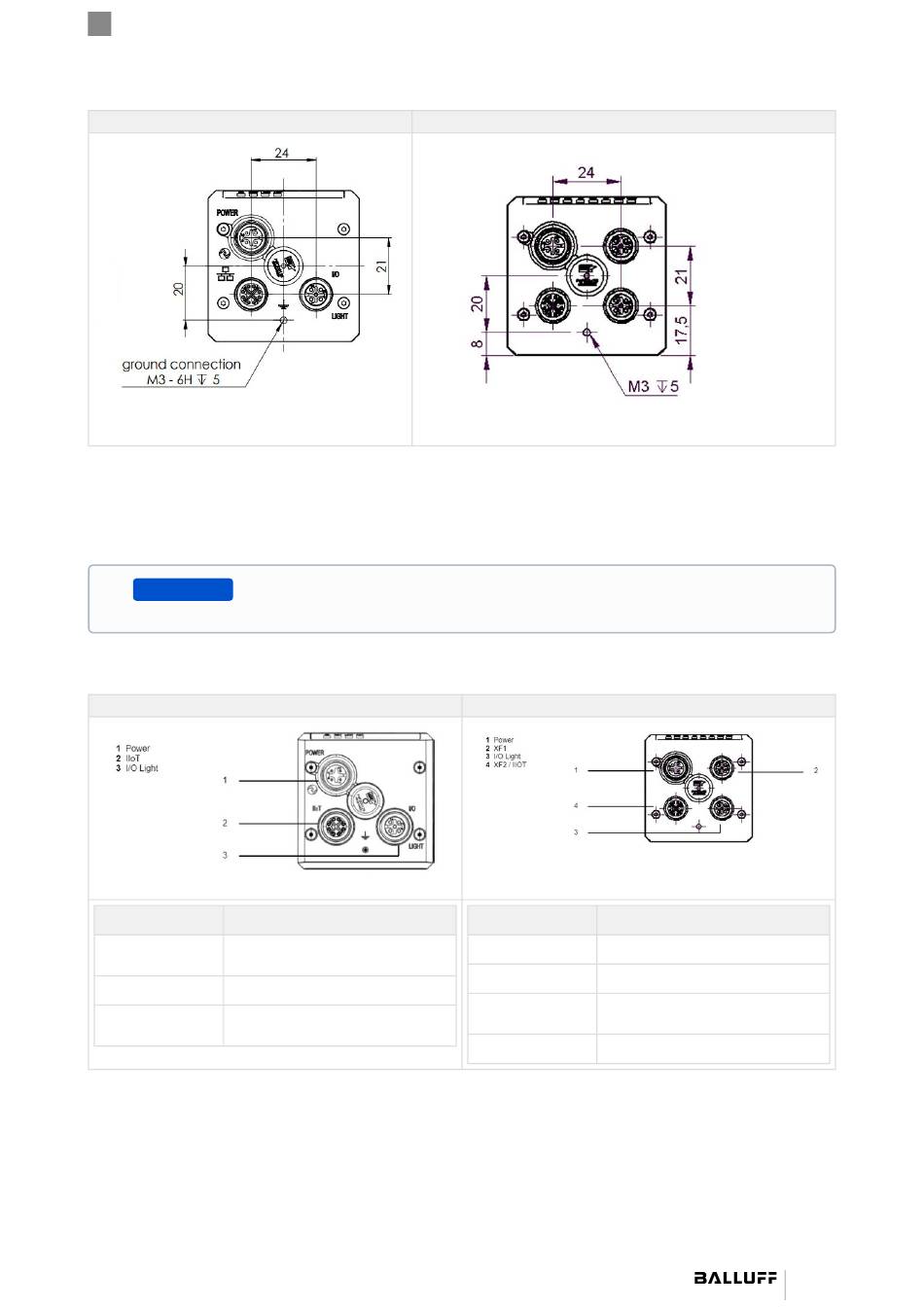

The screw connections M4 threads. The maximum engagement length is 6.5 mm. The maximum tightening
torque is 2 Nm.
4.2

Connections and pin assignment

 NOTE
To ensure enclosure rating IP67, unused I/O ports must be closed with cover caps.
According to the version the sensor offers following interfaces:
I/O-Link
Connection
Power Operating voltage and IO-Link
(IO-Link) connection of sensor
IIoT Integrates the sensor in a local network.
I/O Light 2 I/O signals and operating voltage
output, e.g. for an external lighting.
Function
Power
XF1
I/O Light
XF2 / IIoT
Multi-fieldbus
Multi-fieldbus
Connection
Operating voltage of sensor
Multi-fieldbus
2 I/O signals and operating voltage
output, e.g. for an external lighting.
Integrates the sensor in a local network.
english
Function
