USE WITH WINDOW UNIT KIT

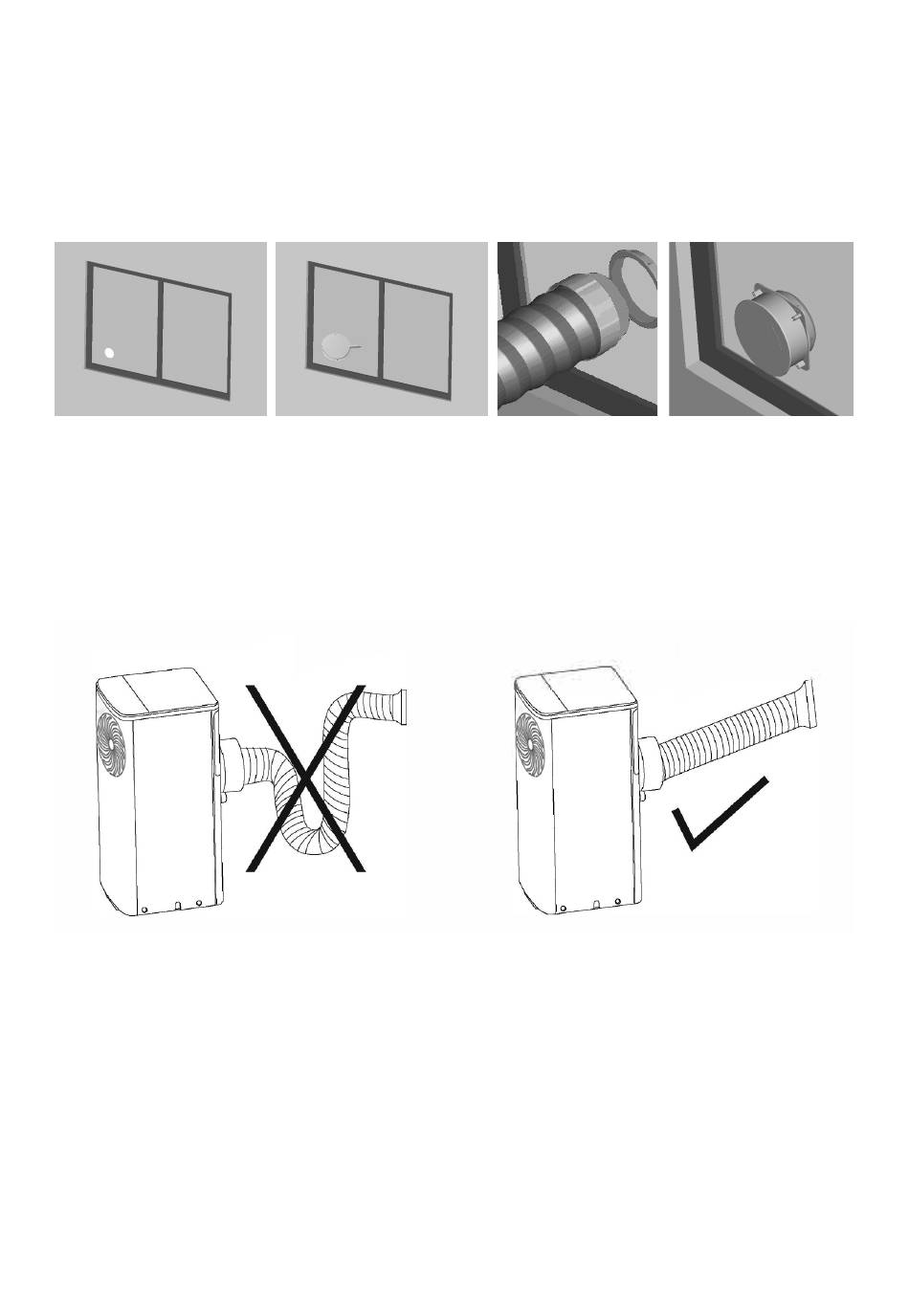

1. To make the hole in the glass, we recommend taking the porthole kit accessory to the glassmaker (Fig. 1).
2. Insert the porthole into the window (Fig. 2).
3. Insert the circular fitting for the porthole kit into the retractable flexible tube and insert the retractable flexible tube
with circular fitting into the porthole without the cap (Fig. 3).
4. During periods of non-use, disconnect the hose and close the door with the cap (Fig. 4).
(Fig. 1) (Fig. 2) (Fig. 3) (Fig. 4)
Avoid tight bends or folds in the hose.
If the air conditioner is not used for prolonged periods, disconnect the pipe and plug the window unit.
