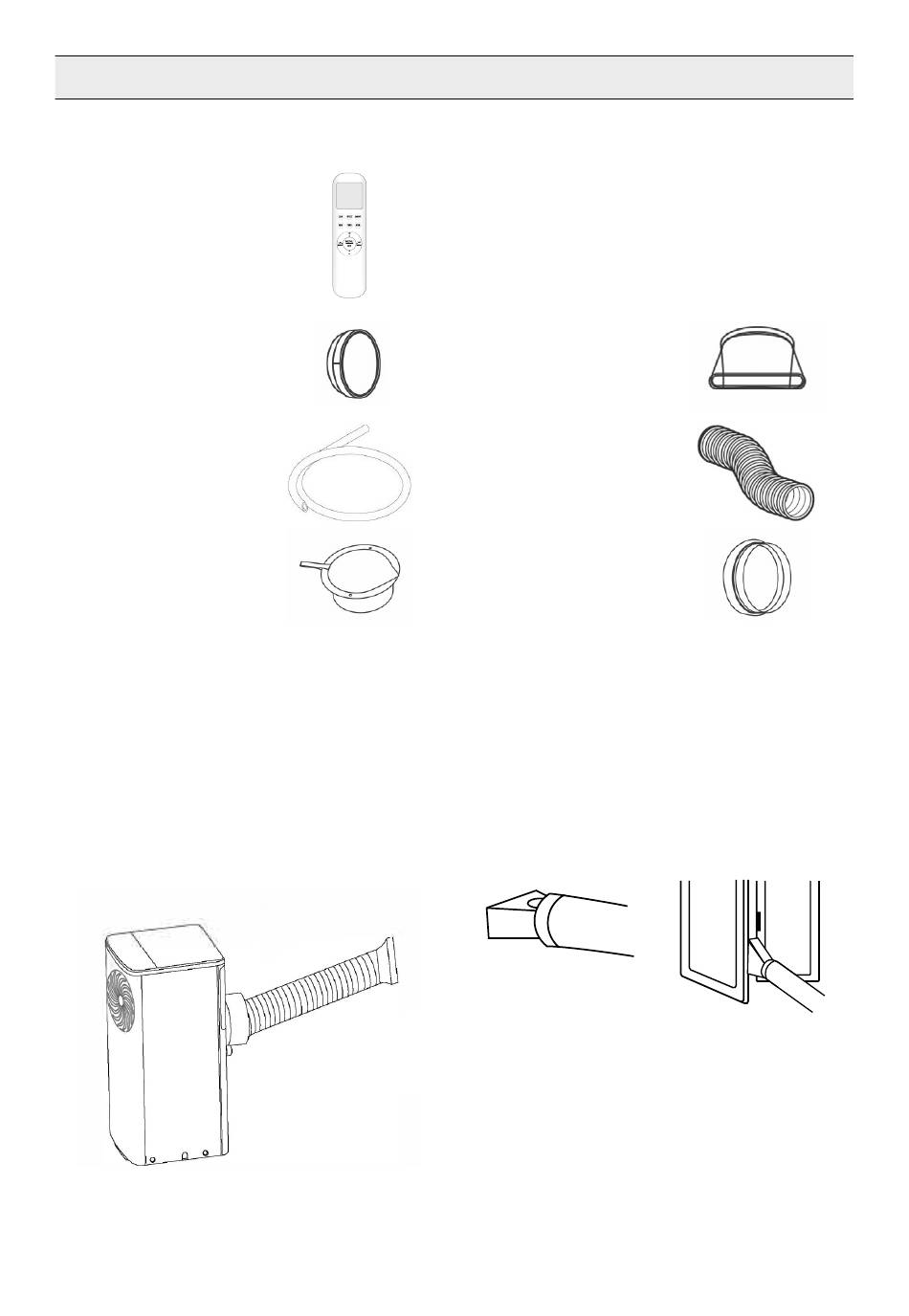

Open the packaging and pull out the box. Remove the product and the other elements supplied (illustrated in the box
below).
LCD remote control
Round fitting for window (1)
to be positioned between the
end of the tube and the end
fitting for the window
Drainage pipe
Window unit kit with plug.
Position the product vertically on a flat and stable surface, as close as possible to a window and at least 50 cm from
walls or other nearby obstacles.
USE WITH END FITTING FOR WINDOW
1. Extend the hose just enough to reach the outside (max 1.5 m) and hook it to the rear part of the air conditioner
(Fig.1).
2. Open the window and lock one of the doors with the handle. Place the terminal connection on the fixed sash,
bring the other sash of the window closer (Fig.2).
V 01/24
APPLIANCE START-UP
Fig.1
End fitting for window,
supplied into 2 parts (2)
Hose
Round fitting for window unit,
for positioning between the
end of the tube and the
window unit itself.
Fig.2
