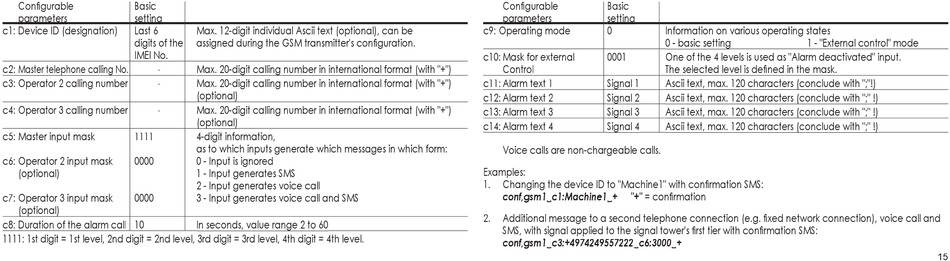

Confi gurable
Basic
parameters
parameters
setting
setting
c1: Device ID (designation)
Last 6
digits of the
IMEI No.
c2: Master telephone calling No.
Master telephone calling No.
-
c3: Operator 2 calling number
-
c4: Operator 3 calling number
-
c5: Master input mask
1111
c6: Operator 2 input mask
0000
(optional)
c7: Operator 3 input mask
0000
(optional)
(optional)
c8: Duration of the alarm call 10
1111: 1st digit = 1st level, 2nd digit = 2nd level, 3rd digit = 3rd level, 4th digit = 4th level.
Max. 12-digit individual Ascii text (optional), can be
assigned during the GSM transmitter's confi guration.
Max. 20-digit calling number in international format (with "+")
Max. 20-digit calling number in international format (with "+")
Max. 20-digit calling number in international format (with "+")
(optional)
(optional)
Max. 20-digit calling number in international format (with "+")
(optional)
(optional)
4-digit information,
as to which inputs generate which messages in which form:
0 - Input is ignored
1 - Input generates SMS
2 - Input generates voice call
3 - Input generates voice call and SMS
In seconds, value range 2 to 60
In seconds, value range 2 to 60
Confi gurable
Basic
parameters
parameters
setting
setting
c9: Operating mode
0
c10: Mask for external
0001
Control
c11: Alarm text 1
Signal 1
Signal 1
c12: Alarm text 2
Signal 2
Signal 2
c13: Alarm text 3
Signal 3
Signal 3
c14: Alarm text 4
Signal 4
Signal 4
Voice calls are non-chargeable calls.
Examples:
1.
Changing the device ID to "Machine1" with confi rmation SMS:
conf,gsm1Vc1:Machine1V+
"+"
"+" = confi rmation
"+" = confi rmation
2.
Additional message to a second telephone connection (e.g. fi xed network connection), voice call and
SMS, with signal applied to the signal tower's fi rst tier with confi rmation SMS:
conf,gsm1Vc3:+4974249557222Vc6:3000V+
Information on various operating states
0 - basic setting
0 - basic setting
1 - "External control" mode
One of the 4 levels is used as "Alarm deactivated" input.
The selected level is defi ned in the mask.
Ascii text, max. 120 characters (conclude with ";"!)
Ascii text, max. 120 characters (conclude with ";"!)
Ascii text, max. 120 characters (conclude with ";" !)
Ascii text, max. 120 characters (conclude with ";" !)
Ascii text, max. 120 characters (conclude with ";" !)
Ascii text, max. 120 characters (conclude with ";" !)
Ascii text, max. 120 characters (conclude with ";" !)
Ascii text, max. 120 characters (conclude with ";" !)
15
