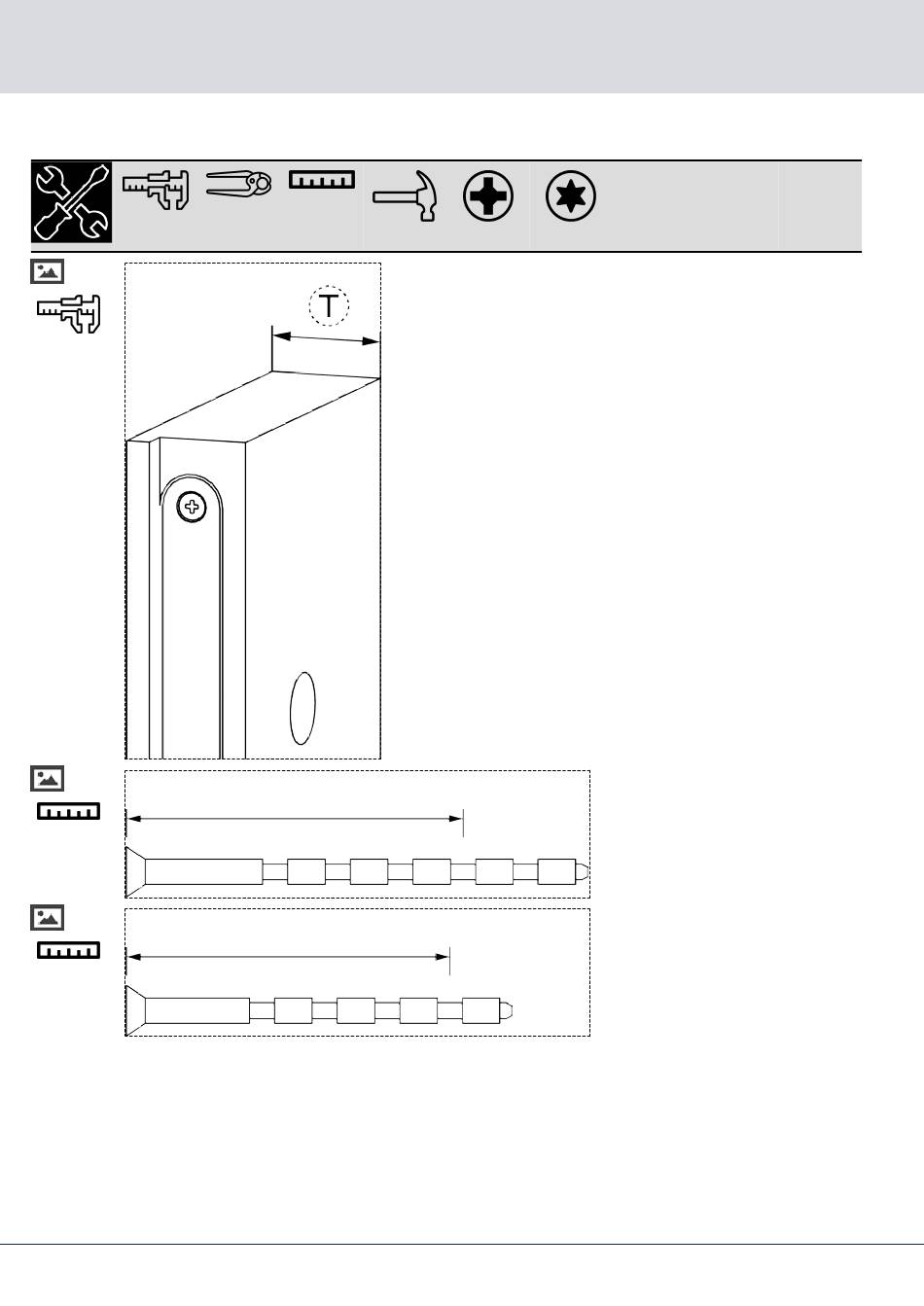

9. Installing the fitting
9. Installing the fitting
*S/M/L
17
18 *S/M/L
2× L1: door thickness + 10 mm (±3 mm)
19 *S/M/L
2× L2: door thickness + 3 mm (±3 mm)
10 / 80
Digital SmartHandle AX Scandinavian Oval
PH2 TX15
