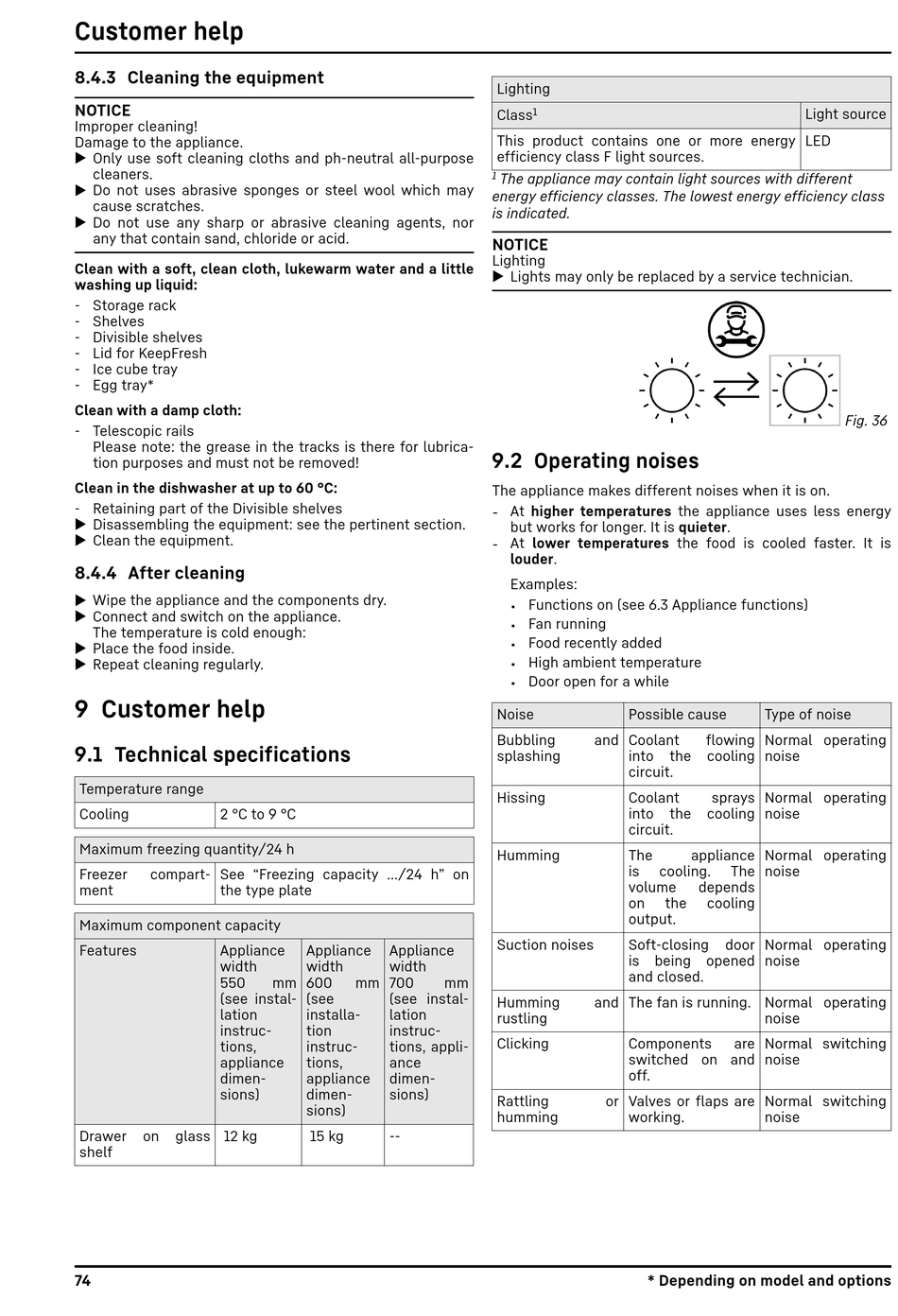

Customer Help; Cleaning The Equipment; After Cleaning; Technical Specifications - V-ZUG Cooler V200 Bedienungsanleitung

Customer help

8.4.3 Cleaning the equipment

NOTICE
Improper cleaning!
Damage to the appliance.
u Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u Do not uses abrasive sponges or steel wool which may
cause scratches.
u Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and a little
washing up liquid:
- Storage rack
- Shelves
- Divisible shelves
- Lid for KeepFresh
- Ice cube tray
- Egg tray*
Clean with a damp cloth:
- Telescopic rails
Please note: the grease in the tracks is there for lubrica‐
tion purposes and must not be removed!
Clean in the dishwasher at up to 60 °C:
- Retaining part of the Divisible shelves
u Disassembling the equipment: see the pertinent section.
u Clean the equipment.

8.4.4 After cleaning

u Wipe the appliance and the components dry.
u Connect and switch on the appliance.
The temperature is cold enough:
u Place the food inside.
u Repeat cleaning regularly.
9 Customer help

9.1 Technical specifications

Temperature range
Cooling 2 °C to 9 °C
Maximum freezing quantity/24 h
Freezer compart‐ See "Freezing capacity .../24 h" on
ment the type plate
Maximum component capacity
Features Appliance
width
550
(see instal‐
lation
instruc‐
tions,
appliance
dimen‐
sions)
Drawer on glass 12 kg
shelf
74
Appliance Appliance
width width
mm 600 mm 700
(see (see instal‐
installa‐ lation
tion instruc‐
instruc‐ tions, appli‐
tions, ance
appliance dimen‐
dimen‐ sions)
sions)
15 kg --
Lighting
Class 1
This product contains one or more energy
efficiency class F light sources.
1
The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency class
is indicated.
NOTICE
Lighting
u Lights may only be replaced by a service technician.

9.2 Operating noises

The appliance makes different noises when it is on.
At higher temperatures the appliance uses less energy
-
but works for longer. It is quieter.
At lower temperatures the food is cooled faster. It is
-
louder.
Examples:
Functions on (see 6.3 Appliance functions)
•
• Fan running
Food recently added
•
High ambient temperature
•
• Door open for a while
Noise
Bubbling and
splashing
Hissing
Humming
Suction noises
mm
Humming and
rustling
Clicking
Rattling or
humming
Possible cause Type of noise
Coolant flowing Normal operating
into the cooling noise
circuit.
Coolant sprays Normal operating
into the cooling noise
circuit.
The appliance Normal operating
is cooling. The noise
volume depends
on the cooling
output.
Soft-closing door Normal operating
is being opened noise
and closed.
The fan is running. Normal operating
noise
Components are Normal switching
switched on and noise
off.
Valves or flaps are Normal switching
working. noise
* Depending on model and options
Light source
LED
Fig. 36
