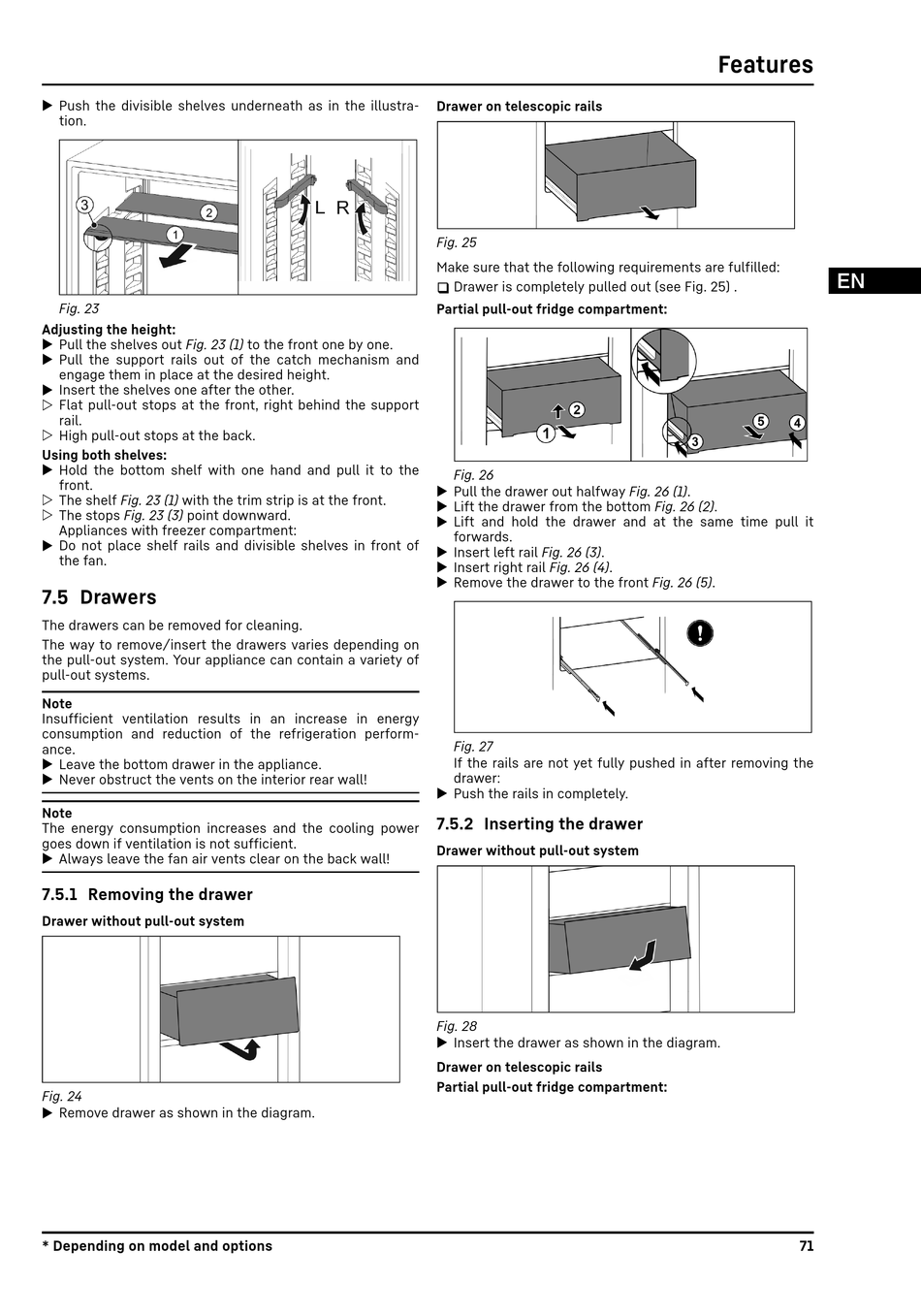

u Push the divisible shelves underneath as in the illustra‐
tion.
Fig. 23
Adjusting the height:
u Pull the shelves out Fig. 23 (1) to the front one by one.
u Pull the support rails out of the catch mechanism and
engage them in place at the desired height.
u Insert the shelves one after the other.
w Flat pull-out stops at the front, right behind the support
rail.
w High pull-out stops at the back.
Using both shelves:
u Hold the bottom shelf with one hand and pull it to the
front.
w The shelf Fig. 23 (1) with the trim strip is at the front.
w The stops Fig. 23 (3) point downward.
Appliances with freezer compartment:
u Do not place shelf rails and divisible shelves in front of
the fan.
7.5 Drawers
The drawers can be removed for cleaning.
The way to remove/insert the drawers varies depending on
the pull-out system. Your appliance can contain a variety of
pull-out systems.
Note
Insufficient ventilation results in an increase in energy
consumption and reduction of the refrigeration perform‐
ance.
u Leave the bottom drawer in the appliance.
u Never obstruct the vents on the interior rear wall!
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
u Always leave the fan air vents clear on the back wall!
7.5.1 Removing the drawer
Drawer without pull-out system
Fig. 24
u Remove drawer as shown in the diagram.
* Depending on model and options
Drawer on telescopic rails
Fig. 25
Make sure that the following requirements are fulfilled:
Drawer is completely pulled out (see Fig. 25) .
q
Partial pull-out fridge compartment:
Fig. 26
u Pull the drawer out halfway Fig. 26 (1).
u Lift the drawer from the bottom Fig. 26 (2).
u Lift and hold the drawer and at the same time pull it
forwards.
u Insert left rail Fig. 26 (3).
u Insert right rail Fig. 26 (4).
u Remove the drawer to the front Fig. 26 (5).
Fig. 27
If the rails are not yet fully pushed in after removing the
drawer:
u Push the rails in completely.
7.5.2 Inserting the drawer
Drawer without pull-out system
Fig. 28
u Insert the drawer as shown in the diagram.
Drawer on telescopic rails
Partial pull-out fridge compartment:
