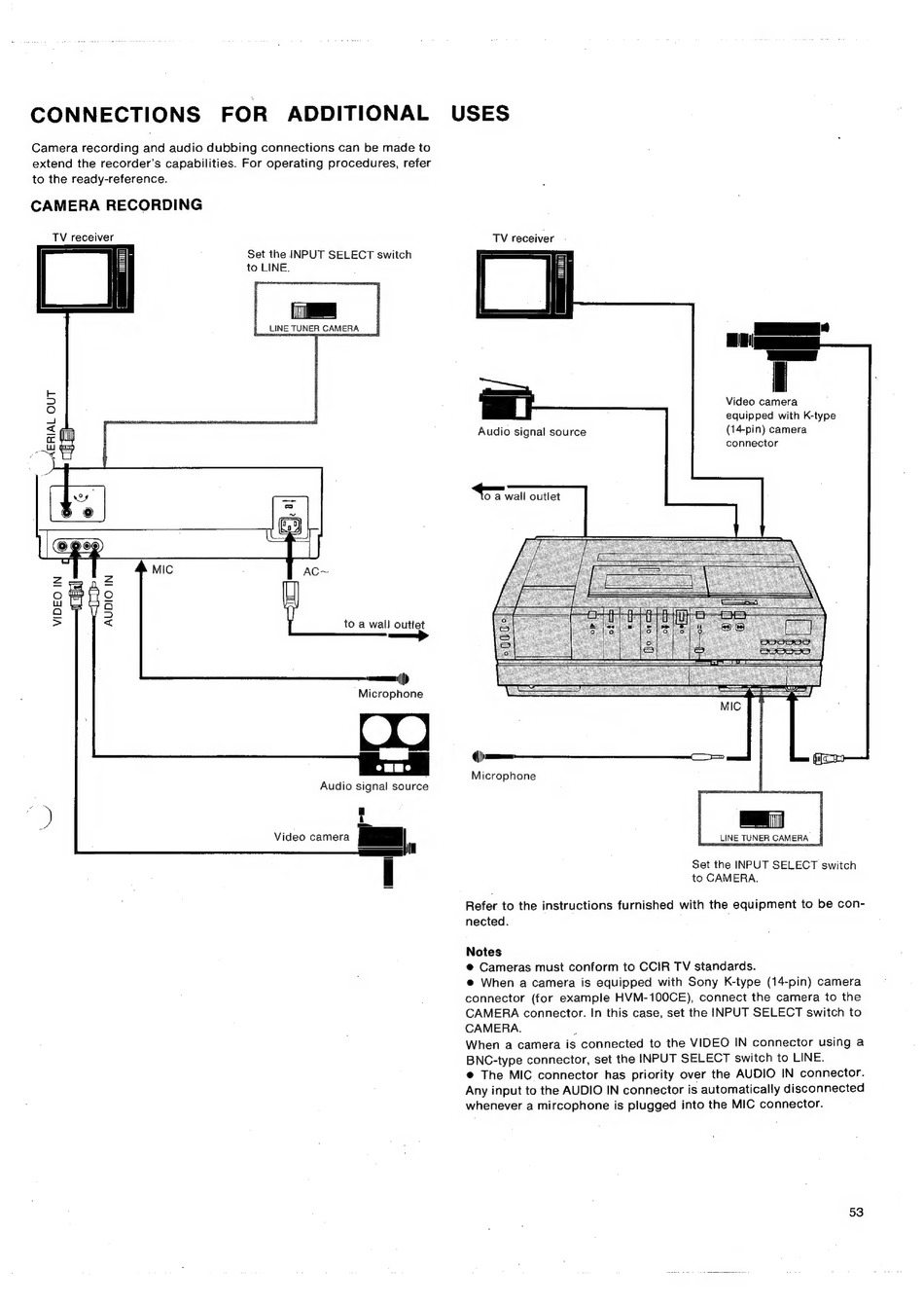

CONNECTIONS FOR ADDITIONAL USES
Camera recording and audio dubbing connections can be made to
extend the recorder's capabilities. For operating procedures, refer
to the ready-reference.
CAMERA RECORDING
TV receiver
Set the INPUT SELECT switch
to LINE.
LINE TUNER CAMERA
VIDEO IN AUDIO IN
to a wall outlet
n>
vem)
Microphone
Audio signal source
Video camera
TV receiver
Video camera
equipped with K-type
(14-pin) camera
connector
Audio signal source
oO a wall outlet
Microphone
LINE TUNER CAMERA
Set the INPUT SELECT switch
to CAMERA.
Refer to the instructions furnished with the equipment to be con-
nected.
Notes
@ Cameras must conform to CCIR TV standards.
@ When a camera is equipped with Sony K-type (14-pin) camera
connector (for example HVM-100CE), connect the camera to the
CAMERA connector. In this case, set the INPUT SELECT switch to
CAMERA. .
