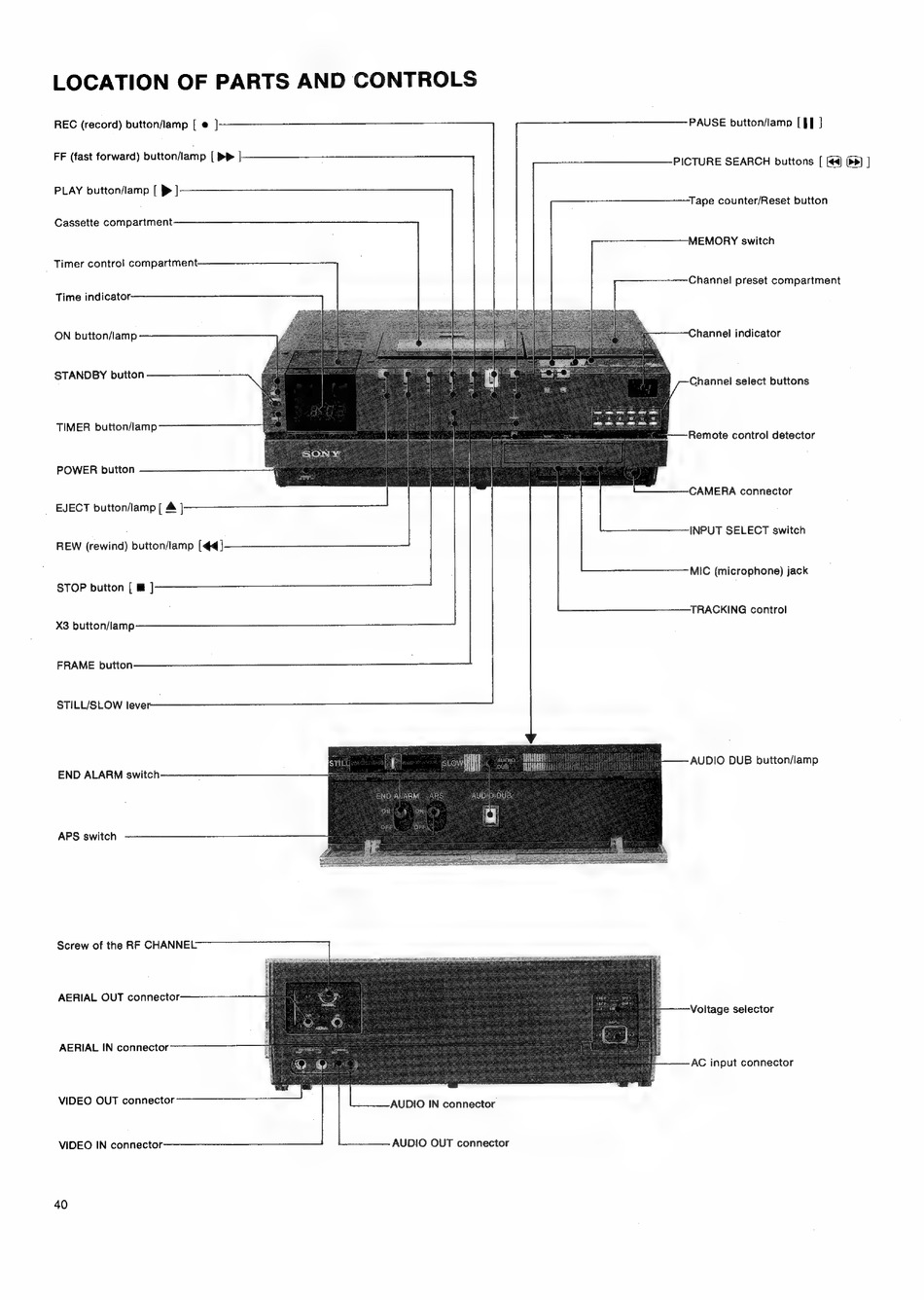

REC (record) button/lamp [ e ] PAUSE button/lamp [| ]
PLAY button/lamp [ > ]
Tape counter/Reset button
Cassette compartment
MEMORY switch
Timer control compartment
Channel preset compartment
Time indicator
ON button/lamp Channel indicator
STANDBY button : € en zy
aa Channel select buttons
TIMER button/lamp
Remote control detector
POWER button
CAMERA connector
EJECT button/lamp [ |
INPUT SELECT switch
REW (rewind) button/lamp [44]
MIC (microphone) jack
STOP button [ @ ]
TRACKING control
X3 button/lamp
FRAME button
STILL/SLOW lever
sow) é He aaa AUDIO DUB button/lamp
END ALARM switch
eel
7
oe
END ALARM APS AUDIO DUB
APS switch
Screw of the RF CHANNEL
AERIAL OUT connector
Voltage selector
AERIAL IN connector
AC input connector
VIDEO OUT connector AUDIO IN connector
VIDEO IN connector AUDIO OUT connector
