ProMinent gamma/ X Schnellstartanleitung Seite 6

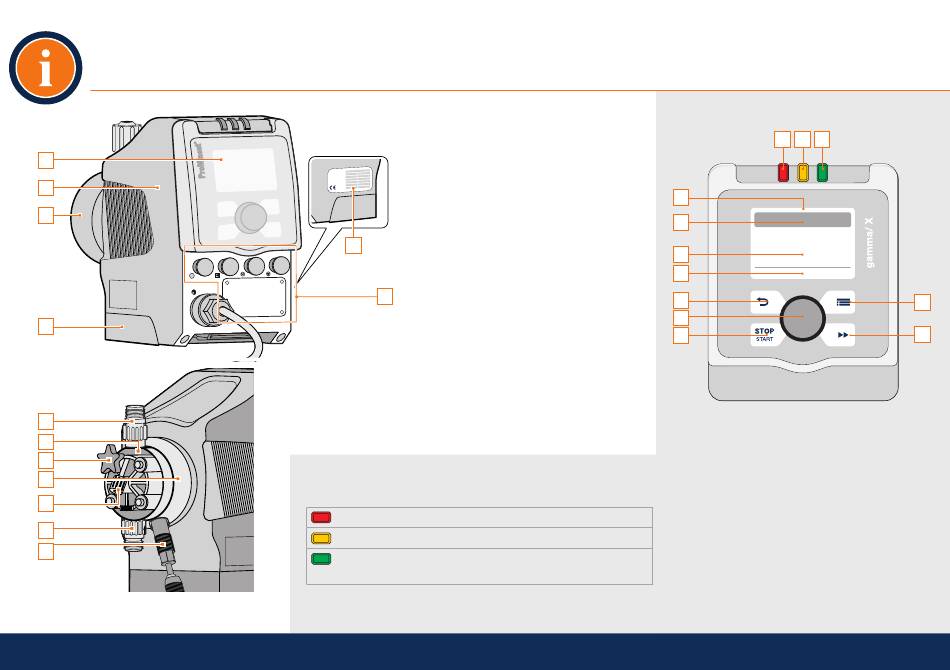

Overview
1
3
4
6
7
8
9
10
11
12
13
Note: The appearance may differ
depending on the liquid end.
EN 6
1 Control unit
(with cover flap)
2 Sockets and relays
3 Drive unit
Typ
SERNR./TN .
EL.Anschl uss
Dosierleis tung
4 Liquid end
5 Nameplate
6
Mounting plate
5
7 Discharge valve
8 Dosing head
2
9 Bleed valve
10 Backplate
11 Bypass hose sleeve
(dependent on version)
12 Suction valve
13 Diaphragm rupture indicator
(optional)
LED indicators
Fault indicator [10]
Warning indicator [11]
Operating indicator [12]
1
2
3
4
5
6
7
Fault message
Warning message
Pump is ready for operation
flashes with each stroke
Control unit
10 11 12
XX.X
L/h
XXXX cp
1 LC Display
2 Status bar
3 Main display
4 Secondary display
5
[Back] key
6 Clickwheel
7 [STOP/START] key
8 [Menu] key
9 [Priming] key
8
9
