ProMinent gamma/ X Schnellstartanleitung Seite 10

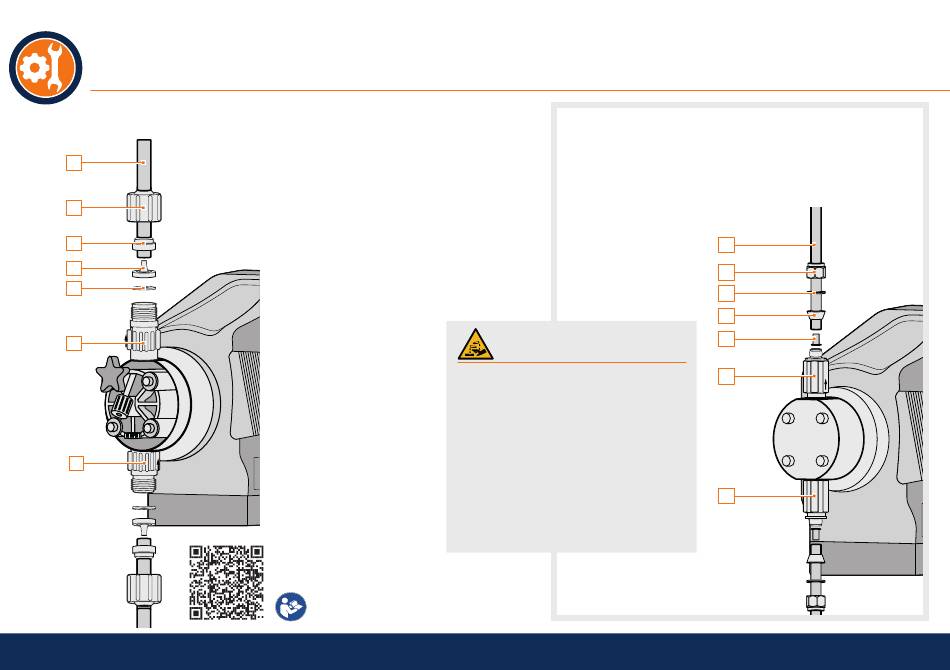

Install hydraulically
1
2
3
4
5
6
7
EN 10
Version plastic
1 Hose*
2 Union nut
3 Clamping ring
4 Tube nozzle
5 O-ring or flat seal
6
Discharge valve
7 Suction valve
* pressure side: hard hose
suction side: soft hose
For detailed information on
valve variations, please refer
to the operating instructions.
Version stainless steel
1 Pipe/hose
2 Union nut
3 Rear clamp ring
4 Front clamp ring
5 Tube nozzle
(only with hose)
6 Discharge valve
7 Suction valve
CAUTION!
Danger from dosing medium
splashing around
Improperly installed hose lines can
come loose.
Only use PE, PTFE hose lines or
„
stainless steel pipes.
When using PE or PTFE, insert
„
a stainless steel support sleeve
into the hose assembly.
1
2
3
4
5
6
7
