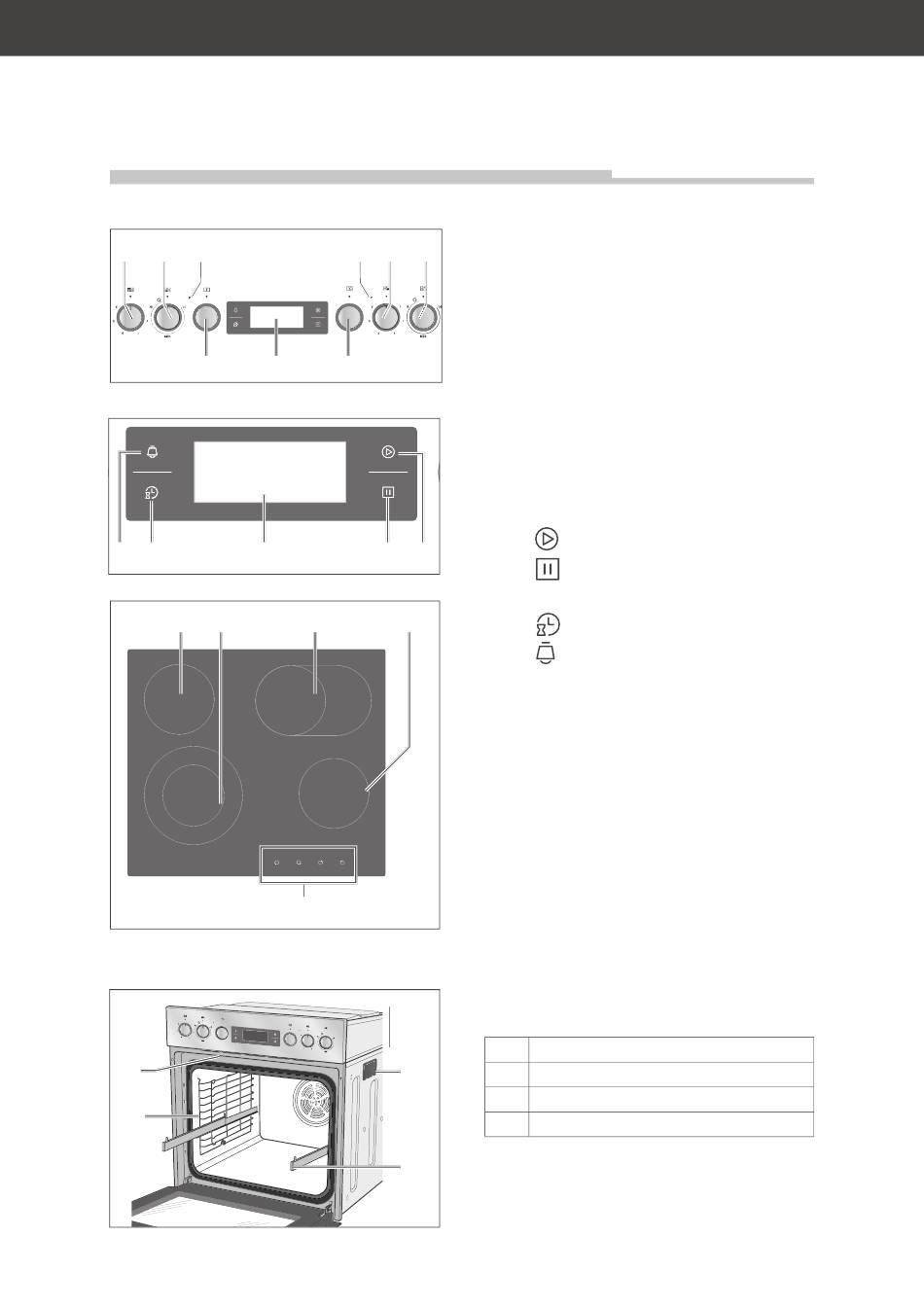

Operational controls and appliance parts

Operational controls and appliance parts
(10) (11) (12)
(22) (19)
(21) (20) (19)
(23) (24)
(31)
(30)
(13) (14) (15)
(16)
(18) (17)
(25) (26)
(27)
(28)
(29)

Control panel

(10) Temperature controller for back left
cooking zone
(11) Temperature controller for front left
cooking zone
(12) Indicator light for left cooking zones
(13) Indicator light for right cooking zones
(14) Temperature controller for front right
cooking zone
(15) Temperature controller for back right
cooking zone
(16) Temperature controller for the oven
(17)
Start
(18)
Pause/End
(19) Display/Clock
(20)
Setting the time
(21)
Countdown timer
(22) Function dial for the oven
Hob
(23) Normal cooking zone, back left, 16.0
cm
(24) Dual cooking zone, front left,
14.0/22.5 cm
(25) Casserole zone, back right,
16.0/16.0 × 26.5 cm
(26) Normal cooking zone, front right,
16.0 cm
(27) Four residual heat indicators
Oven
(28) Carry handles on each side
(29) Telescopic oven rails
(30) Baking tray guides
(31) Extraction hood (ventilation)
