4.

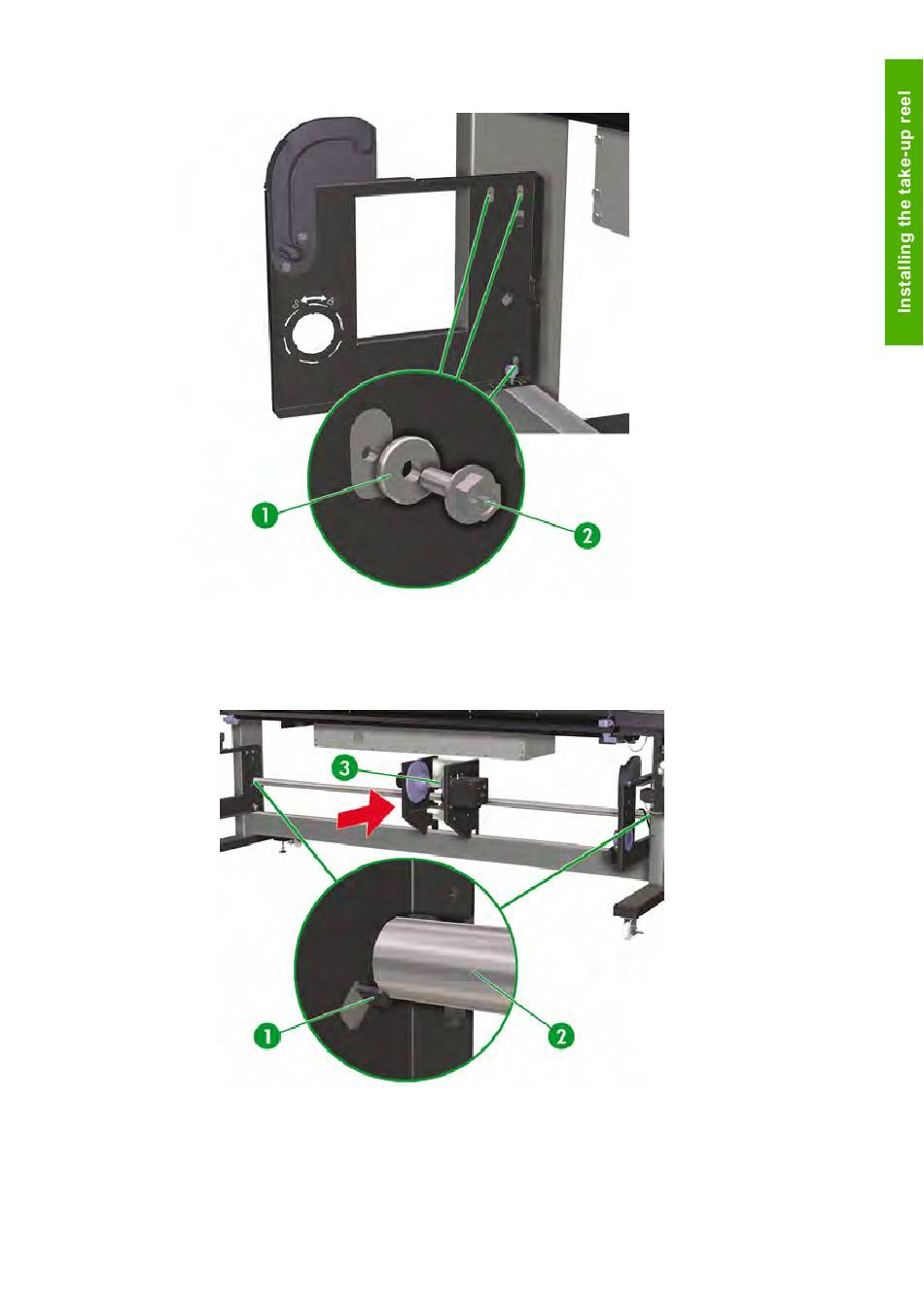

Install the take-up reel assembly as follows:
a.
Place the take-up reel assembly (3) onto the printer stand crossbar.
b.
Rest the ends of the support bar (2) on the ledges (1) on each end plate.
5.
Install the holding bracket (1) at each end to secure the support bar as follows:
ENWW
3
