HP DesignJet 500 and 800 Series Printers
D/A1-size Stand and Paper Bin—
Assembly Instructions
Contents of This Poster
1. Assemble the Stand (page 1)
2. Attach the Stand to the Printer (page 2)
3. Assemble the Paper Bin (page 2)
The information on this poster applies to the following
HP products:
• Stand and Paper Bin accessory for the D/A1-size
models–part numbers C7781A and C7782A.
If you are installing this accessory after the main
installation has been completed, use these instructions.
If you are installing it at the same time as the main
installation, read the appropriate stages of the Assembly
and Set-Up Instructions Poster for the printer.
1.
Assemble the Stand
1–Separate the stand from the paper bin.
aside the cardboard tray inside which separates the
components of the paper bin from those of the printer's
stand. This gives you access to the stand components.
4–Position the horizontal foot brace onto the
feet.
Push the foot brace into the slot in each foot.
2. Attach the Stand to the Printer
1–Check that all the stand screws are tight.
If you can't tighten all the screws properly, try
unscrewing one or two so that the legs, feet and cross
braces are properly aligned, and then retighten them.
Read these instructions carefully...
and complete each stage before you start the next.
What You Will Need to Do the Job
• Because some of the components of the printer are
bulky, you will need 2 or 3 people to lift them. See
the descriptions that follow for details—a symbol like
this is used:
Set
2–Attach the legs to the outside of the cross
brace.
Note that the stand is assembled upside-down.
5–Position the feet on the legs assembly.
2–Ensure all four brakes are applied, as shown.
Page 1
Copyright Hewlett-Packard
Hewlett-Packard Company
Company 2000
Inkjet Commercial Division
Part Number C7769-90161
First Edition
08190 Sant Cugat del Vallès
September 2000
Printed in Europe

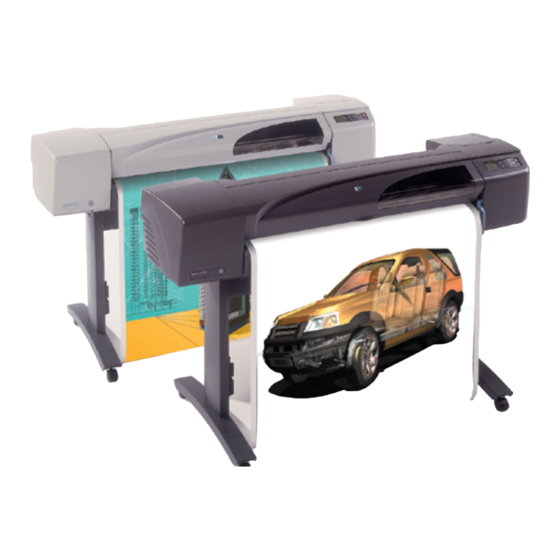

The D/A1-size printer
with its stand and paper bin
attached.
3–Insert eight screws into the legs.
Use the
smaller screws with washers.
6–Secure the feet to the legs with ten screws.
Again, use the smaller screws with washers.
3–Turn the stand the correct way up.
Avda. Graells, 501
Barcelona, Spain
