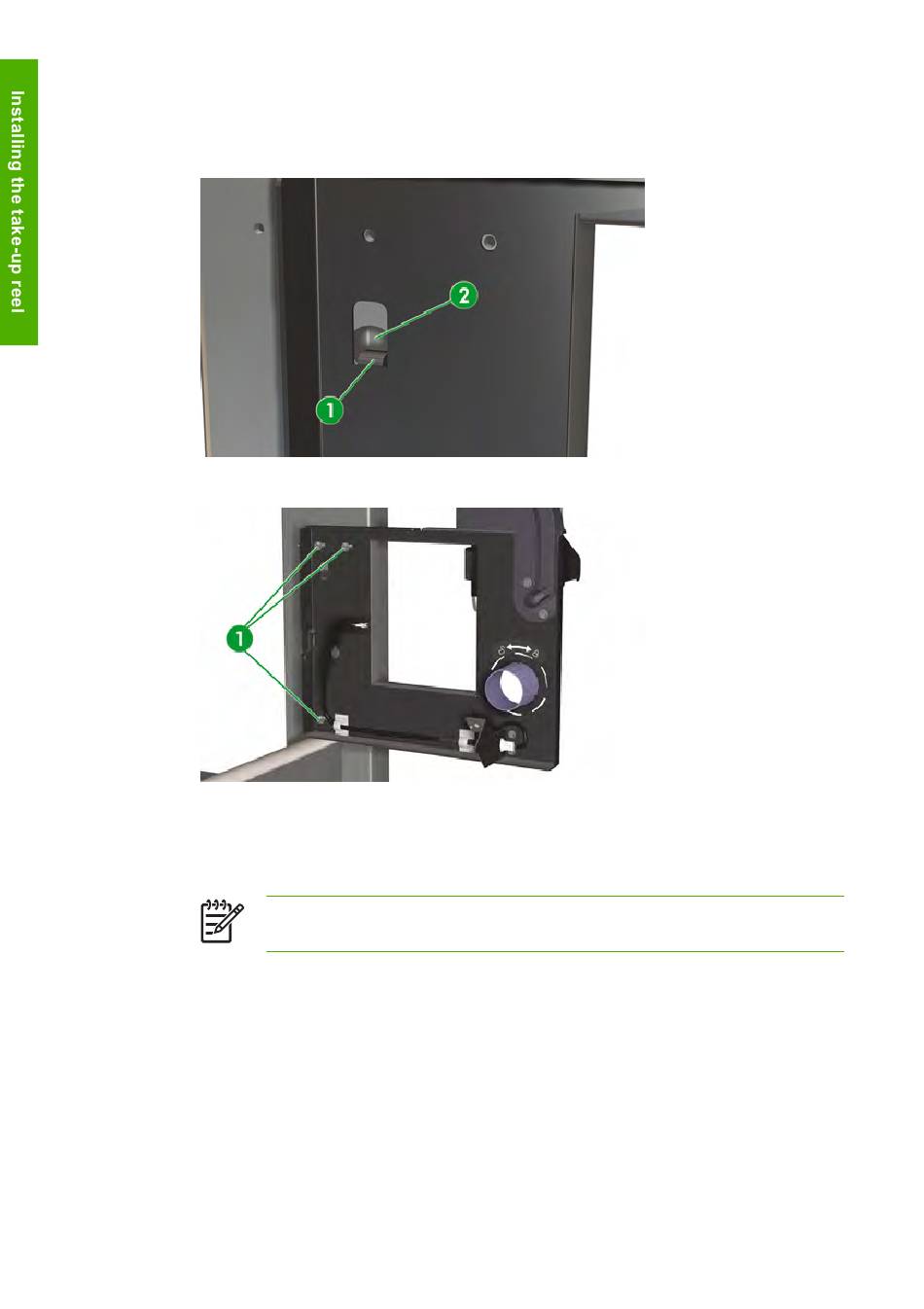

2. Install the right end plate as follows:
a. Insert the lip (1) on the right end plate into the slot (2) on the right leg on the printer stand.
b. Install three screws (1) to fix the right end plate to the right printer leg stand.
3. Install the left end plate as follows:
a. Insert the lip on the left end plate into the slot on the left leg on the printer stand.
b. Install three washers (1) and screws (2) to fix the left end plate to the left printer leg stand.
2 Installing the take-up reel
NOTE The left end plate allows for vertical movement so that the take-up reel height
can be adjusted even with the screws fully inserted.
