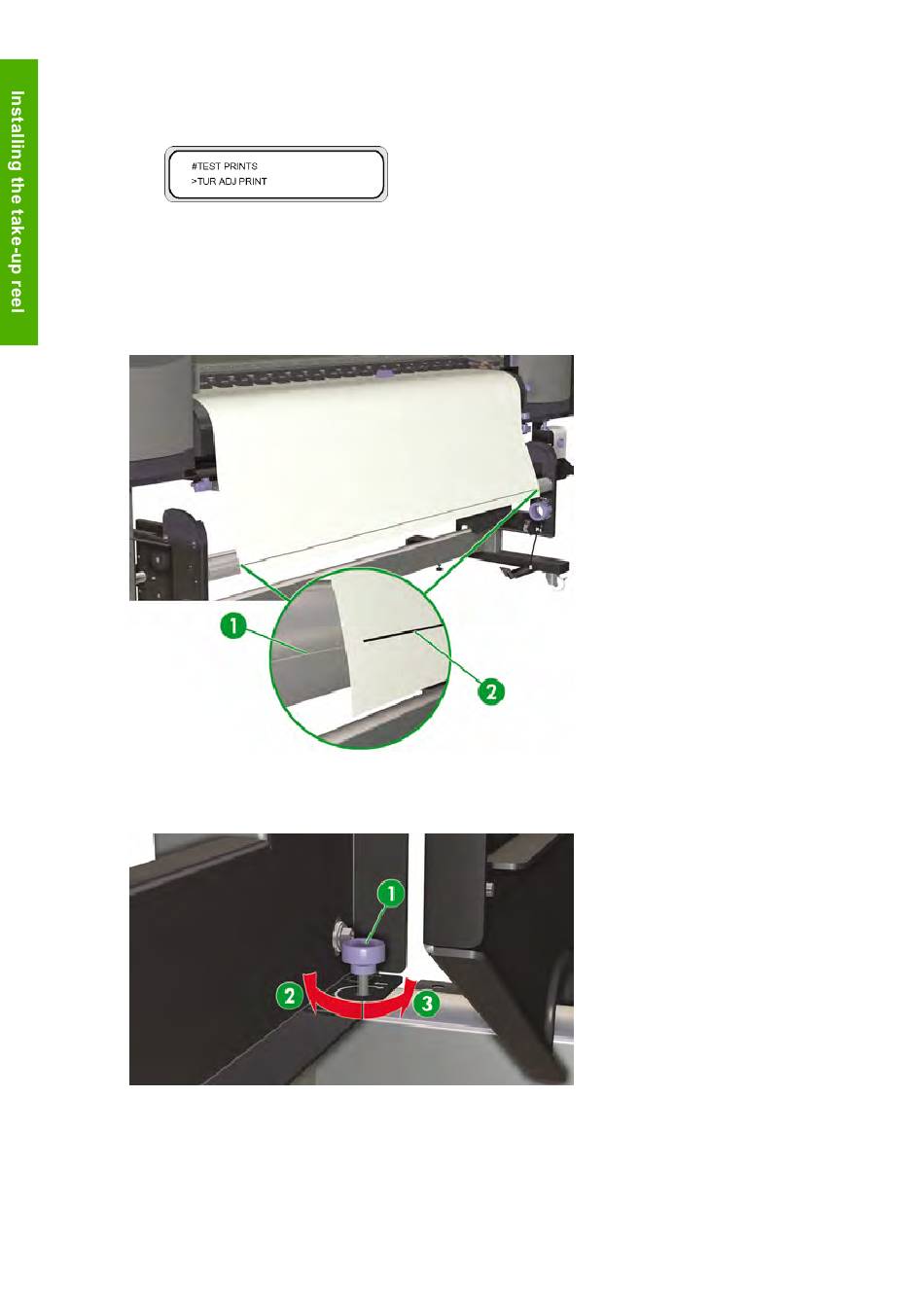

4. In the TEST PRINTS menu scroll to the TUR ADJ PRINToption and press the
5. Press the
The printer automatically feeds the media through the printer so that the pattern reaches the take-up reel
tension bar.
If the pattern (2) on the right and left edge of the media is aligned with the same groove (1) on the tension
bar, no height adjustment is required.
If the pattern on the left edge of the media is not aligned with the same groove as on the right edge, use
the take-up reel height screw (1) to adjust the take-up reel height up (2) or down (3).
8 Installing the take-up reel
ENTER key to start printing the pattern.
ENTER key.
