Installing the take-up reel
This Installation Guide contains information necessary to install and set up the HP Designjet 8000s Take-
up Reel Kit (Model Q6681A). For information about using the take-up reel, refer to the HP Designjet 8000s
Printer User's Guide.
Two people will be required to install the take-up reel. Make sure there is enough space to access the front
and the rear of the printer. All mechanical installation takes place from the front of the printer and electrical
connections are made at the rear.
The tool you need to install the take-up reel is included in the box, and consists of a cross-head (Phillips)
screwdriver.
To install the take-up reel:

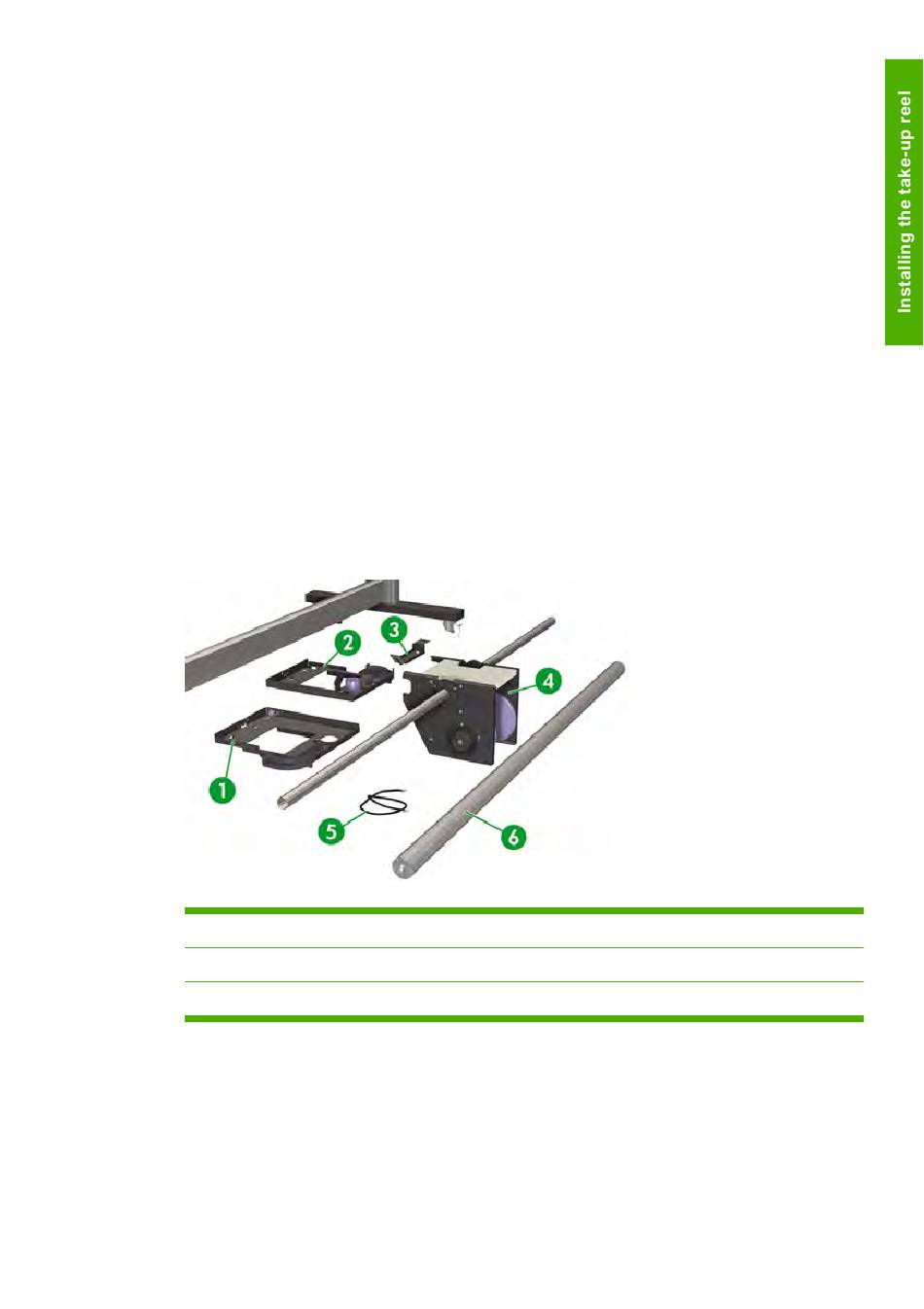

1. Open the box and remove all parts.
1. Left end plate.
2. Right end plate.
3. Media sensor assembly.
ENWW
4. Take-up reel assembly.
5. Motor cable.
6. Tension bar.
