9.Technical characteristics
Power supply
Protections
Display
Air switch
Piezo switch
Pump output HPOW SWIM
Pump output SWIM
Signaling
Main alarm output (ALARM)
Maximum current setting
Minimum current setting
Timer setting
Maximum terminal cross-section
IP / Temperature
Dimensions (AxBxC)

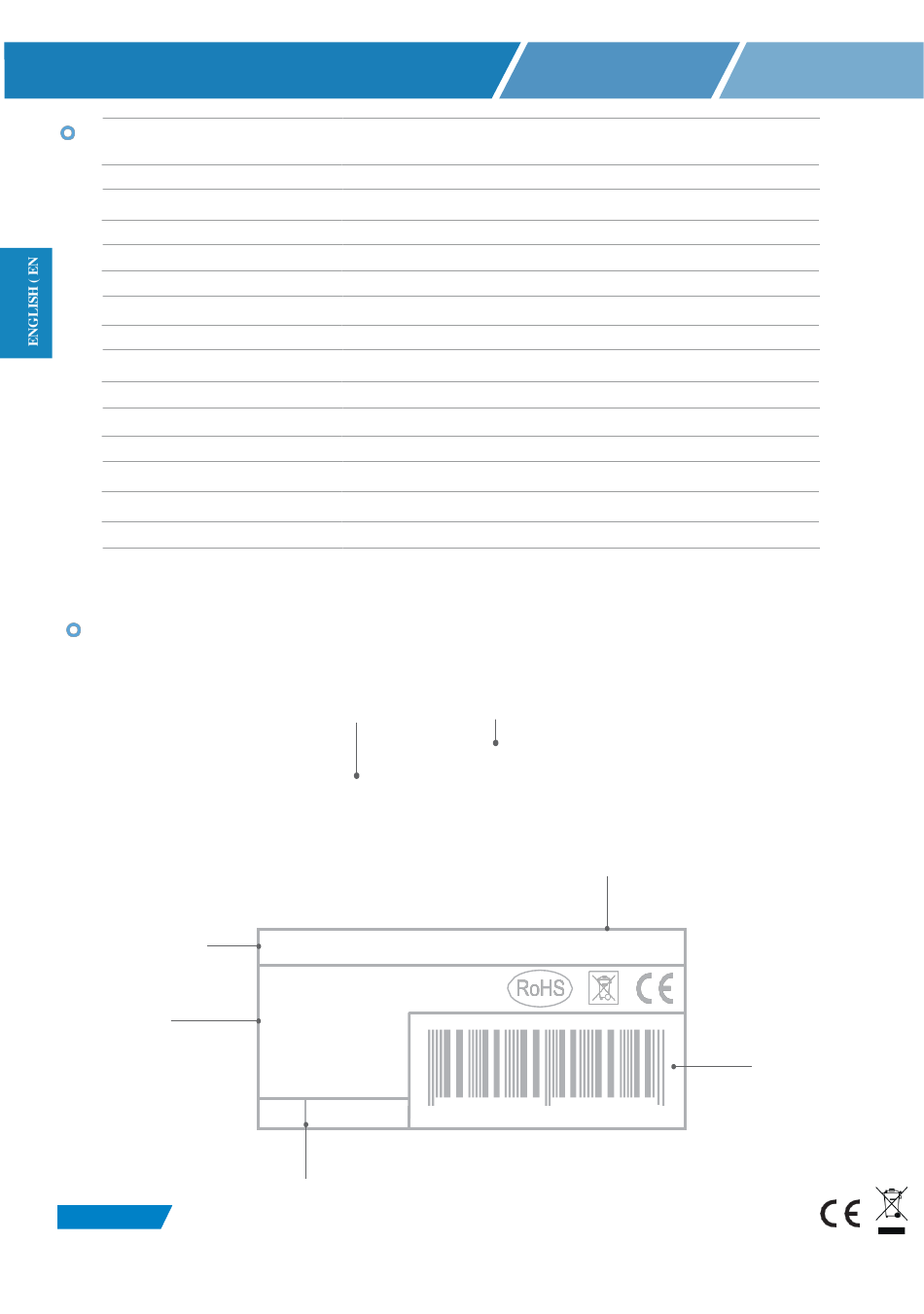

Product order label
Ref.
Electric
connection
Pág. 9
230Vac 1/3-ph or 400Vac 3-ph (depending on model)
- 50/60Hz
Overload, Underload, Phase loss, Excessive starting frequency
4-digit LED
For connecting tube with internal Ø 2,.5mm
5Vdc, N.O. (pulse)
16A MAX
12A MAX
Overload, Underload, Alarm, Pump run, Timer
230 or 400Vac, 5A maximum
Auto - 0.6...40A (trip in 7 s)
OFF - 0.5...40A (trip in 4 s with 20 s starting delay)
OFF - 1'...240'
4mm² (power) / 2,5mm² (control)
IP65 / -10º...+55ºC
235x245x110 ( HPOW SWIM ) , 70X53X91( TPM SWIM )
HPOW SWIM 230
HPOW SWIM:
Model name
HPOW SWIM
230
HPOW SWIM MODULAR
PANEL 230VAC - 16A
0 0000000000000
S/N
338390003
Serial number
230 / 400: Power supply
Product code
1000xxxx
00000 000000 0
Made in EU
Barcode
