Step 3:
From a typical pattern as per fig. 12 now: correct
†
parallel misalignment (Offset) by adjusting the
moveable pulley or machine axially. Move one of the
pulleys on its shaft (as per fig. 13) until the laser
†
lines exactly match the same centered reference
lines (as per
fig. 14).
†

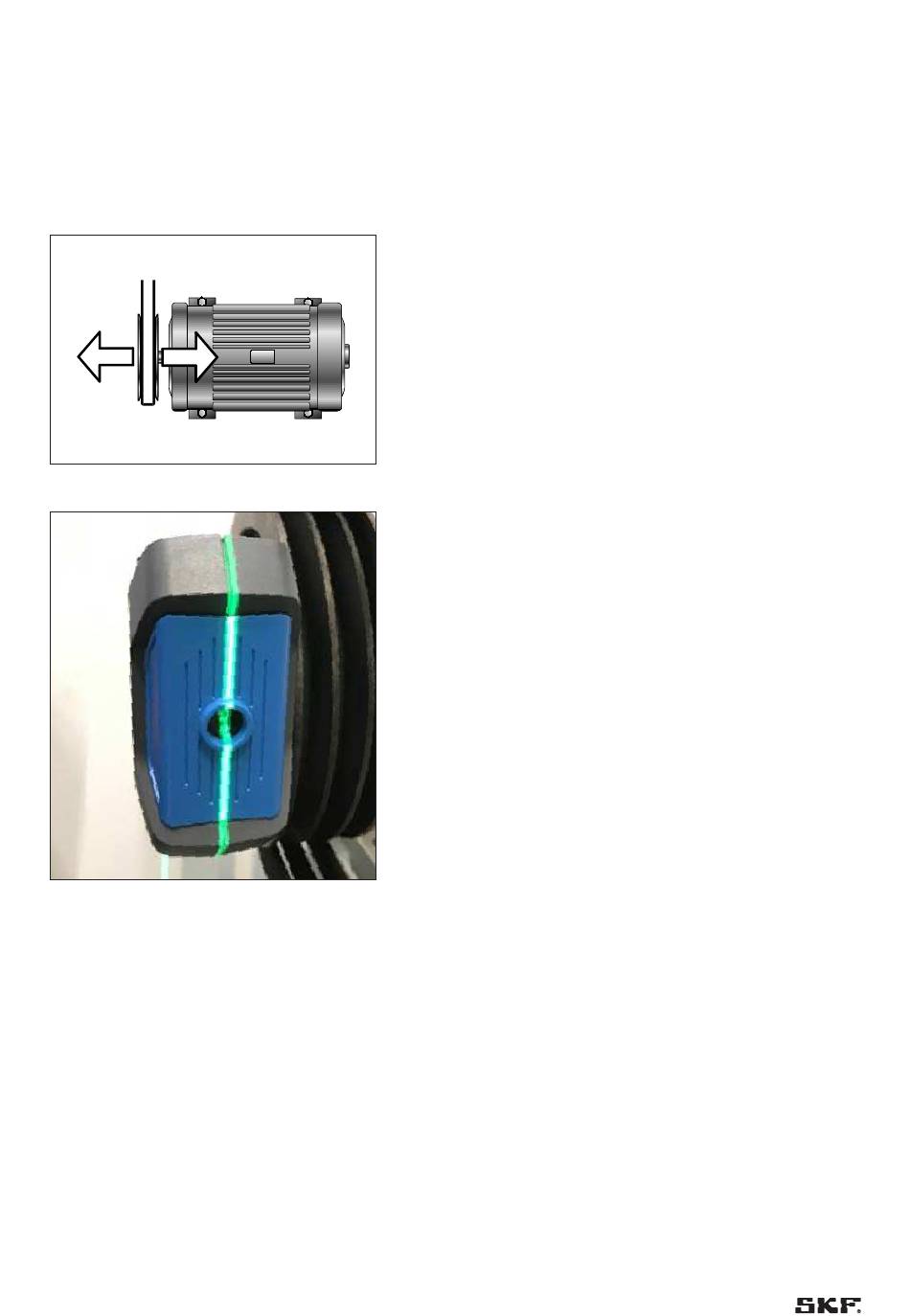

Fig.13 – Parallel alignment
Fig.14 – Pulley perfectly aligned
