Step 1:
From a typical pattern as per
fig. 8:
†
correct vertical angle misalignment by shimming the
moveable machine using stainless steel shims such
as SKF TMAS shims. Place shims beneath the
front or rear feet of the moveable machine
(as per fig. 9) until both laser lines are parallel to
†
their respective reference lines (as per
fig. 10).
†

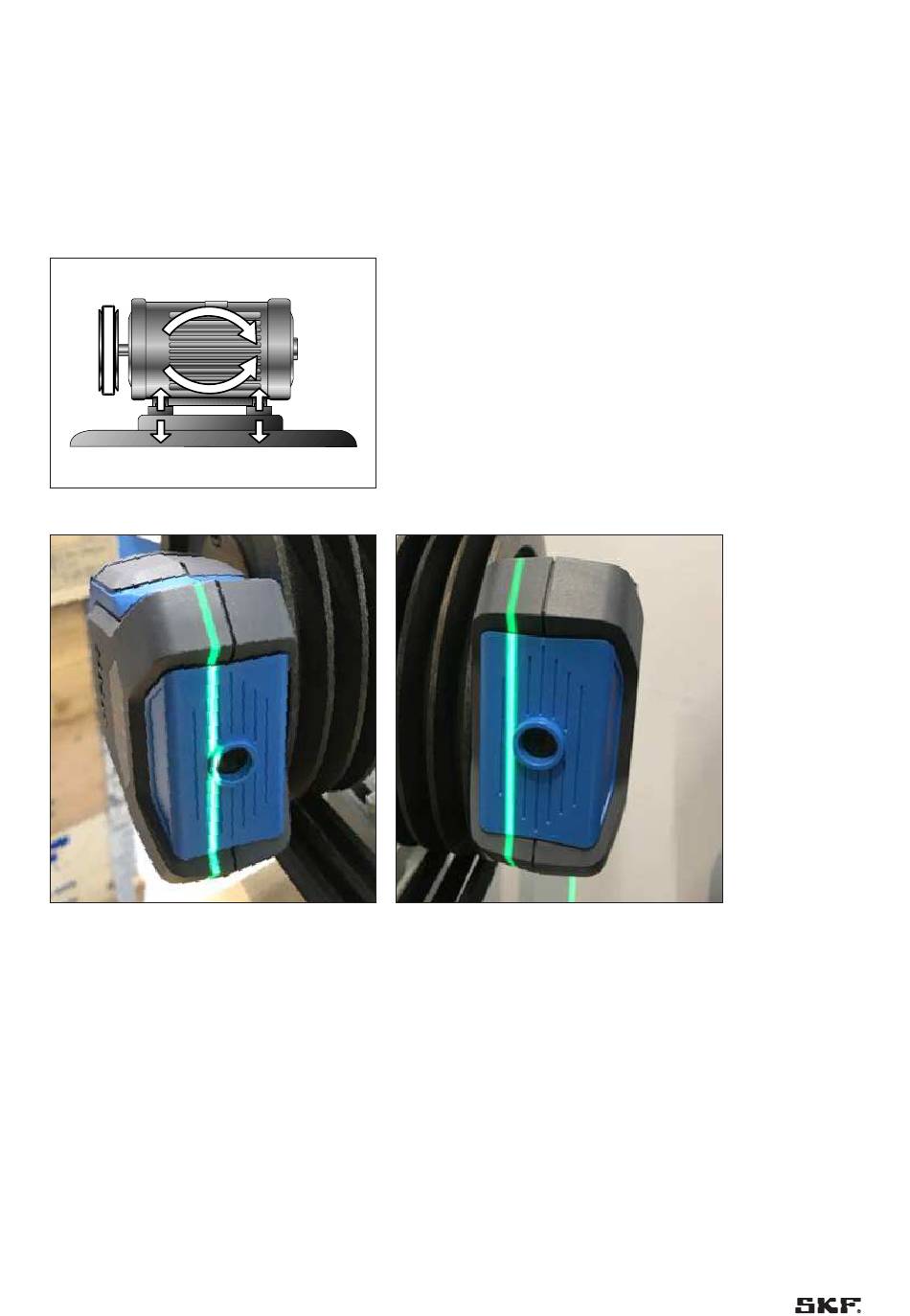

Fig.9 – Vertical angle alignment
Fig.10 – Pulleys with combined horizontal angle and parallel misalignments:
