7. Correcting misalignment

Display of vertical angle misalignment
Display of parallel misalignment
Display of correct alignment

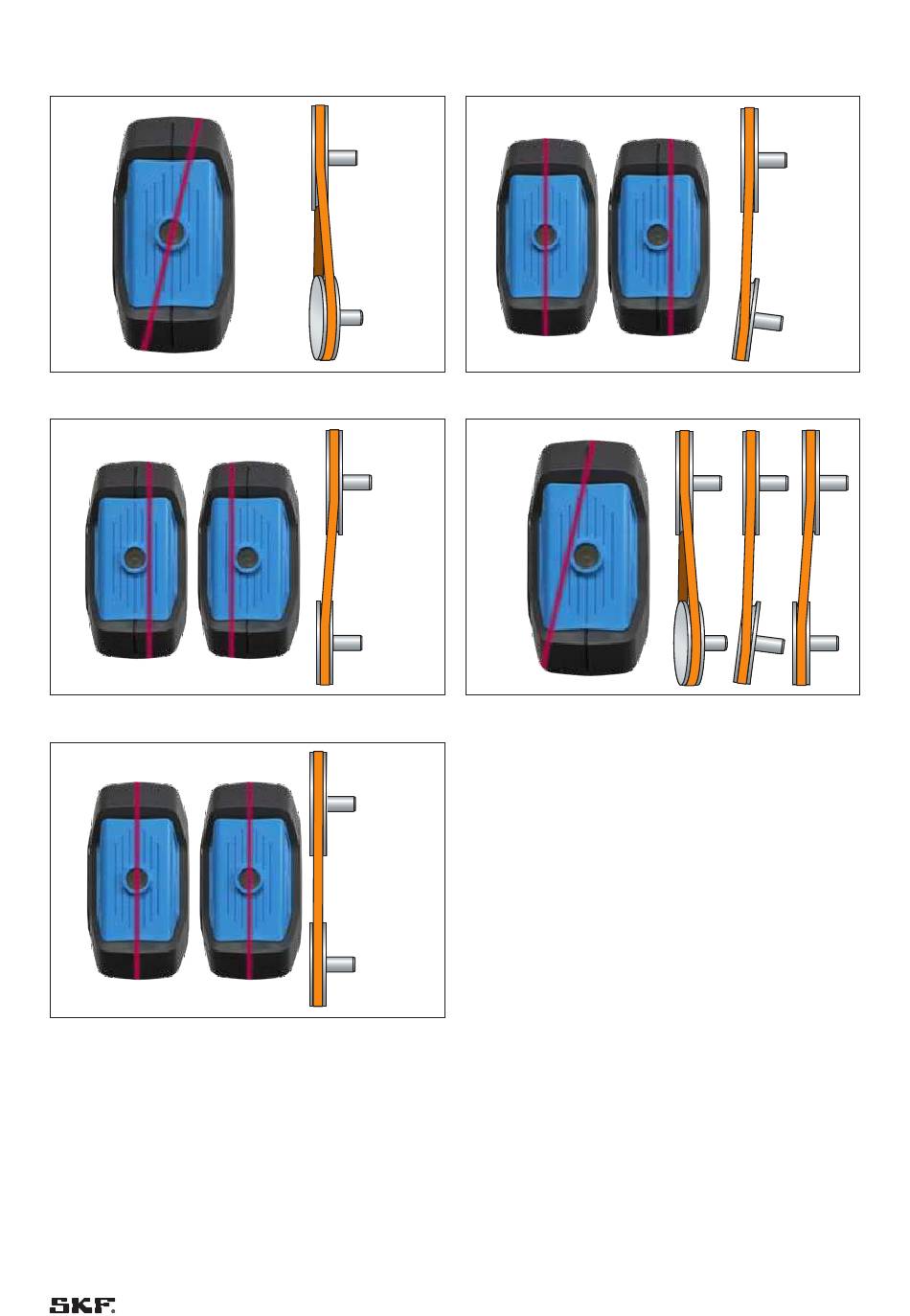

Fig.4 – Correction misalignment using TKBA 21 as
an example (laser lines in green are for TKBA 31)
Display of horizontal angle misalignment
Display of all three misalignments combined
