Step 2:
From a typical pattern as per fig. 10 now, correct
†
horizontal angle misalignment by adjusting the
moveable machine laterally. Move the machine
(as per fig. 11 until the laser lines are
†
symmetrically positioned in relation to the reference
lines (as per
fig. 12).
†

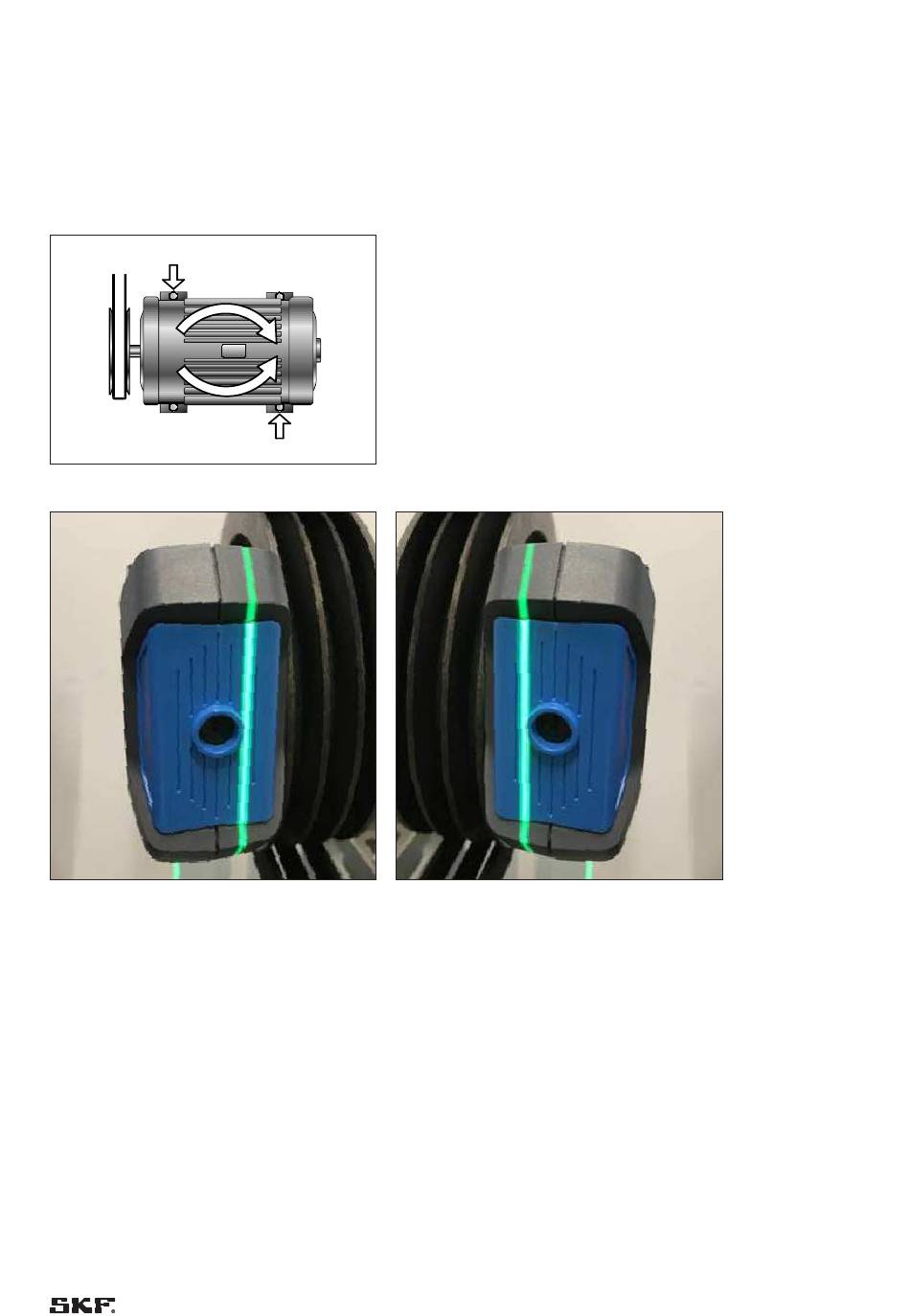

Fig.11 – Horizontal angle alignment
Fig.12 – Pulley with parallel misalignment
